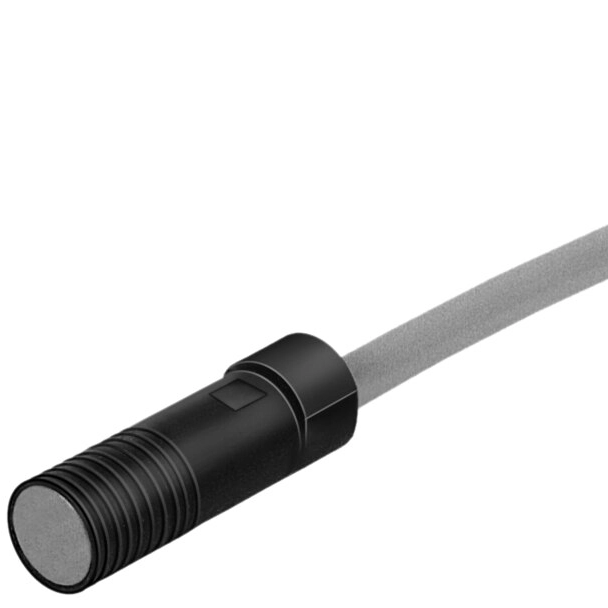

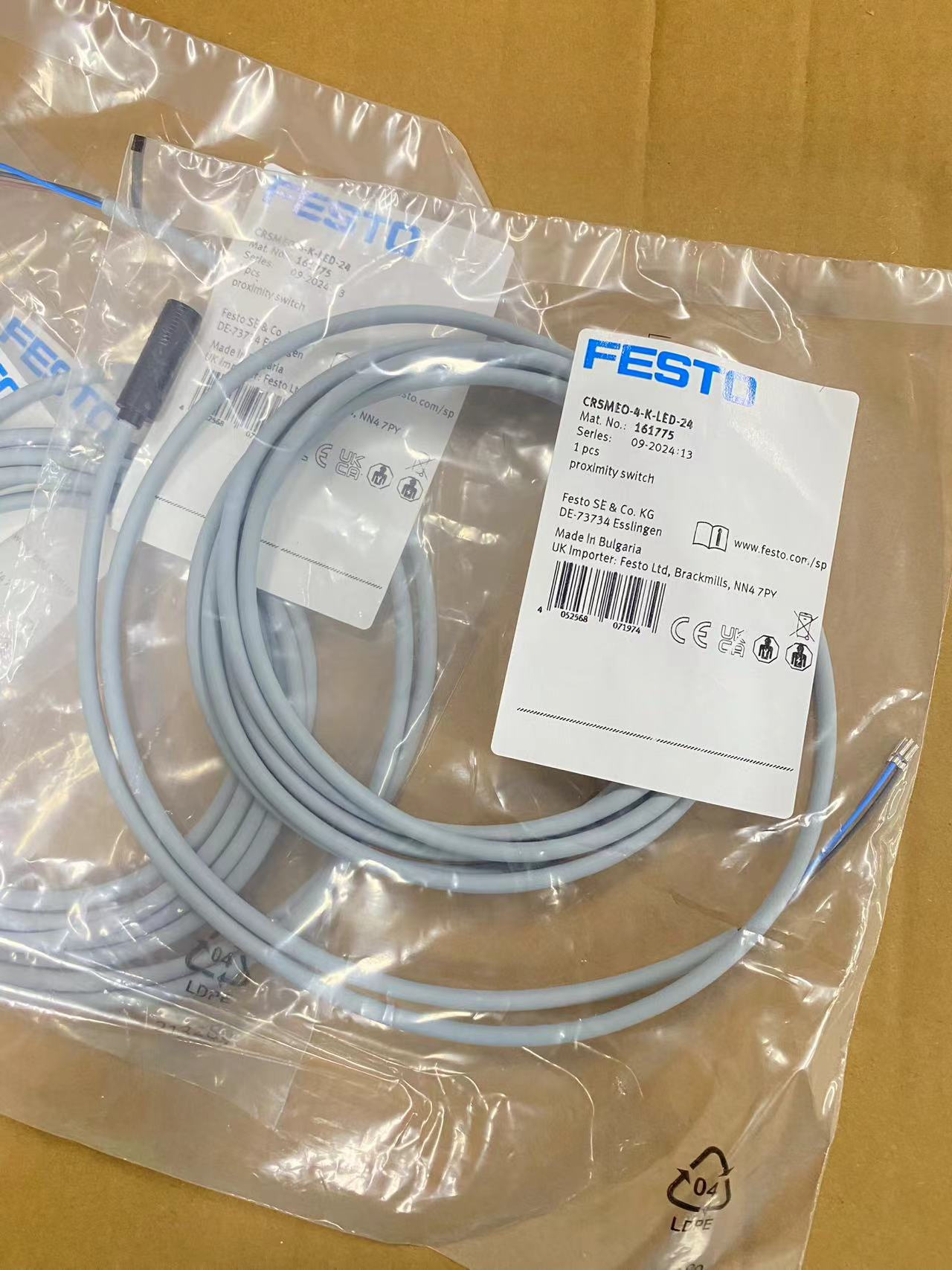

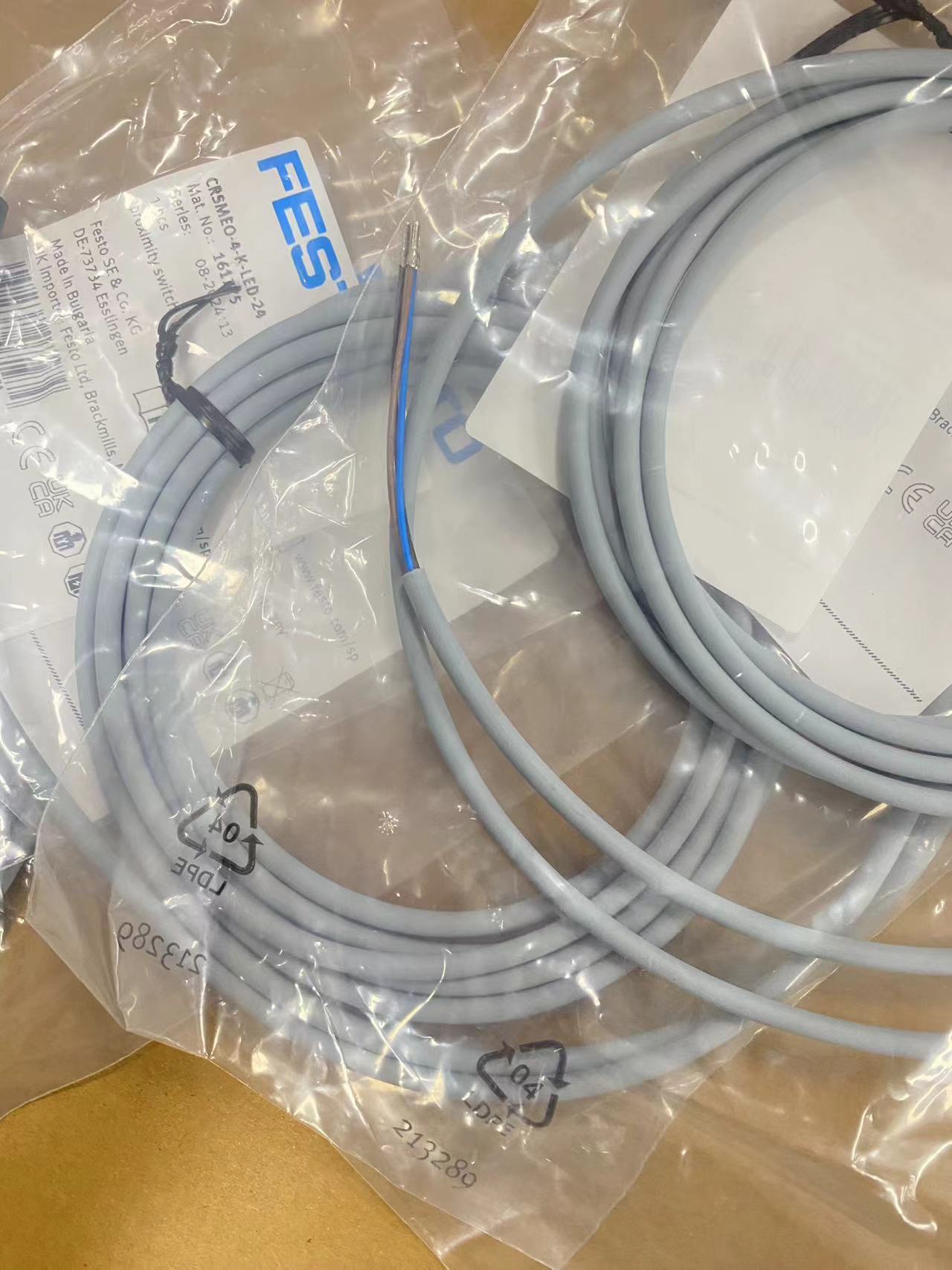

161775 Proximity Switch Crsmeo-4-K-LED-24 Original Connection Wire From Germany

Product specifications and models are not all uploaded, if necessary, you can contact the online personnel.  Look forward to hearing from you  thank you.

CRSMEO-4-K-LED-24

161775

Technical parameters

• DesignRound

• Symbol00991145

• ApprovalRCM trademark

• CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive

• UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions

• Note on materialsRoHS-compliant

• Measured variablePosition

• Measuring principleMagnetic reed

• Ambient temperature-20 °C ... 60 °C

• Repetition accuracy0.2 mm

• Switching outputContacting, bipolar

• Switching element functionN/O contact

• Switch-on time≤0.5 ms

• Switch-off time0.03 ms

• Max. switching frequency800 Hz

• Max. output current500 mA

• Max. switching capacity DC10 W

• Inductive protective circuitAdapted to MZ, MY, ME coils

• Short circuit current ratingno

• Rated operational voltage DC24 V

• Operational voltage range DC12 V ... 30 V

• Reverse polarity protectionno

• Electrical connection 1, connection typeCable

• Electrical connection 1, connector systemOpen end

• Electrical connection 1, number of connections/cores3

• Connection outlet orientationIn-line

• Cable length2.5 m

• Cable sheath colourGrey

• Material cable sheathTPE-O

• Type of mountingWith accessories

• Product weight70 g

• Housing colourBlack

• Material housingPP

• Switching status indicationYellow LED

• Ambient temperature with moving cable-5 °C ... 60 °C

• Degree of protectionIP67

• LABS (PWIS) conformityVDMA24364-B2-L
