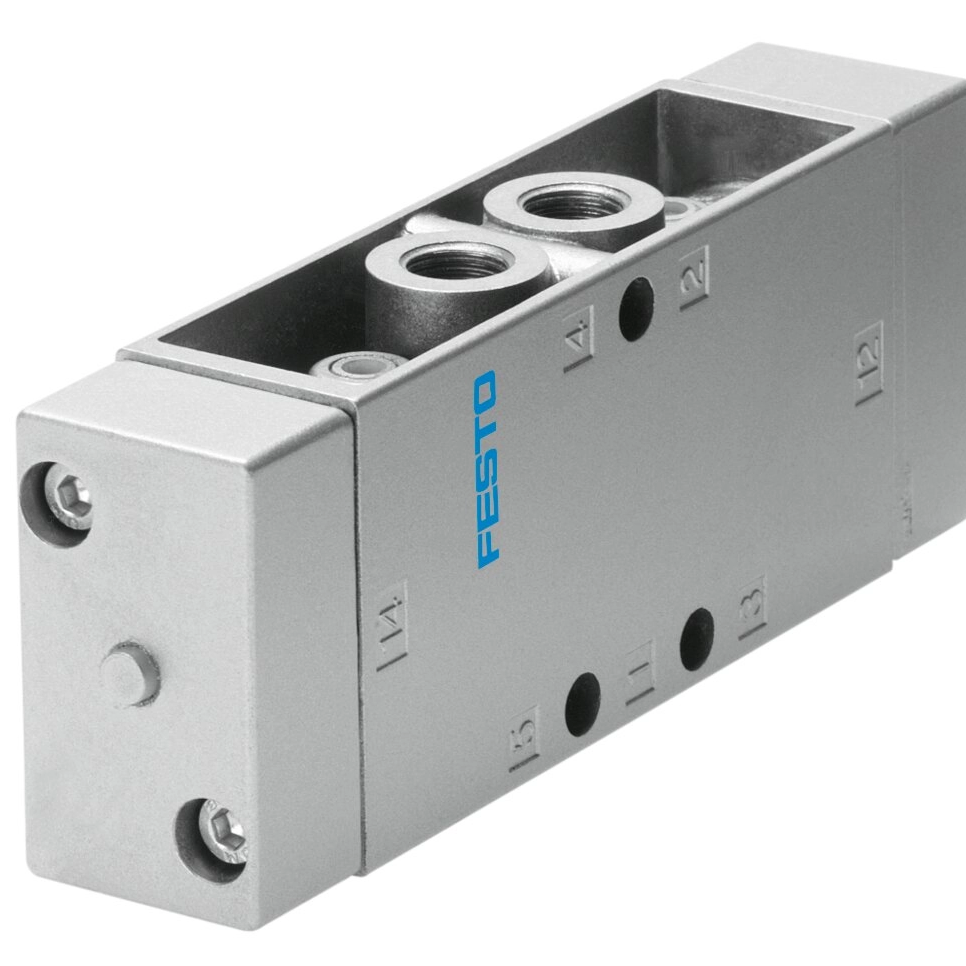

Air Control Valve Jh-5-1/4 10408 Pneumatic Components for Germany Original

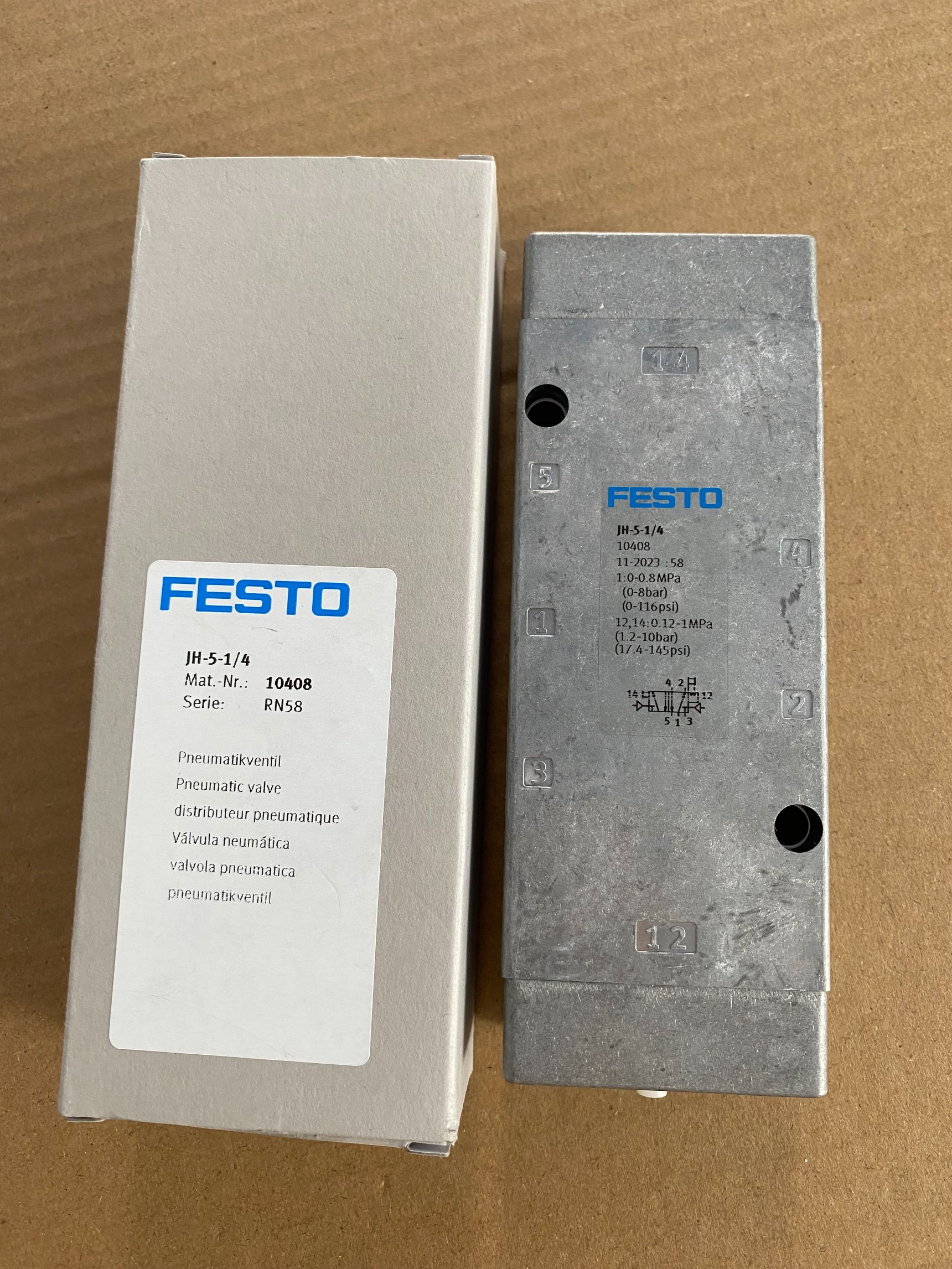

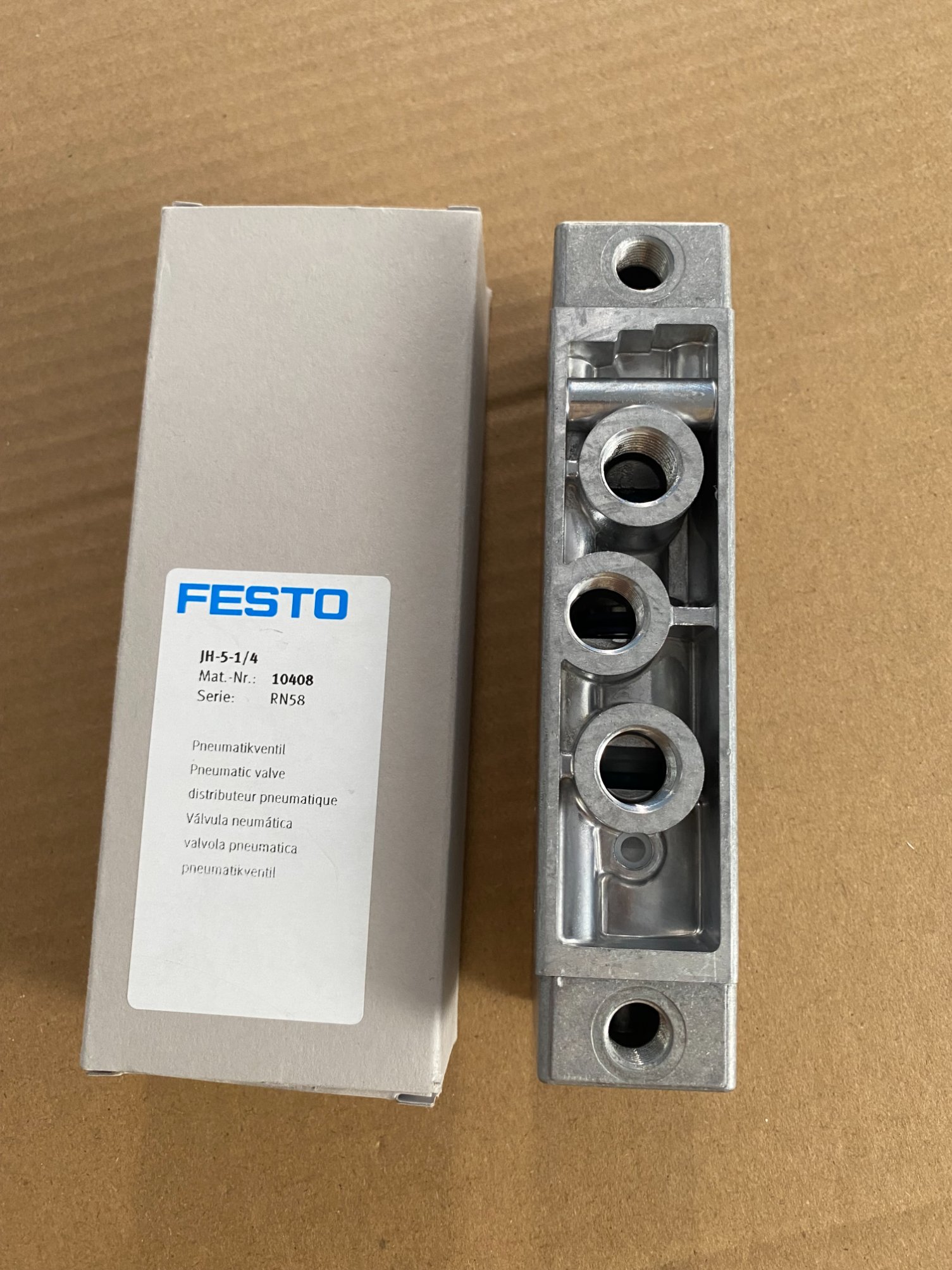

JH-5-1/4
10408

Technical Data

• ·Valve function :5/2 double solenoid

• ·Type of actuation :Pneumatic

• ·Construction width :30.5 mm

• ·Standard nominal flow rate (standardised to DIN 1343) :1100 l/min

• ·pneumatic working port :G1/4

• ·Operating pressure :0 MPa ... 0.8 MPa

• ·Operating pressure :0 bar ... 8 bar

• ·Design :Poppet seat

• ·Degree of protection :IP65

• ·Nominal size :7 mm

• ·Grid dimension :32 mm

• ·Exhaust-air function :With flow control option

• ·Sealing principle :Soft

• ·Mounting position :optional

• ·Type of piloting :Direct

• ·Pilot air supply :External

• ·Flow direction :Non-reversible

• ·Symbol :00995757

• ·lap :Underlap

• ·Pilot pressure :0.12 MPa ... 1 MPa

• ·Pilot pressure :1.2 bar ... 10 bar

• ·Max. switching frequency :12 Hz

• ·Switching time reversal :7 ms

• ·Operating medium :Compressed air to ISO 8573-1:2010 [7:4:4]

• ·Note on operating and pilot medium:Lubricated operation possible (in which case lubricated operation will always be required)

• ·Corrosion resistance class CRC :1 - Low corrosion stress

• ·LABS (PWIS) conformity :VDMA24364-B1/B2-L

• ·Storage temperature :-20 °C ... 60 °C

• ·Media temperature :-10 °C ... 60 °C

• ·Pilot medium :Compressed air to ISO 8573-1:2010 [7:4:4]

• ·Ambient temperature :-10 °C ... 60 °C

• ·Product weight :330 g

• ·Type of mounting :Either: On manifold rail With through-hole

• ·Pilot air port 12:G1/8

• ·Pilot air port 14 :G1/8

• ·Pneumatic connection, port 1 :G1/4

• ·Pneumatic connection, port 2 :G1/4

• ·Pneumatic connection, port 3 :G1/4

• ·Pneumatic connection, port 4 :G1/4

• ·Pneumatic connection, port 5 :G1/4

• ·Note on materials :RoHS-compliant

• ·Material seals :NBR TPE-U(PU)

• ·Material housing :Die-cast aluminium
