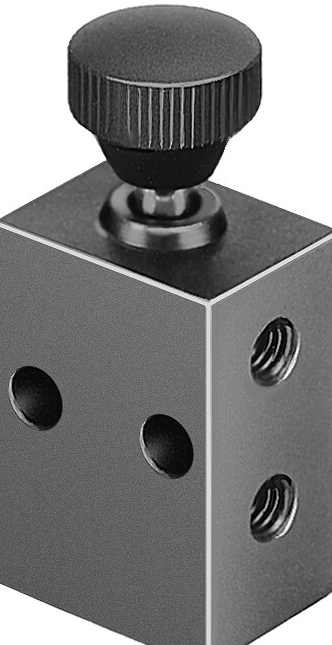

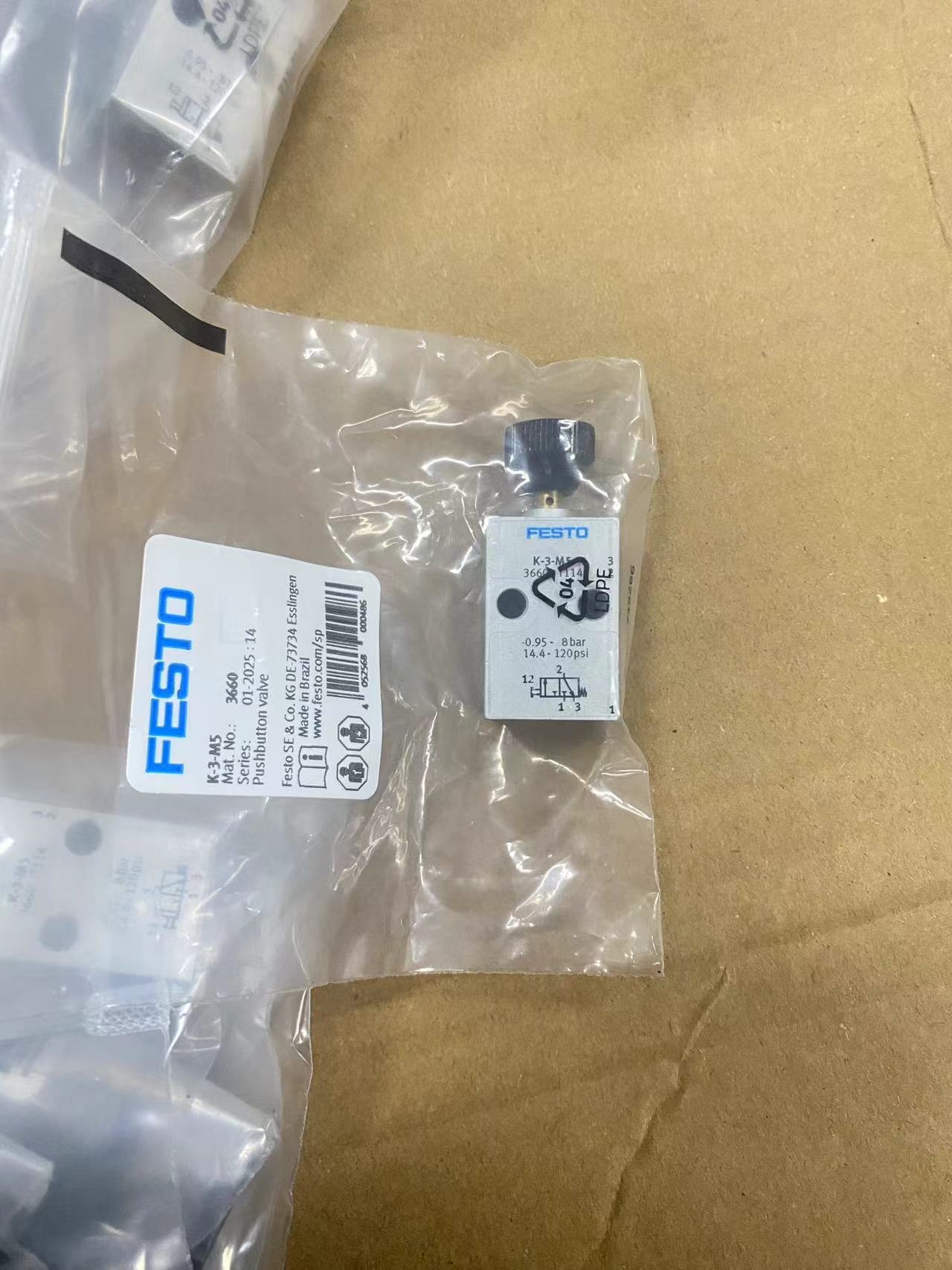

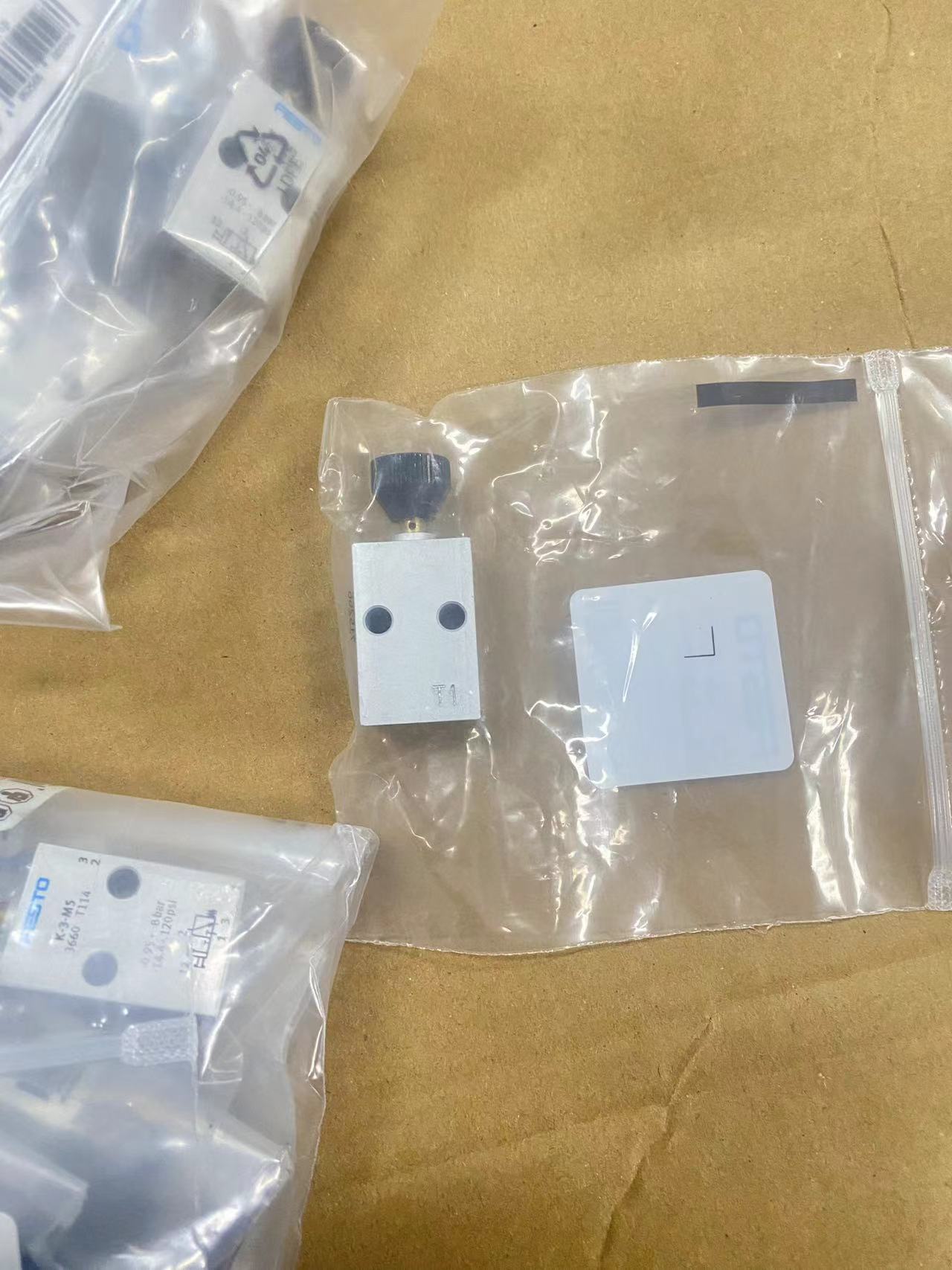

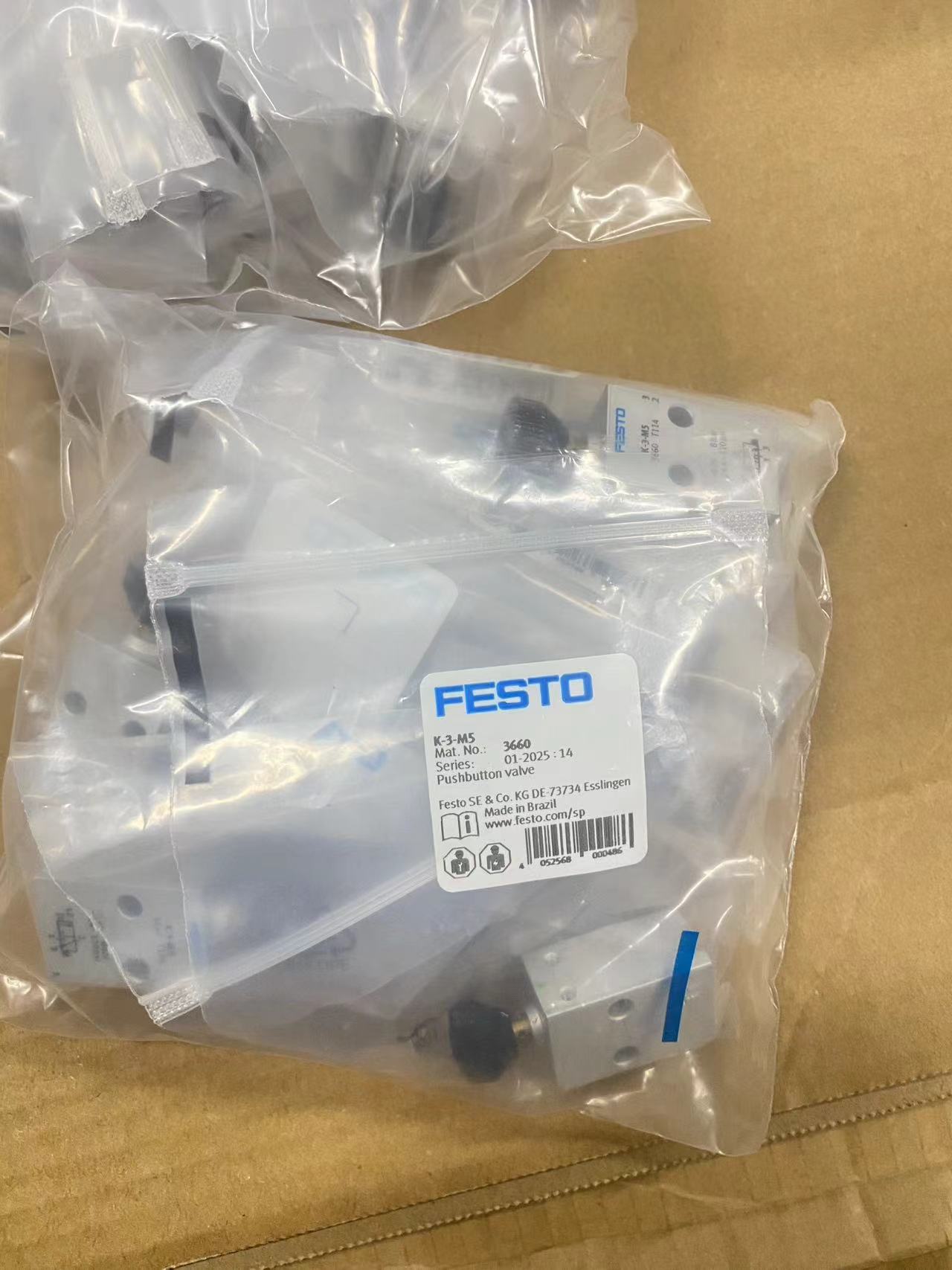

Brand New Original 3660 K-3-M5 Button Valve

K-3-M5

3660

Technical Data

• Valve function3/2-way, closed, monostable

• Standard nominal flow rate (standardised to DIN 1343)80 l/min

• pneumatic working portM5

• Operating pressure-0.95 bar ... 8 bar

• DesignPiston seat

• Nominal size2 mm

• Type of pilotingDirect

• Symbol00991098

• Explosion protectionZone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)

• Operating mediumCompressed air to ISO 8573-1:2010 [-:-:-]

• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

• LABS (PWIS) conformityVDMA24364-B1/B2-L

• Ambient temperature-10 °C ... 60 °C

• Actuating force23 N

• Product weight28 g

• Type of mountingWith through-hole

• Pneumatic connection, port 1M5

• Pneumatic connection, port 2M5

• Material sealsNBR

• Material housingDie-cast zinc
