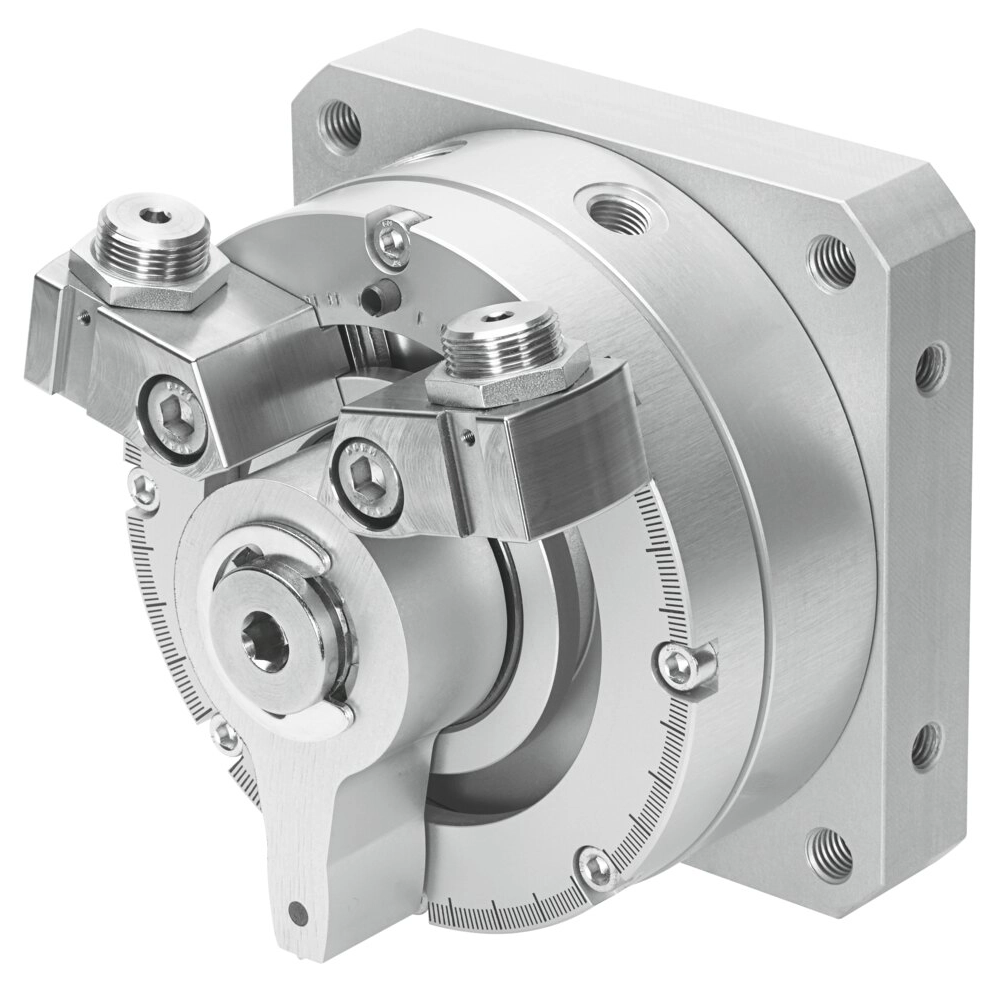

Brand new original angular travel drive 547570 DSM-12-270-P-A-B

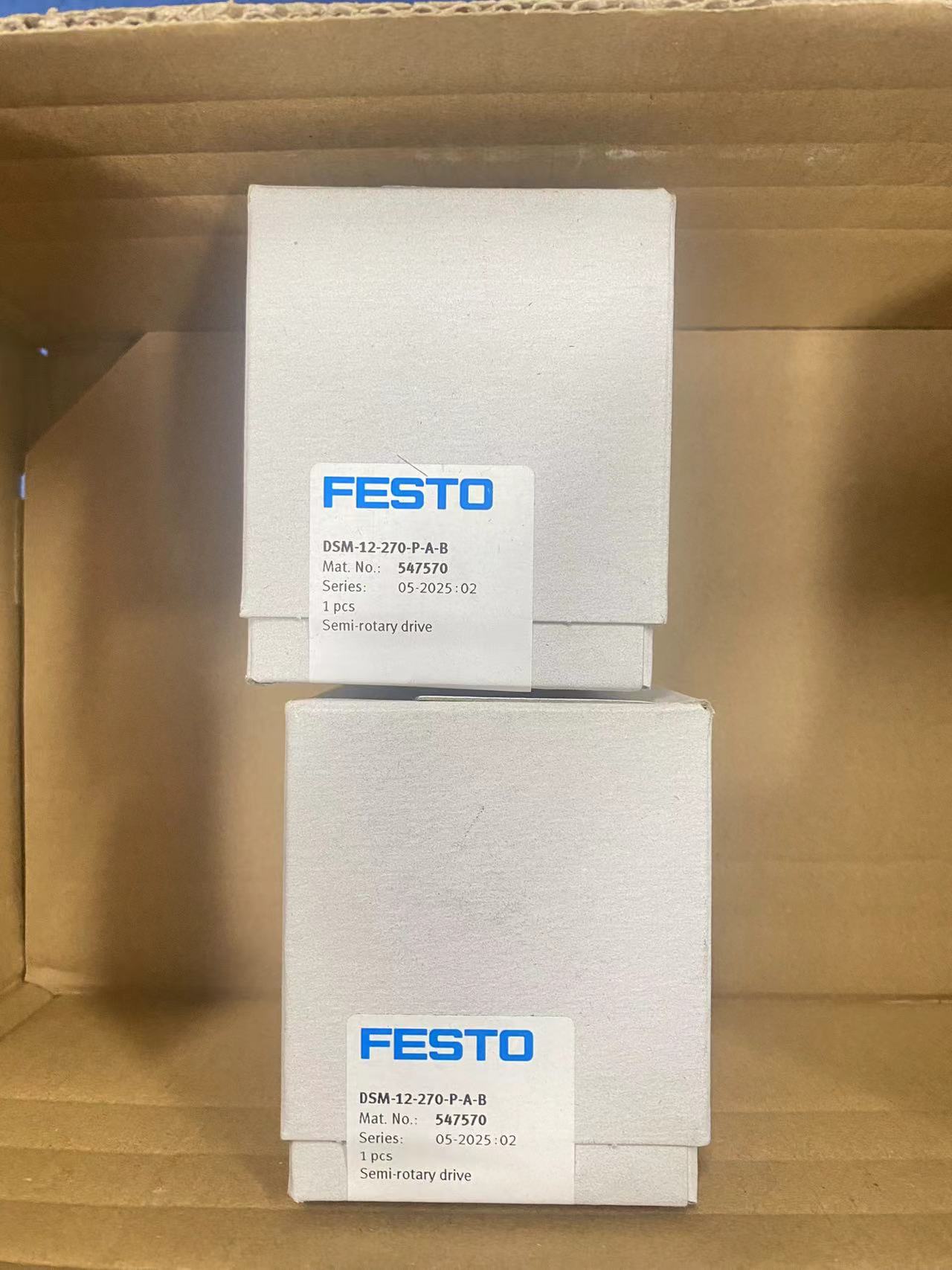

DSM-12-270-P-A-B

547570

Technical Data

• Size12

• Cushioning angle1.8 deg

• Rotation angle adjustment range0 deg ... 270 deg

• Swivel angle0 deg ... 270 deg

• Permissible stop radius≥15 mm

• CushioningElastic cushioning rings/plates at both ends

• Mounting positionoptional

• Fine adjustment-6 deg

• Mode of operationDouble-acting

• DesignVane

• Position detectionVia proximity switch

• Symbol00991265

• Operating pressure0.2 MPa ... 1 MPa

• Operating pressure2 bar ... 10 bar

• Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)2 Hz

• Repetition accuracy1 deg

• Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

• Corrosion resistance class CRC0 - No corrosion stress

• LABS (PWIS) conformityVDMA24364-B1/B2-L

• Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1

• Ambient temperature-10 °C ... 60 °C

• Max. stop force90 N

• Max. axial force18 N

• Max. radial force45 N

• Theoretical torque at 0.6 MPa (6 bar, 87 psi)1.25 Nm

• Permissible mass moment of inertia0.005 kgm²

• Product weight275 g

• Type of mountingVia female thread

• Pneumatic connectionM5

• Note on materialsRoHS-compliant

• Material drive shaftSteel Nickel-plated

• Material sealsTPE-U(PU)

• Material housingWrought aluminium alloy
