Brand new original pneumatic valve JMFH-5-1/2 10166 in stock

Product specifications and models are not all uploaded, if necessary, you can contact the online personnel. My WhatsApp +8618923754918  Look forward to hearing from you  thank you.

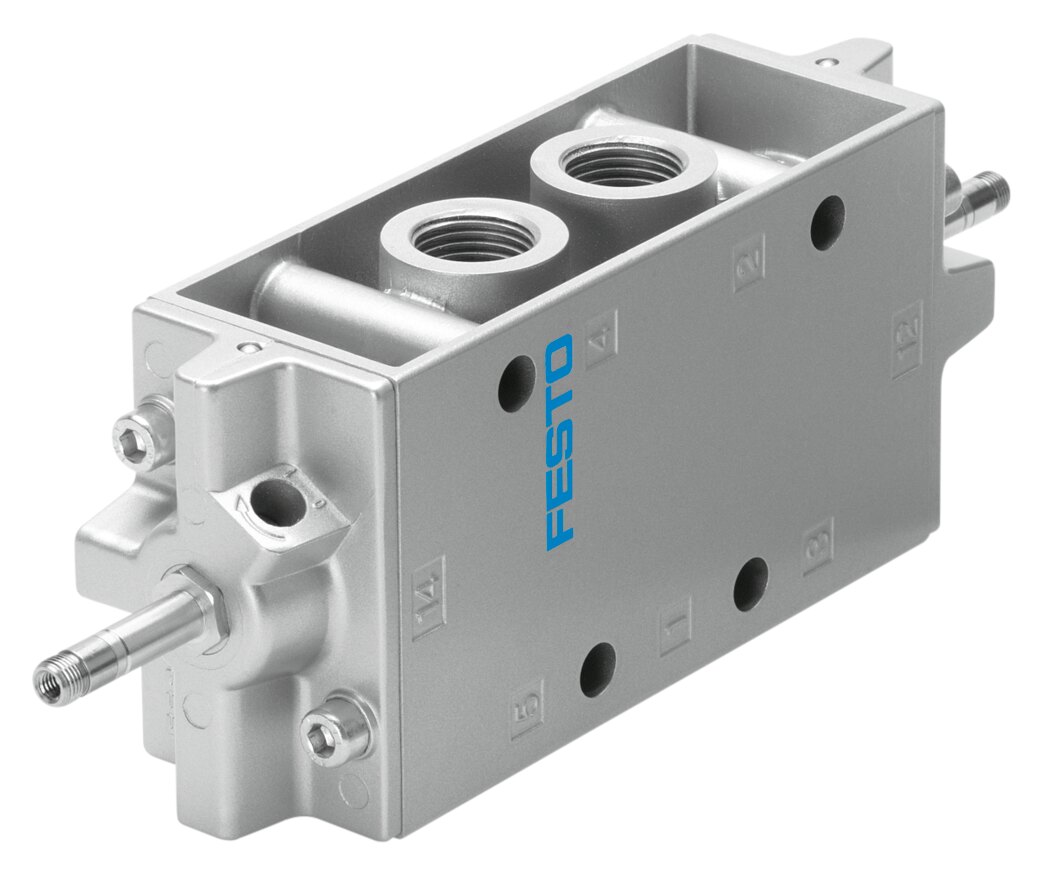

JMFH-5-1/2

10166

Technical Data

• Valve function5/2 bistable

• Type of actuationElectric

• Construction width52 mm

• Standard nominal flow rate (standardised to DIN 1343)4500 l/min

• pneumatic working portG1/2

• Operating voltageVia solenoid coil, must be ordered separately

• Operating pressure0.2 MPa ... 0.8 MPa

• Operating pressure2 bar ... 8 bar

• DesignPoppet seat

• Approvalc UL us - Recognized (OL)

• Degree of protectionIP65

• Nominal size14 mm

• Grid dimension69 mm

• Exhaust-air functionWith flow control option

• Sealing principleSoft

• Mounting positionoptional

• Manual overrideDetenting

• Type of pilotingPilot actuated

• Flow directionNon-reversible

• Symbol00995754

• lapUnderlap

• b value0.3

• C value19.5 l/sbar

• Max. switching frequency25 Hz

• Switching time reversal20 ms

• Max. positive test pulse with 0 signal2200 µs

• Max. negative test pulse with 1 signal3700 µs

• Characteristic coil dataSee solenoid coil, to be ordered separately

• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

• Corrosion resistance class CRC1 - Low corrosion stress

• LABS (PWIS) conformityVDMA24364-B1/B2-L

• Storage temperature-20 °C ... 60 °C

• Media temperature-10 °C ... 60 °C

• Ambient temperature-5 °C ... 40 °C

• Product weight1210 g

• Electrical connectionVia F coil, to be ordered separately

• Type of mountingOn manifold rail With through-hole

• Pilot exhaust port 82M5

• Pilot exhaust port 84M5

• Pneumatic connection, port 1G1/2

• Pneumatic connection, port 2G1/2

• Pneumatic connection, port 3G1/2

• Pneumatic connection, port 4G1/2

• Pneumatic connection, port 5G1/2

• Note on materialsRoHS-compliant

• Material sealsNBR TPE-U(PU)

• Material housingDie-cast aluminium
