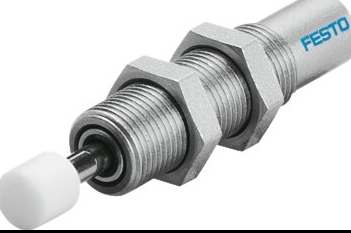

Elastic Buffer 34573 Ysr-16-20-C Germany Original Delivery Fast

Product specifications and models are not all uploaded, if necessary, you can contact the online personnel.  Look forward to hearing from you  thank you.

YSR-16-20-C
34573

Technical Data

• Size :16

• Stroke :20 mm

• Cushioning :Self-adjusting

• Mounting position :optional

• Position detection :Without

• Symbol :00991497

• Max. impact speed :3 m/s

• Reset time at room temperature :0.3 s

• Reset time at min. ambient temperature :1 s

• Mode of operation :Pushing Single-acting

• Corrosion resistance class CRC :2 - Moderate corrosion stress

• LABS (PWIS) conformity :VDMA24364-B2-L

• Ambient temperature :-10 °C ... 80 °C

• Cushioning length :20 mm

• Max. stop force :2000 N

• Max. energy consumption per stroke :30 J

• Max. energy consumption per hour :64000 J

• Max. residual energy :0.16 J

• Reset force :6 N

• Min. insertion force :60 N

• Product weight :185 g

• Load range :90 kg

• Type of mounting :Via lock nut

• Note on materials :RoHS-compliant

• Material seals :NBR

• Material housing :Galvanised steel

• Material piston rod :High-alloy steel
