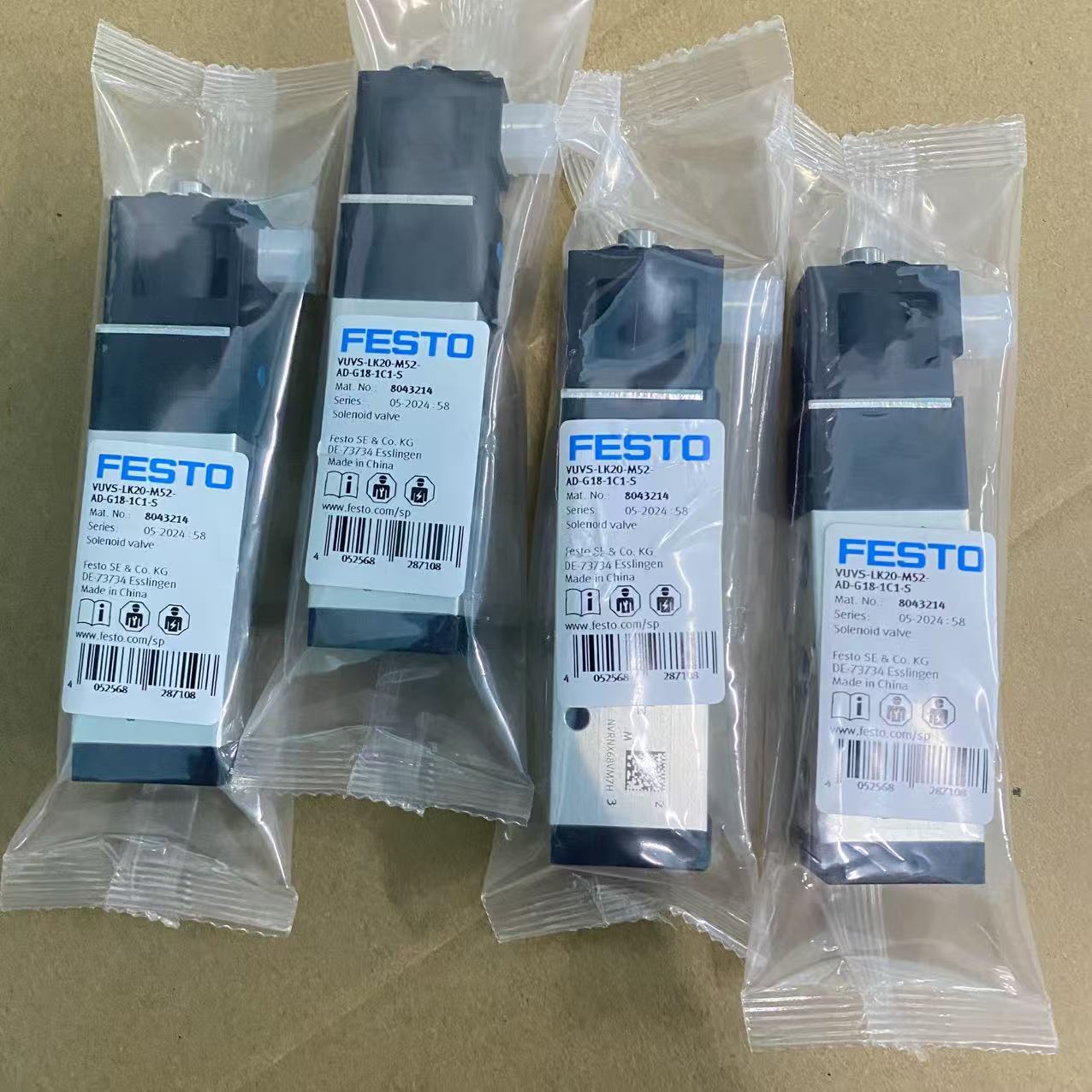

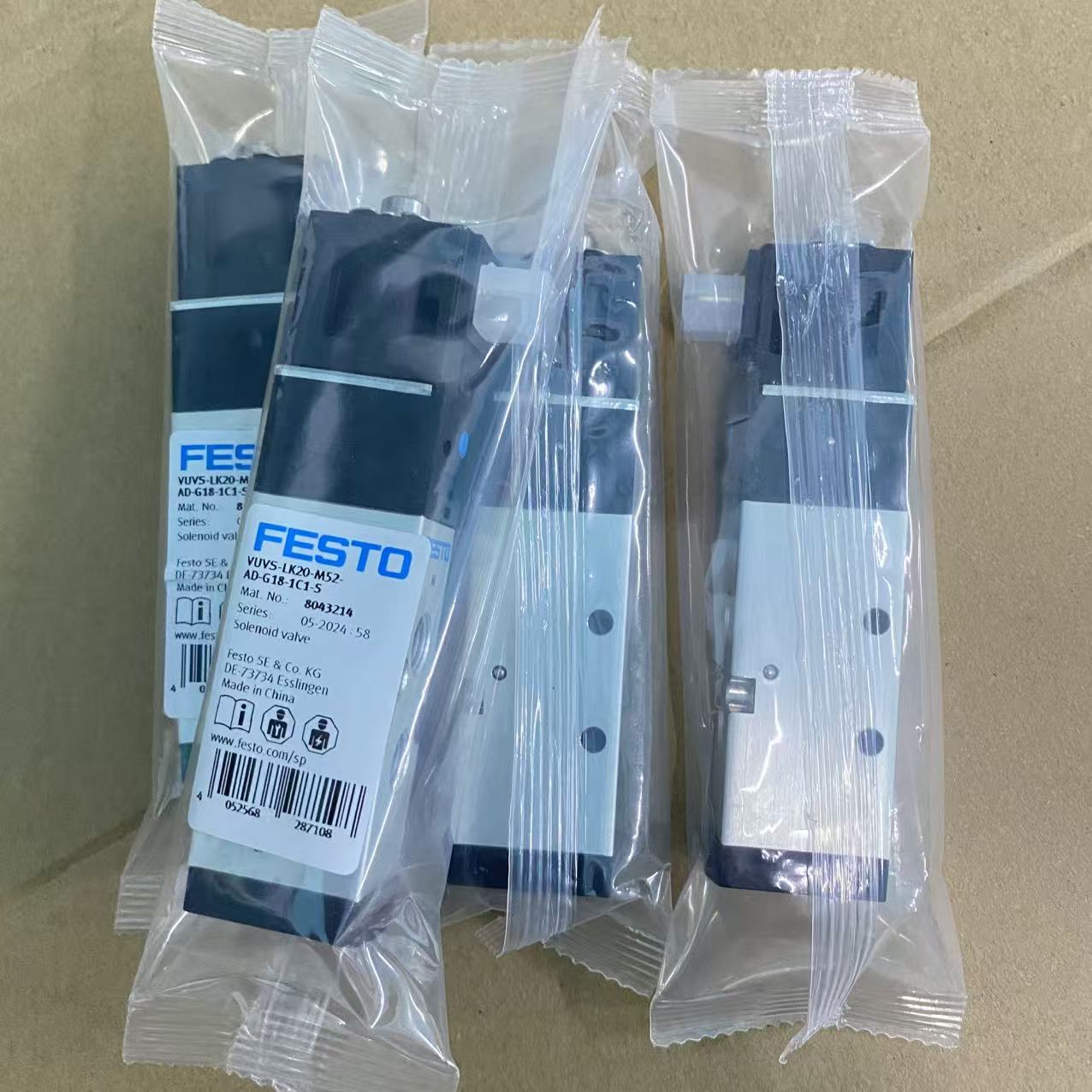

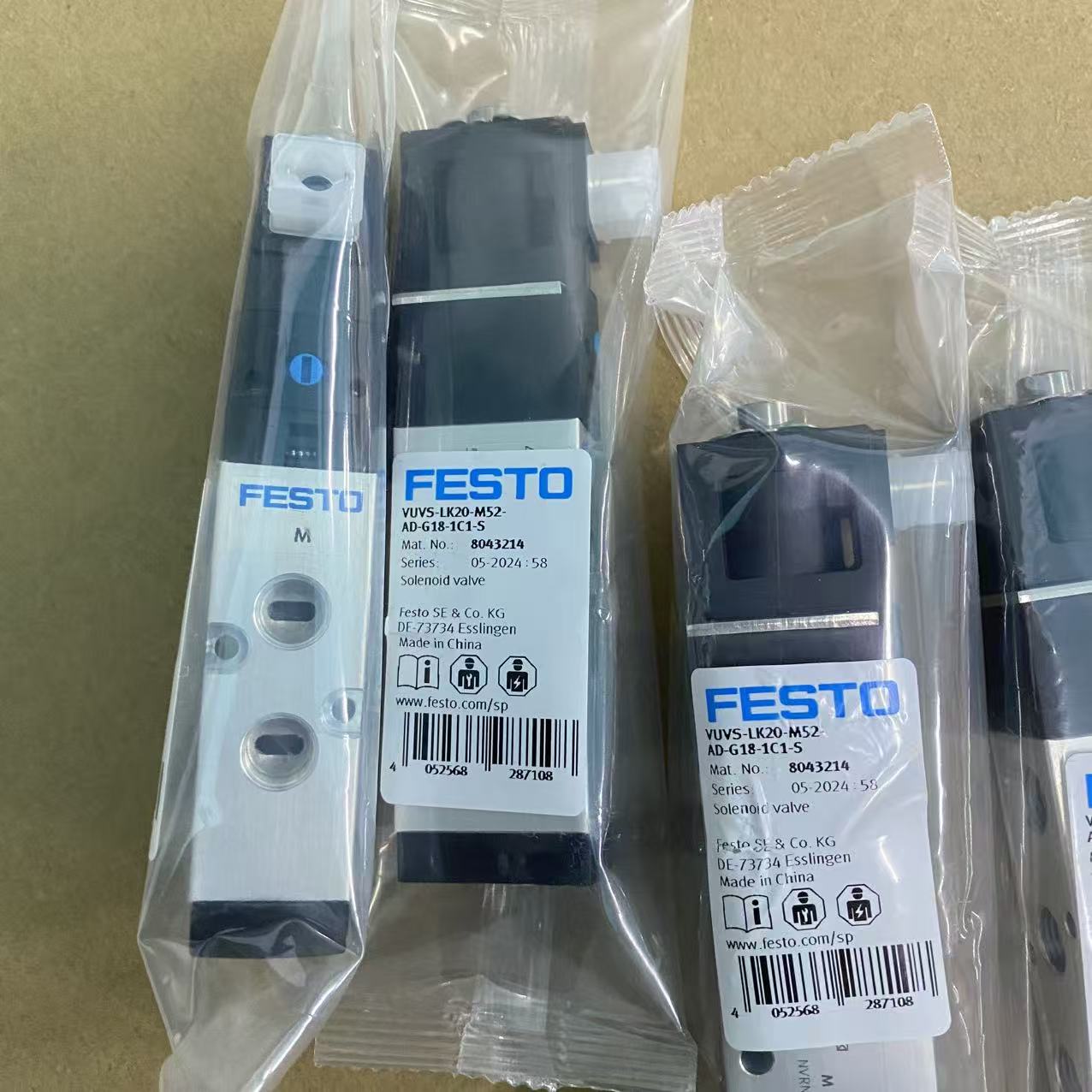

Electromagnetic Valve Vuvs-Lk20-M52-Ad-G18-1c1-S with G1/8 Interface

VUVS-LK20-M52-AD-G18-1C1-S

8043214

Technical Data

• Valve function5/2-way, monostable

• Type of actuationElectric

• Valve size21 mm

• Standard nominal flow rate (standardised to DIN 1343)550 l/min

• pneumatic working portG1/8

• Operating voltage24V DC

• Operating pressure0.15 MPa ... 0.8 MPa

• Operating pressure1.5 bar ... 8 bar

• DesignPiston gate valve

• Type of resetPneumatic spring

• Degree of protectionIP65 With plug socket To IEC 60529

• Nominal size5.2 mm

• Exhaust-air functionWith flow control option

• Sealing principleSoft

• Mounting positionoptional

• Manual overrideDetenting Non-detenting

• Type of pilotingPilot actuated

• Pilot air supplyInternal

• Flow directionNon-reversible

• Symbol00991049

• lapOverlap

• b value0.38

• C value2.66 l/sbar

• Switching time off22 ms

• Switching time on17 ms

• Duty cycle100%

• Max. positive test pulse with 0 signal2700 µs

• Max. negative test pulse with 1 signal1100 µs

• Characteristic coil data24 V DC: 2.4 W

• Permissible voltage fluctuations+/- 10 %

• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

• Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

• Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27

• Corrosion resistance class CRC1 - Low corrosion stress

• LABS (PWIS) conformityVDMA24364 zone III

• Media temperature-5 °C ... 50 °C

• Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

• Ambient temperature-5 °C ... 50 °C

• Product weight145 g

• Electrical connectionType C To EN 175301-803

• Type of mountingOn manifold rail With through-hole

• Breather connectionNot ducted

• Pneumatic connection, port 1G1/8

• Pneumatic connection, port 2G1/8

• Pneumatic connection, port 3G1/8

• Pneumatic connection, port 4G1/8

• Pneumatic connection, port 5G1/8

• Note on materialsRoHS-compliant

• Material sealsHNBR NBR

• Material housingWrought aluminium alloy

• Material piston slideWrought aluminium alloy
