PAGN-P-50-1M-G14
FESTO
8037008
| Availability: | |
|---|---|
| Quantity: | |
Product specifications and models are not all uploaded, if necessary, you can contact the online personnel. My WhatsApp +8618923754918 Look forward to hearing from you thank you.
PAGN-P-50-1M-G14
8037008
Indicating range:0 MPa - 1 MPa
Indicating range0 MPa ... 1 MPa
Symbol00991463
Conforms to standardEN 837-1
Nominal size of pressure gauge50
Explosion protectionThe information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
DesignBourdon tube pressure gauge
Type of mountingFront panel mounting
Operating mediumInert gases Neutral fluids
Note on operating and pilot mediumNo acetylene No oxygen
Operating pressure0 MPa ... 1 MPa
Operating pressure0 bar ... 10 bar
Operating pressure0 psi ... 145 psi
Alternating load factor0.66
Measurement accuracy class2.5
Degree of protectionIP43
Storage temperature-40 °C ... 70 °C
Media temperature-20 °C ... 60 °C
Ambient temperature-20 °C ... 60 °C
LABS (PWIS) conformityVDMA24364-B1/B2-L
Note on materialsRoHS-compliant

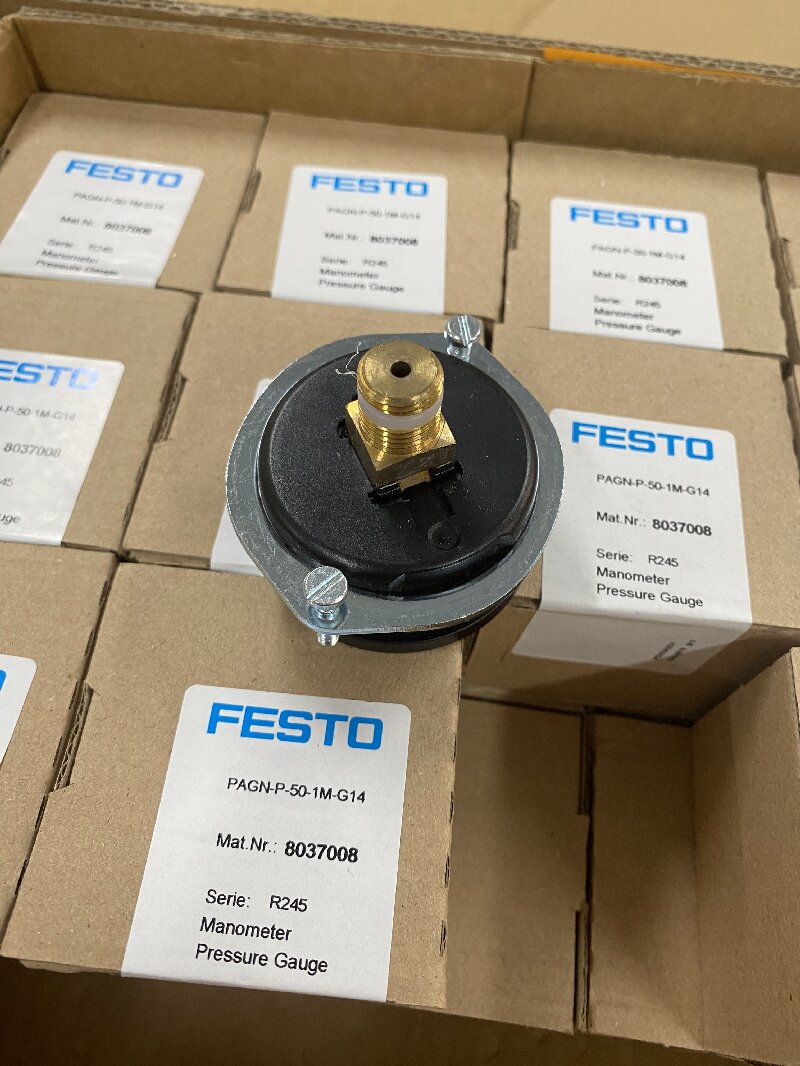

Position of connectionCentred, rear side
Pneumatic connectionG1/4
Material in contact with the mediumBrass
Material screwed plugBrass
Material housingABS
Material screenSAN
Material mounting ringSteel
Material screwsSteel
Housing colourBlack
Product weight100 g
ScaleDouble scale MPa (outer scale) bar (inner scale)
