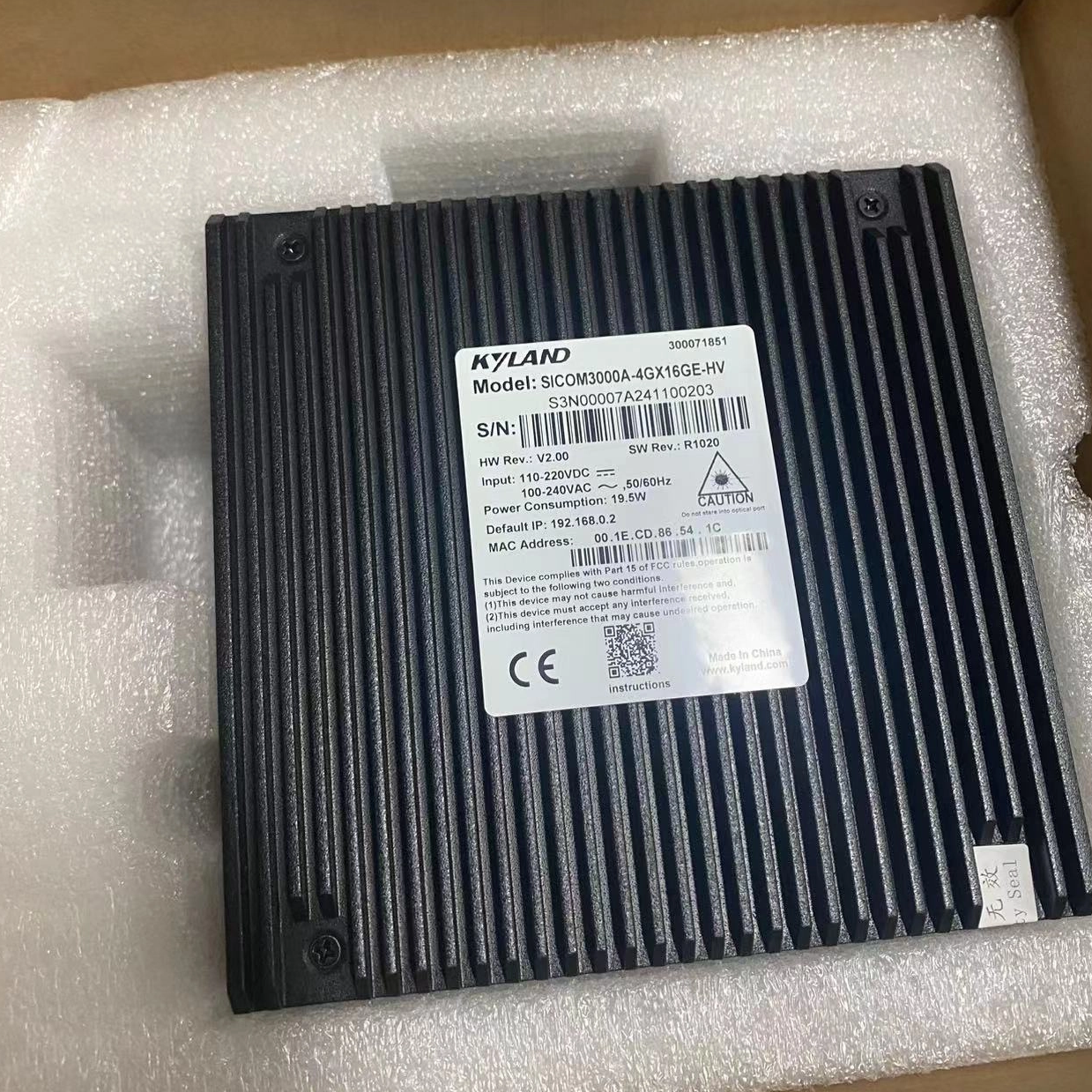

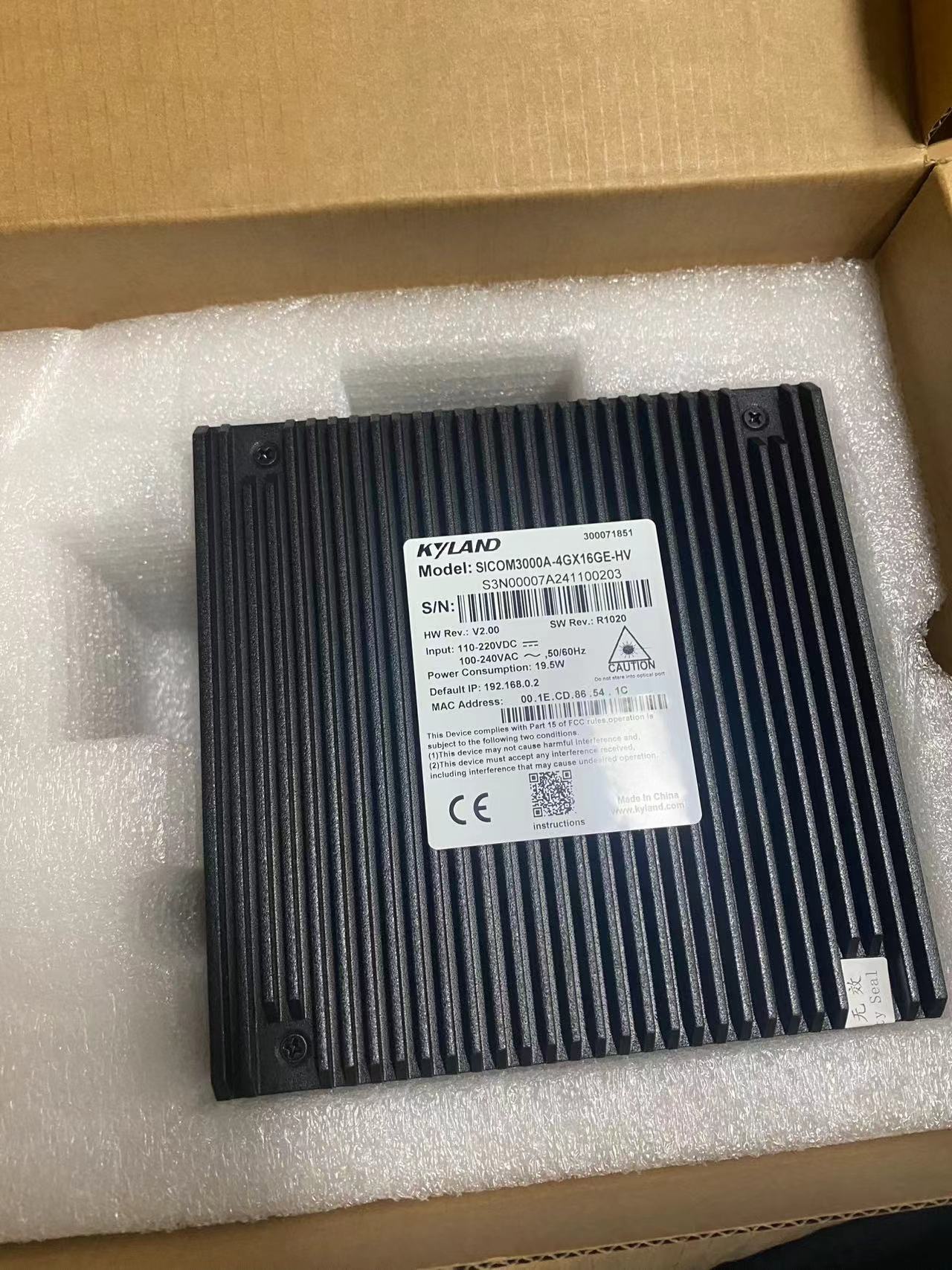

Kyland Switch Sicom3000A-4gx16ge-Hv

Product specifications and models are not all uploaded, if necessary, you can contact the online personnel. Look forward to hearing from you  thank you.

Product Introduction

The main features of the Opal5G unmanaged switch are full gigabit interfaces, compact structure, and economic ease of use. It is typically used in the construction of high-bandwidth Ethernet in industries such as factory automation, petrochemicals, and intelligent transportation. Opal5G supports 1 gigabit optical and electrical optional interface and 4 gigabit RJ45 electrical ports, redundant power input, built-in isolated power supply, metal housing with IP40 protection level, and extreme environmental temperature adaptability from -40ºC to +75ºC, to meet the requirements of different industrial applications and ensure fast and reliable data transmission in harsh industrial environments.

Performance parameters

IEEE 802.3i (10Base-T)
IEEE 802.3u (100Base-TX)
IEEE 802.3ab (1000Base-T)
IEEE 802.3z (1000Base-X)
IEEE 802.3x (Flow Control)
Exchange attribute MAC table 4K
The packet buffer is 1.5Mbit
The packet forwarding rate is 7.4Mpps
The exchange delay is less than 5μs
The ultra-long frame length is 9KB
Interface gigabit port
1000Base-X, SFP interface
10/100/1000 base-T (X), RJ45 interface
Indicator light: Front panel indicator light
Power indicator lights :PWR1,PWR2
Interface indicator lights :Link/ACT, Speed (electrical port); Link/ACT(Optical Port)
The power input voltage is 12-48VDC/18-30VAC
The terminal is a 4-core 5.08mm pitch insertable terminal
Power: 4.3W(1GX4GE), 4.1W(5GE)
Overload protection support
Reverse connection protection support
Redundant protection support
The mechanical structure shell is made of metal material
The heat dissipation method is natural cooling without a fan
Protection grade: IP40
Dimensions: 31mm×114.5mm×94mm (W×H×D)
Weight: 0.3Kg
Installation methods: DIN card rail type or wall-mounted type
Ambient operating temperature: -40ºC to +75ºC
Storage temperature: -40ºC to +85ºC
Relative humidity: 5 to 95%, no condensation
Warranty MTBF: 6810066h
The warranty period is five years
Certified CE, FCC
UL61010, Class I Div 2
Industry standard EMI
FCC CFR47 Part 15,EN55032/CISPR22,Class A
EMS:
IEC61000-4-2(ESD): ±6kV (contact), ±8kV (air)
IEC61000-4-3(RS): 10V/m (80MHz-2GHz)
IEC61000-4-4(EFT): Power Port: ±4kV;  Data Port: ±2kV
IEC61000-4-5(Surge): Power Port: ±1kV/DM, ±2kV/CM;  Data Port: ±2kV
IEC61000-4-6(CS): 10V (150kHz-80MHz)
Machinery
Iec 60068-2-6(Vibration)
Iec 60068-2-27(Impact)
Iec 60068-2-32(Free Fall)
