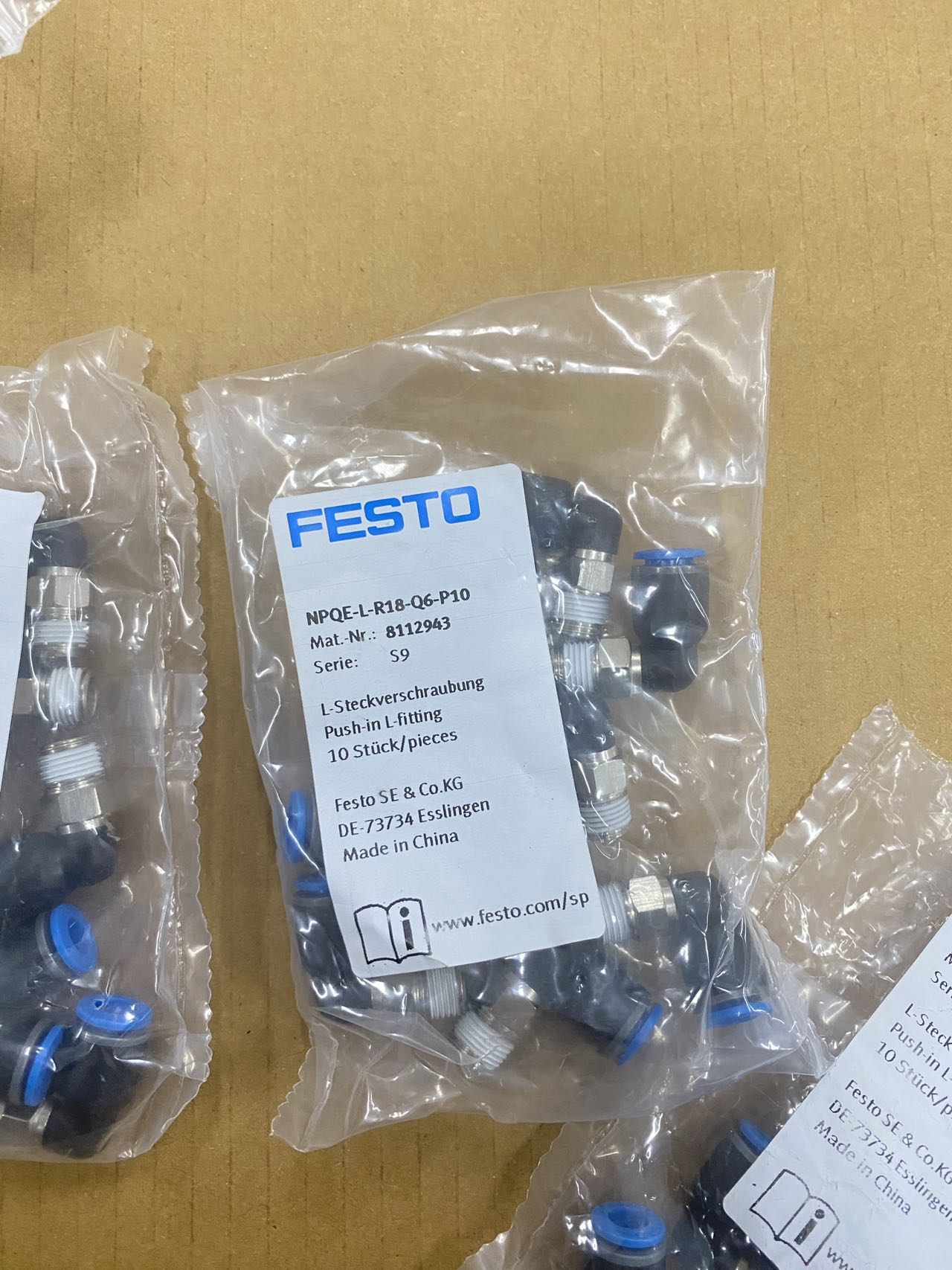

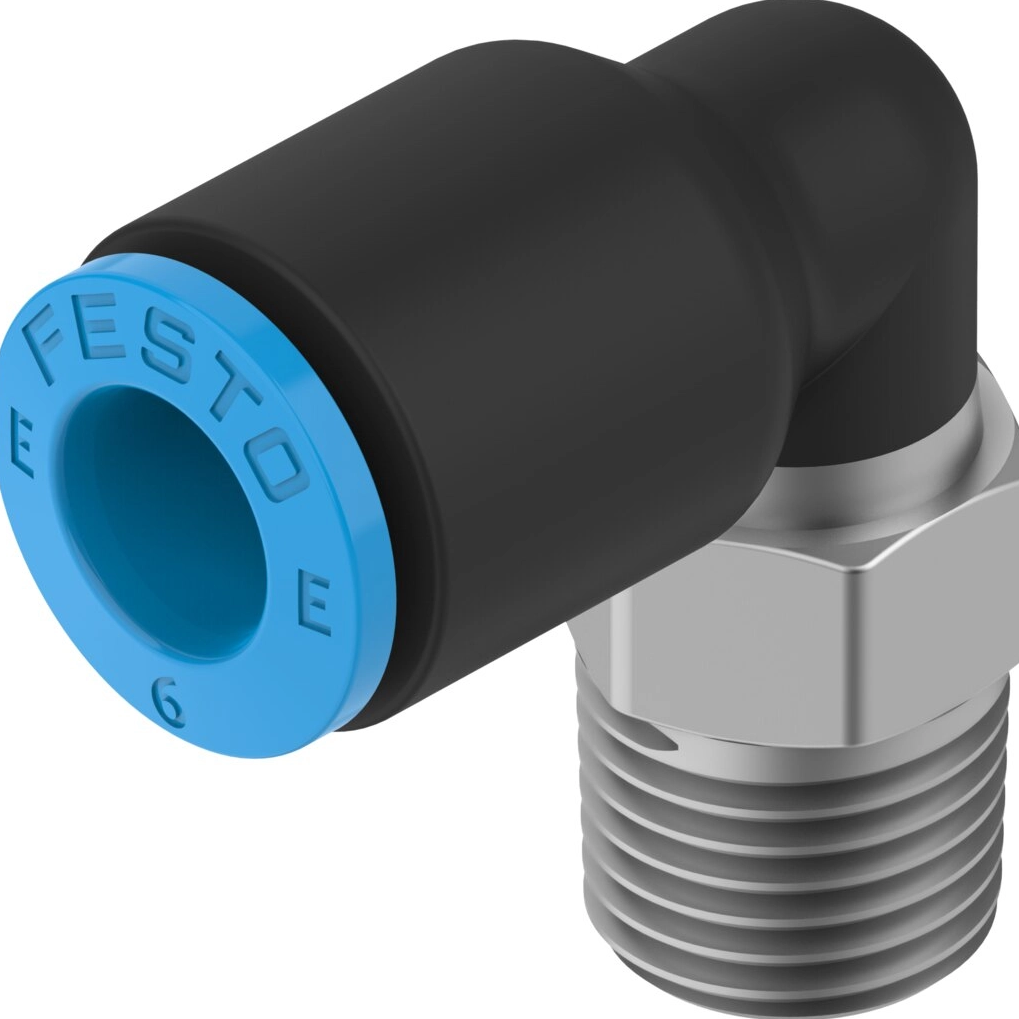

L-Type Quick Insert Thread Joint 8112943 Npqe-L-R18-Q6-P10 Original Stock

NPQE-L-R18-Q6-P10

8112943

Technical Data

• SizeStandard

• Nominal size4 mm

• Type of seal on screwed plugCoating

• Mounting positionoptional

• DesignL-shape

• Size of pack10

• DesignPush-pull principle

• Operating pressure complete temperature range-0.095 MPa ... 0.8 MPa

• Operating pressure complete temperature range-0.95 bar ... 8 bar

• Operating pressure complete temperature range-13.775 psi ... 116 psi

• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

• Note on operating and pilot mediumLubricated operation possible

• Corrosion resistance class CRC1 - Low corrosion stress

• LABS (PWIS) conformityVDMA24364 zone III

• Cleanroom classClass 4 according to ISO 14644-1

• Ambient temperature-5 °C ... 60 °C

• Product weight8.69 g

• Type of mountingExternal hexagon, size 10 mm

• Pneumatic connection, port 1Male thread R1/8

• Pneumatic connection, port 2For tubing outside diameter of 6 mm

• Colour of release ringBlue

• Note on materialsRoHS-compliant

• Material housingBrass, nickel-plated PBT

• Material thread sealPTFE

• Material release ringPOM

• Material tubing sealNBR

• Material tubing clamp componentStainless steel
