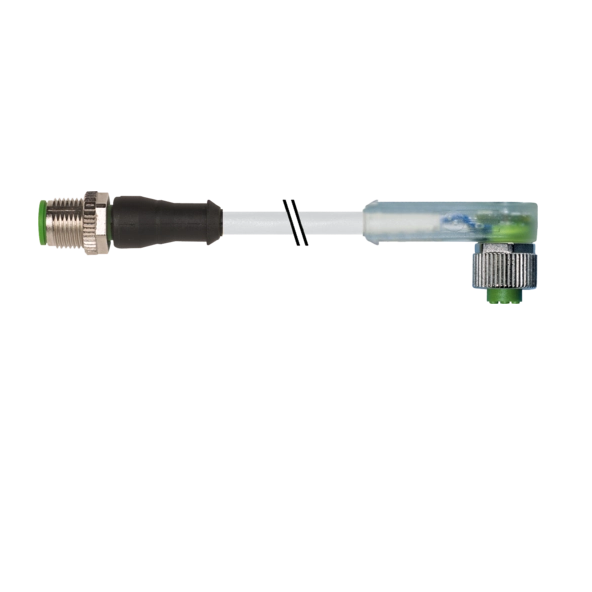

MURR 7000-40351-2340100 M12 Male 0° / M12 Female 90° A-Cod. LED

Product specifications and models are not all uploaded, if necessary, you can contact the online personnel. My WhatsApp +8618923754918  Look forward to hearing from you  thank you.

Product item Number: 7000-40351-2340100
Weight: 0.058 kilograms
Origin: CN
Model Name: MSDL1-A-T234_1.0

Technical data

The cable length is 1 meter

Fastening torque 0.6 Nm

Installation method: Insert and tighten with screws

Family construction form    M12

Thread M12 x 1

Material: PUR

The opening width of the wrench is SW13

Protection type (EN IEC 60529) IP66K, IP67

Fastening torque 0.6 Nm

Installation method: Insert and tighten with screws

Family construction form    M12

Thread M12 x 1

Material: PUR

The opening width of the wrench is SW13

Protection type (EN IEC 60529) IP66K, IP67

Electrical data: Power supply

The working voltage is DC 24V

The minimum operating voltage is 18 volts DC

The maximum operating voltage is DC 30V

The maximum operating current for each contact is 4 A

Installation/Connection

Fixed device M12 x 1

Equipment protection: Electric

Insert the protective type with additional conditions and tighten it with screws

Pollution level 3

Rated impulse voltage: 0.8 kV

Mechanical data/Material data

Bolt connection coating nickel plated

Material screw connection die-cast zinc
