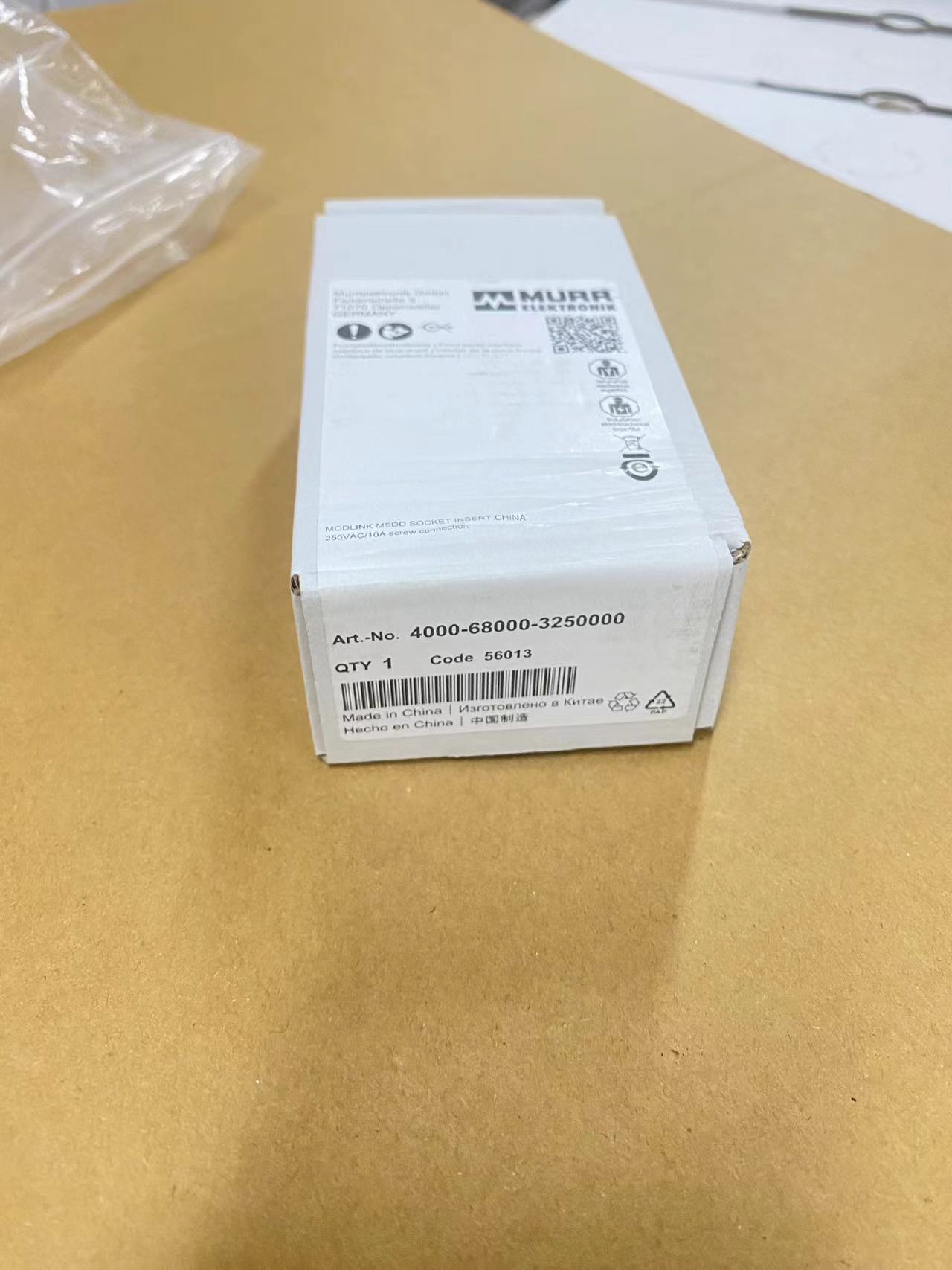

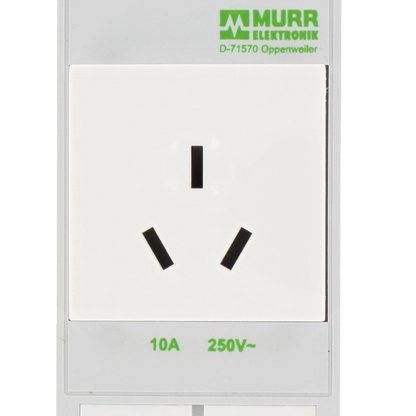

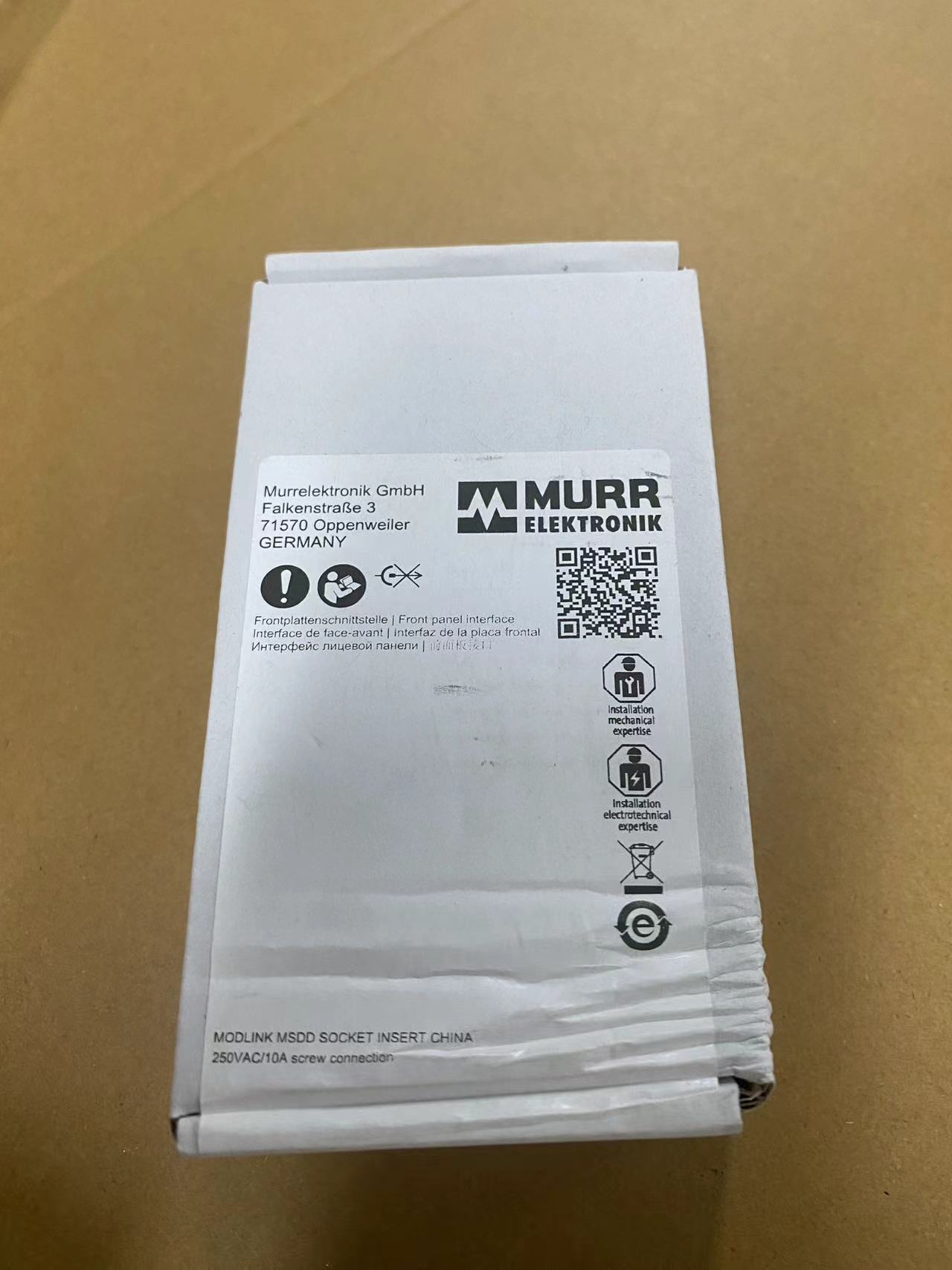

MURR MODLINK MSDD SOCKET INSERT CHINA 4000-68000-3250000

Product specifications and models are not all uploaded, if necessary, you can contact the online personnel. My WhatsApp +8618923754918  Look forward to hearing from you  thank you.

Product item Number: 4000-68000-3250000

Weight: 0.046 kilograms

Origin: CN

Model Name: Fr.Modul-I 250-10-SC

Technical data

Header

Material short text    Fr.Modul-I-250-10-SC

Mechanical data: Installation date

Height: 88mm

Width: 51 mm

Depth: 25 mm

Environmental characteristics: climate

Minimum storage temperature: -30 °C

The maximum storage temperature is 60 °C

China (CCC)

Connect the screw terminal SK

Pole number PE

Each electrode is connected to 2

Protective contact can be provided

The maximum single-core connection cross-section is 4 mm²

The maximum cross-sectional area for multi-strand/thin wire connections is 4 mm²

The working voltage is AC 250V

The working current is 10 A
