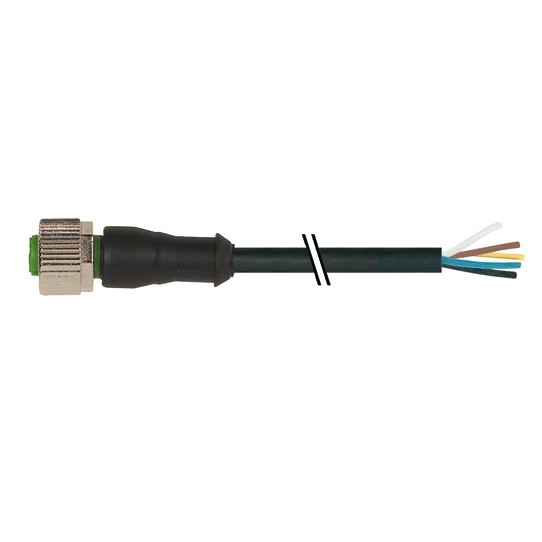

Murr 7000-12241-6351000 M12 Female 0° A-Cod. with Cable

Product specifications and models are not all uploaded, if necessary, you can contact the online personnel. My WhatsApp +8618923754918  Look forward to hearing from you  thank you.

Product item Number: 7000-12241-6351000
Weight: 0.41 kilograms
Origin: CN
Model Name: MSBL0-U635_1.0

Technical data

The cable length is 10 meters

Fastening torque 0.6 Nm

Installation method: Insert and tighten with screws

The contact coating is gold-plated

Family construction form    M12

Thread M12 x 1

Suitable for corrugated pipes (internal Ø) of 10mm

The cable outlet is straight

Code A

The material contact is made of copper alloy

Material: PUR

Pole number 5

The opening width of the wrench is SW13

Protection types (EN IEC 60529) IP65, IP66K, IP67

The peel length (outer cover) is 20 mm

Family construction form    free cable end

Electrical data: Power supply

The maximum operating voltage is AC 125V

The maximum operating voltage is DC 125V

The maximum operating current for each contact is 4 A

diagnosis

The LED status indicator light is unavailable

Installation/Connection

The peel length (outer cover) is 20 mm

Fixed device M12 x 1

Gender    female

Equipment protection: Electric

Protection types (EN IEC 60529) IP65, IP67, IP66K

Insert the protective type with additional conditions and tighten it with screws

Pollution level 3

Rated impulse voltage: 1.5 kV

Insulation Group (IEC 60664-1) I

Mechanical data/Material data

Coating of the locking device Nickeled

Bolt connection coating nickel plated

Material gasket FKM

Locking material die-cast zinc

Material screw connection die-cast zinc

Mechanical data: Installation date

Installation method: Insert, tighten with screws, vibration protection

Environmental characteristics: climate

Minimum operating temperature: -30 °C

The maximum operating temperature is 85 °C

Additional condition temperature range    depending on cable quality
