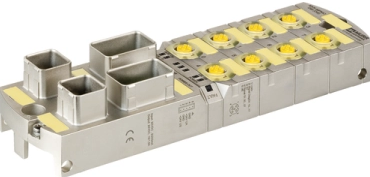

Mvk-Mpnio F Di16/8 55562 Power Supply Module

Product specifications and models are not all uploaded, if necessary, you can contact the online personnel. Look forward to hearing from you  thank you.

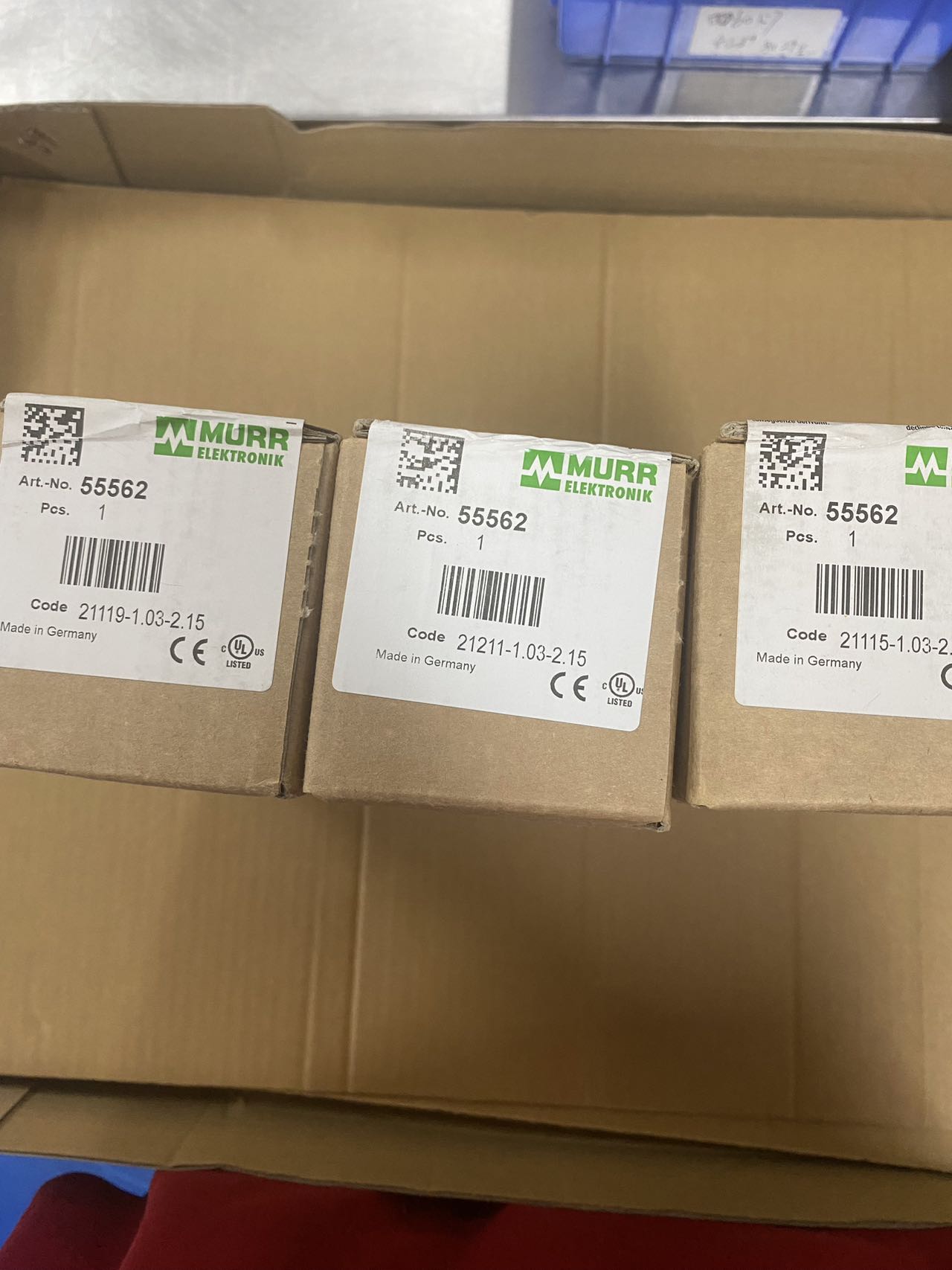

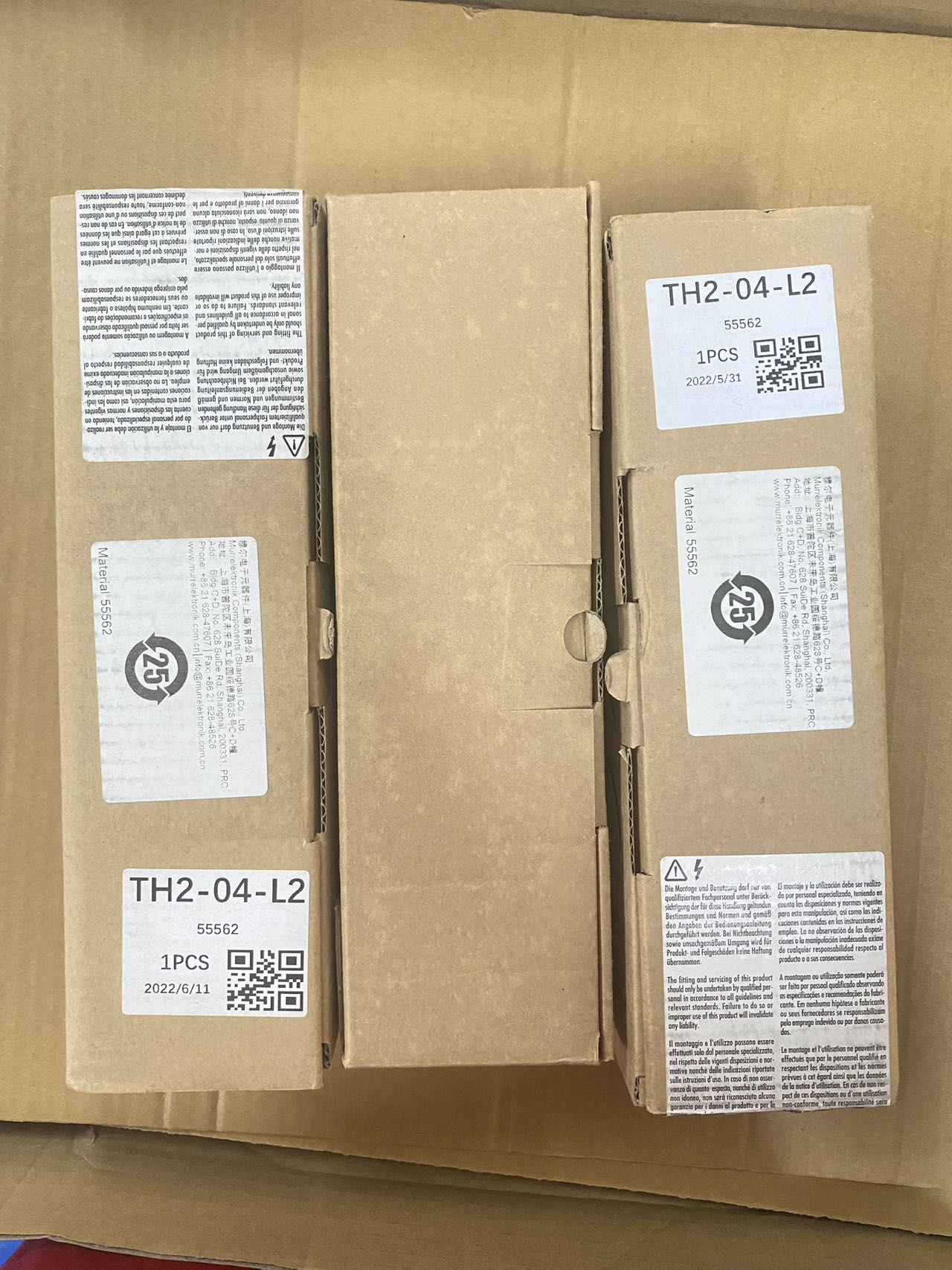

Product item number: 55562
Weight: 0.98 kilograms
Origin: DE
Model Name: MVK-MPNIO F DI16/8 PP

Technical data

Technical data | Security features
DCavg (EN ISO 13849-1)    98 %
Service life: 20 years
Type (EN ISO 13849-1) 4
PFHd (IEC 61508)    17 E-10/h
Performance Grade (EN ISO 13849-1) e
SIL (IEC 61508)    3
SIL CL (IEC 62061)    3
Electrical data | Power supply
The maximum operating current for each pin uses Pin 1 and Pin 5, with Pin 1 or Pin 5, 0.2A, 0.7A
The maximum total current UA is 12 A
The maximum total current is US 12 A
Electrical data | Input
The working voltage at the F input terminal is 24 V
Type Safety input electronic sensor or mechanical switch
Technical Parameters | Industrial Communication
Supported protocol: PROFINET
Industrial Communications | PROFINET
Maximum number of active connections (IO controller) 2
There is IRT (Network Communication)
There are MRP customers
PROFINET addressing DCP
PROFINET compliance level C
PROFINET specification V2.2
Shared device/input is available
diagnosis
The actuator alarms each channel through the LED and the bus
Diagnosis: Under voltage, no voltage
Diagnose each module and channel through the bus
Diagnose each module and channel through LED
Disconnection detection is available
Short-circuit connection diagnosis is available
LED indicates Ethernet connection/data transmission
Cross-loop detection sensor/actuator
Overload diagnosis includes
Equipment protection | Electric
Protection type (EN IEC 60529) IP67
Overload protection is available
Short-circuit protection is available
Mechanical data | Installation date
Suitable for mounting type 2- Hole screw mounting
Height: 44 mm
Width: 63 mm
Depth: 225 mm
Environmental characteristics | Climate
Minimum operating temperature: -20 °C
The maximum operating temperature is 55 °C
Minimum storage temperature: -40 °C
The maximum storage temperature is 70 °C
CONFORMITY
Product standard EN 61131-2
