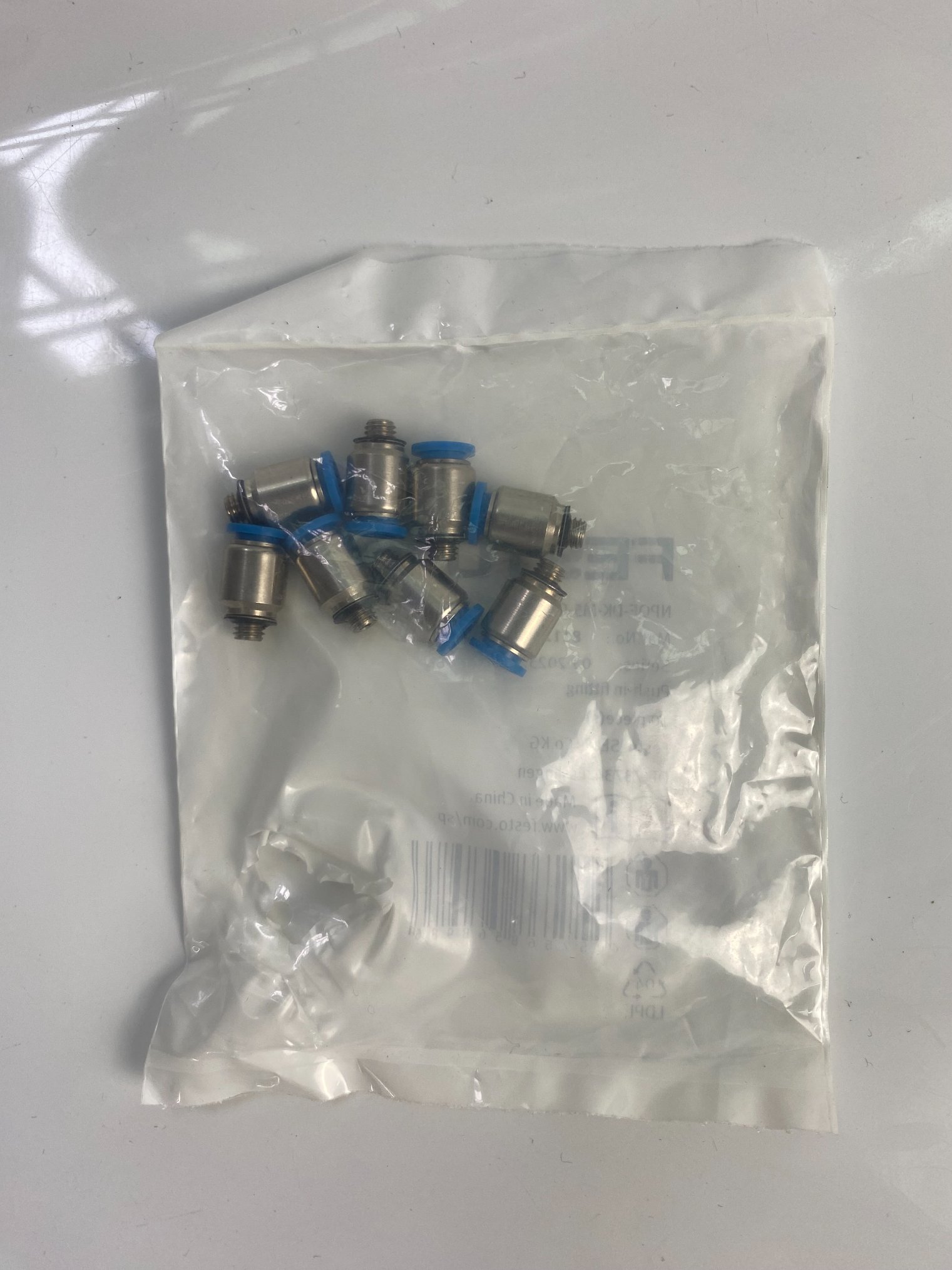

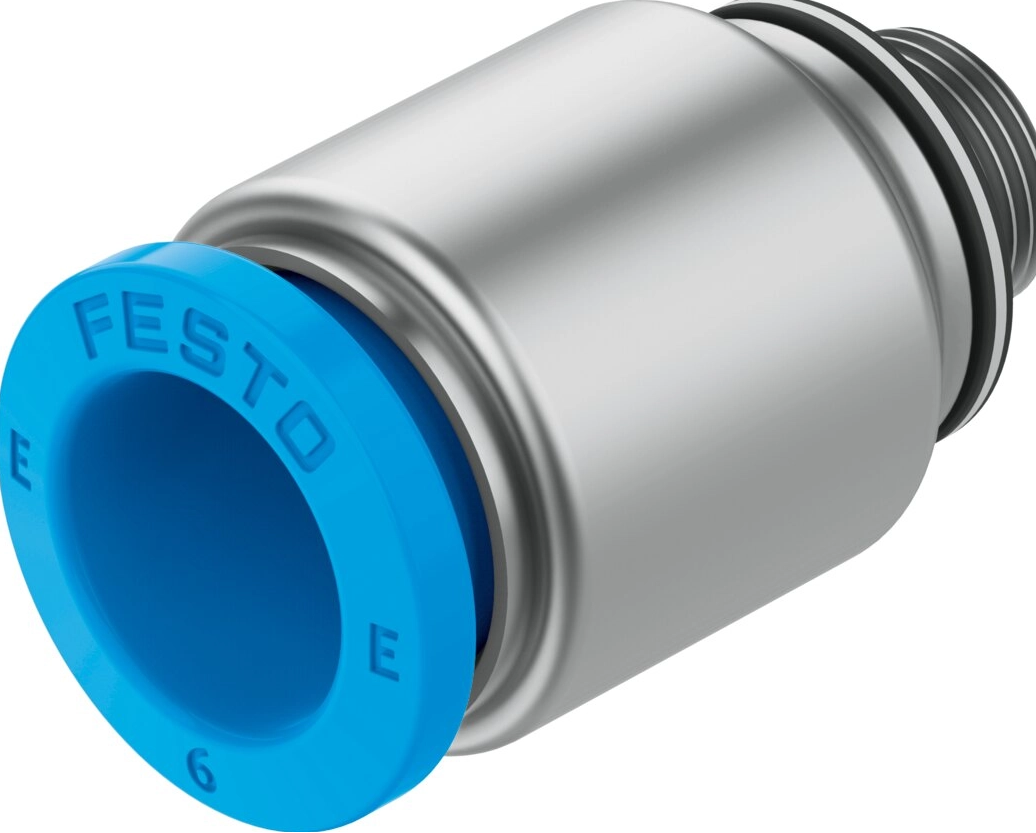

Npqe-Dk-M5-Q6-P10 8112968 Quick Plug Connector New Original and Authentic

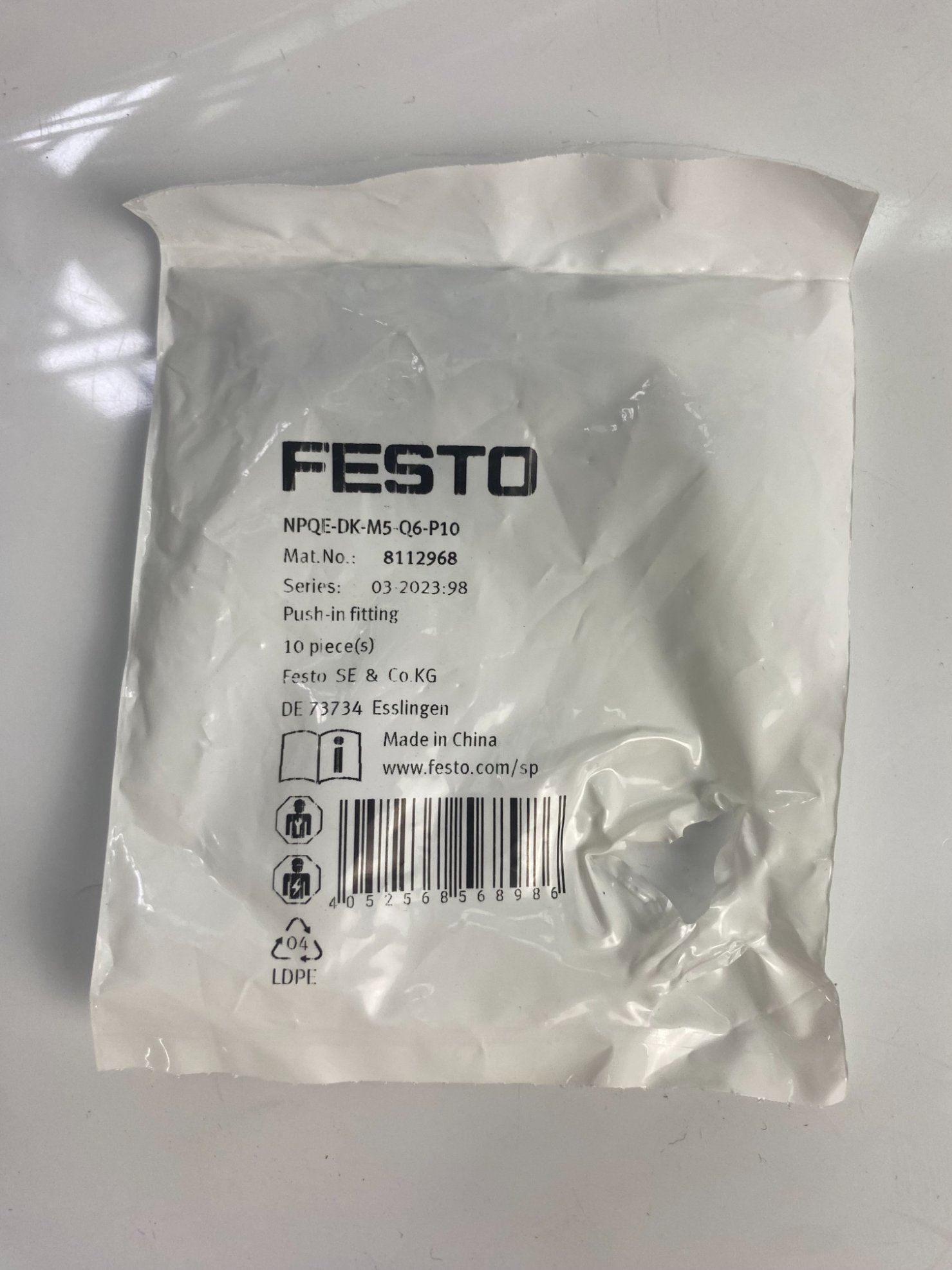

NPQE-DK-M5-Q6-P10
8112968

Technical Data

• Size :Mini

• Nominal size :2.5 mm

• Type of seal on screwed plug :Sealing ring

• Mounting position :optional

• Design :Straight design

• Size of pack :10

• Design :Push-pull principle

• Operating pressure complete temperature range :-0.095 MPa ... 0.8 MPa

• Operating pressure complete temperature range :-0.95 bar ... 8 bar

• Operating pressure complete temperature range :-13.775 psi ... 116 psi

• Operating medium :Compressed air to ISO 8573-1:2010 [7:4:4]

• Note on operating and pilot medium :Lubricated operation possible

• Corrosion resistance class CRC :1 - Low corrosion stress

• LABS (PWIS) conformity :VDMA24364 zone III

• Cleanroom class :Class 4 according to ISO 14644-1

• Ambient temperature :-5 °C ... 60 °C

• Nominal torque :0.8 Nm

• Tolerance for nominal tightening torque :± 5%

• Product weight :3.6 g

• Type of mounting :Internal hexagon, size 2.5 mm

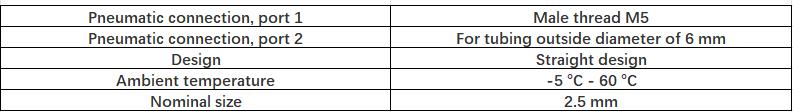

• Pneumatic connection, port 1 :Male thread M5

• Pneumatic connection, port 2 :For tubing outside diameter of 6 mm

• Colour of release ring :Blue

• Note on materials :RoHS-compliant

• Material housing :Brass, nickel-plated

• Material thread seal :NBR High-alloy stainless steel

• Material release ring :POM

• Material tubing seal :NBR

• Material tubing clamp component :Stainless steel
