PRODUCT DETAIL

Home Or Door 6681 OS-1/8-B Germany Original Delivery Fast
Or Door 6681 OS-1/8-B Germany Original Delivery Fast
Or Door 6681 OS-1/8-B Germany Original Delivery Fast

  • OS-1/8-B

  • FESTO

  • 6681

库存： 0
Inquire
Add to Basket

Product specifications and models are not all uploaded, if necessary, you can contact the online personnel. My WhatsApp +8618923754918  Look forward to hearing from you  thank you.


OS-1/8-B

6681

Valve function：OR function
Pneumatic connection, port 1：G1/8
Standard nominal flow rate (standardised to DIN 1343)：500 l/min
Operating pressure：1 bar - 10 bar
Type of mounting：With through-hole

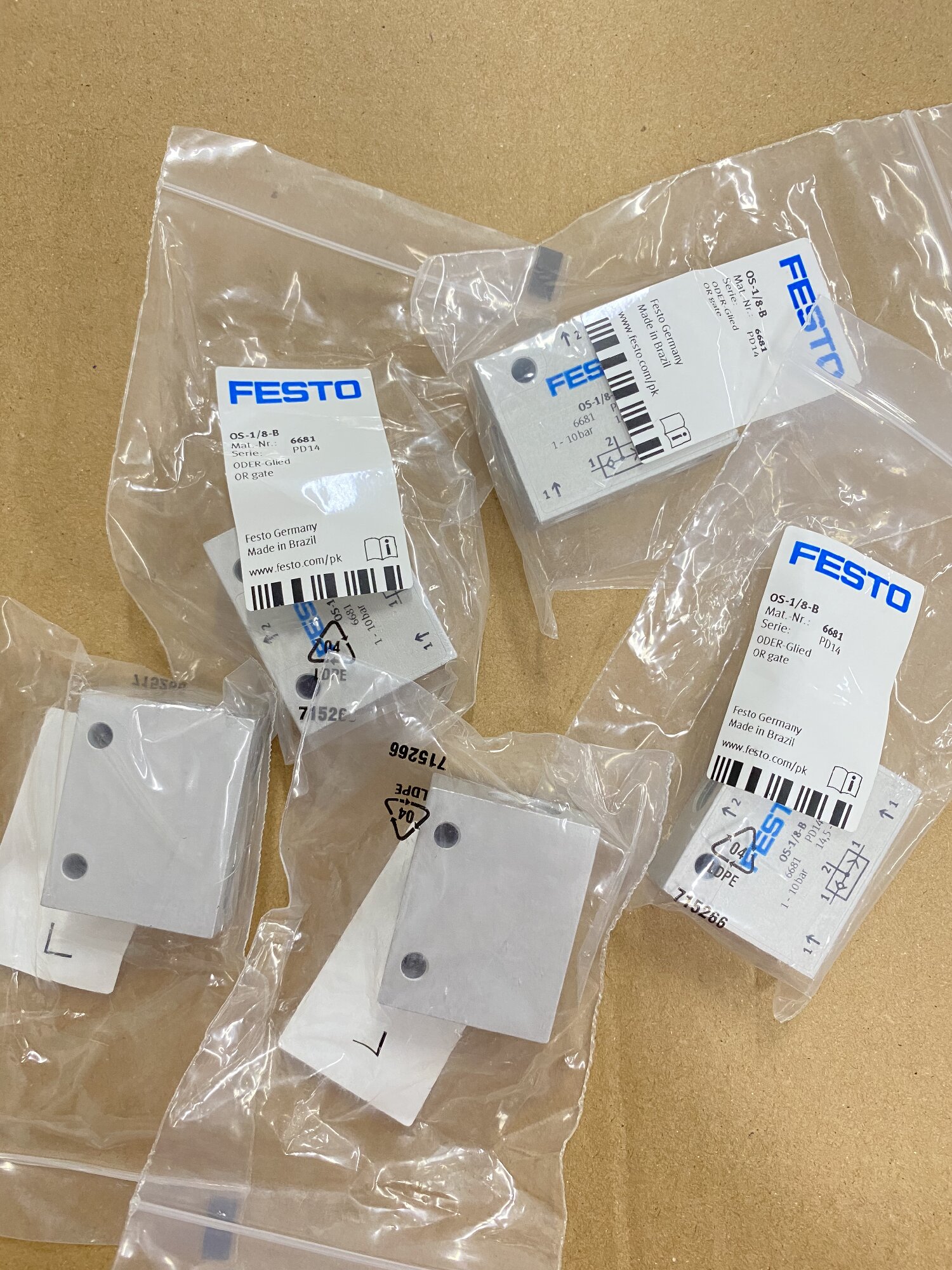

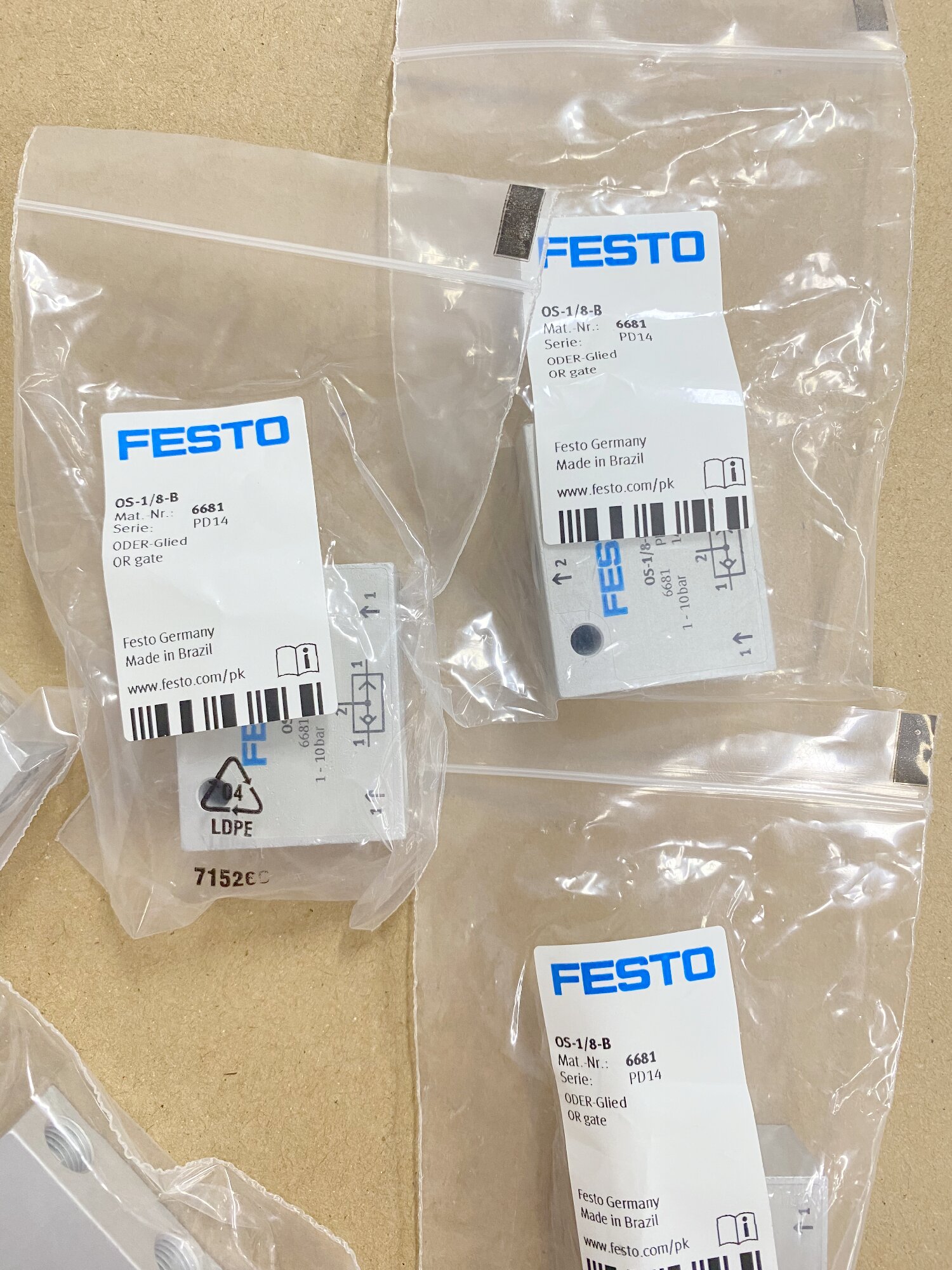

downLoadImgdownLoadImg (1)

Technical Data

  • Valve functionOR function

  • Pneumatic connection, port 1G1/8

  • Pneumatic connection, port 2G1/8

  • Type of mountingWith through-hole

  • Standard nominal flow rate (standardised to DIN 1343)500 l/min

  • Operating pressure1 bar ... 10 bar

  • Ambient temperature-10 °C ... 60 °C

  • Material housingWrought aluminium alloy

  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

  • Nominal size4 mm

  • Mounting positionoptional

  • Symbol00991102

  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

  • LABS (PWIS) conformityVDMA24364-B1/B2-L

  • Media temperature-10 °C ... 60 °C

  • Product weight45 g

  • Pneumatic connection, port 3G1/8

  • Note on materialsRoHS-compliant

  • Material sealsNBR
