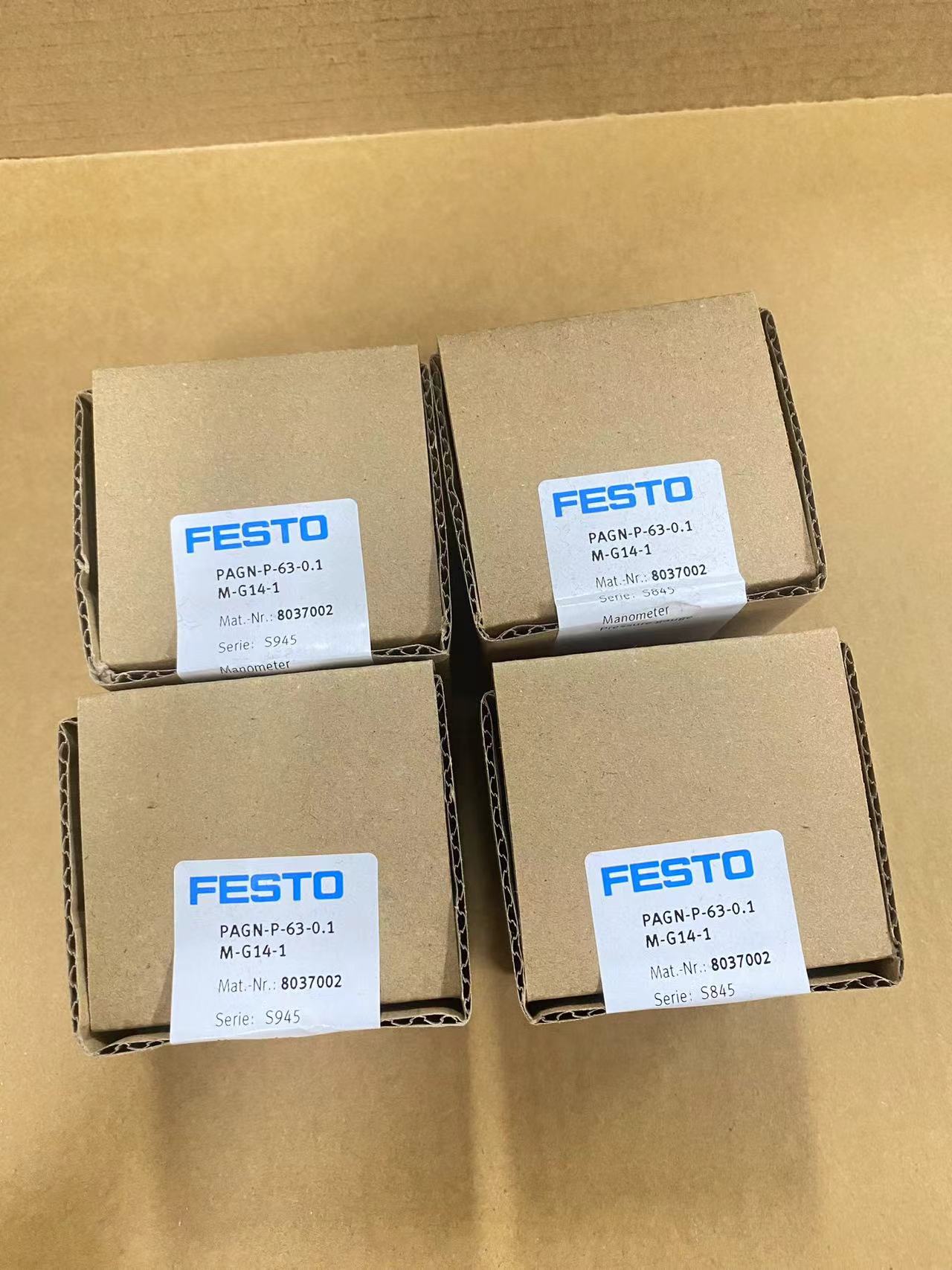

PAGN-P-63-0.1M-G14-1

8037002

Technical Data

• Indicating range0 MPa ... 0.1 MPa

• Symbol00991463

• Conforms to standardEN 837-1

• Nominal size of pressure gauge63

• Explosion protectionThe information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)

• DesignBourdon tube pressure gauge

• Type of mountingFront panel mounting

• Operating mediumInert gases Neutral fluids

• Note on operating and pilot mediumNo acetylene No oxygen

• Operating pressure0 MPa ... 0.1 MPa

• Operating pressure0 bar ... 1 bar

• Operating pressure0 psi ... 14.5 psi

• Alternating load factor0.66

• Measurement accuracy class1

• Degree of protectionIP43

• Storage temperature-40 °C ... 70 °C

• Media temperature-20 °C ... 60 °C

• Ambient temperature-20 °C ... 60 °C

• LABS (PWIS) conformityVDMA24364-B1/B2-L

• Note on materialsRoHS-compliant

• Position of connectionCentred, rear side

• Pneumatic connectionG1/4

• Material in contact with the mediumBrass

• Material screwed plugBrass

• Material housingABS

• Material screenSAN

• Material mounting ringSteel

• Material screwsSteel

• Housing colourBlack

• Product weight120 g

• ScaleDouble scale MPa (outer scale) bar (inner scale)

•
