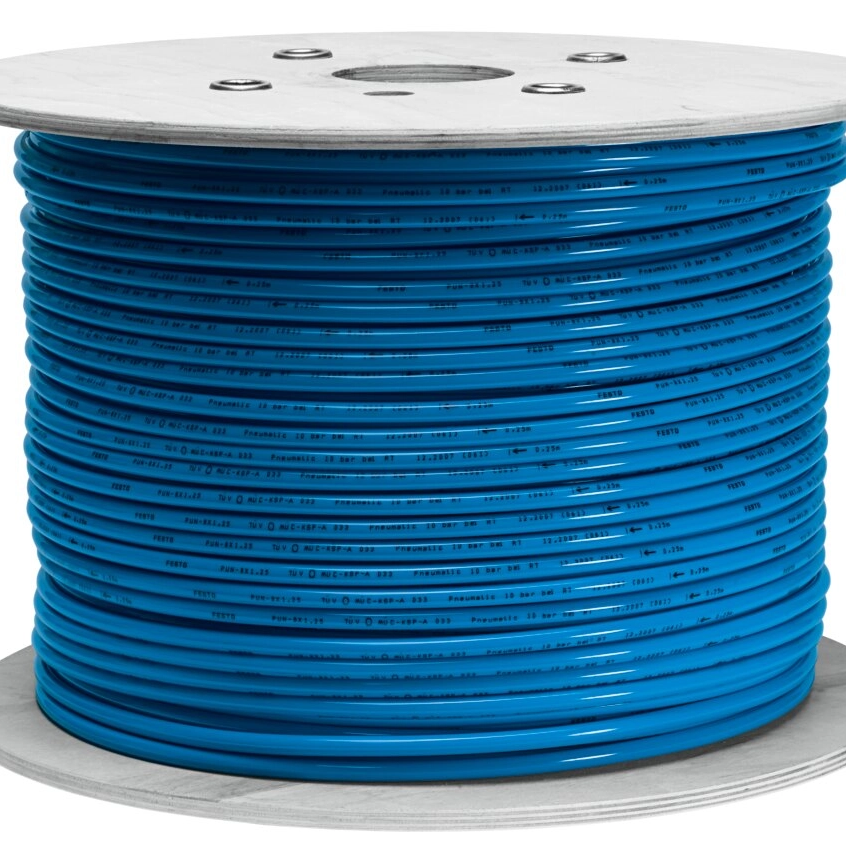

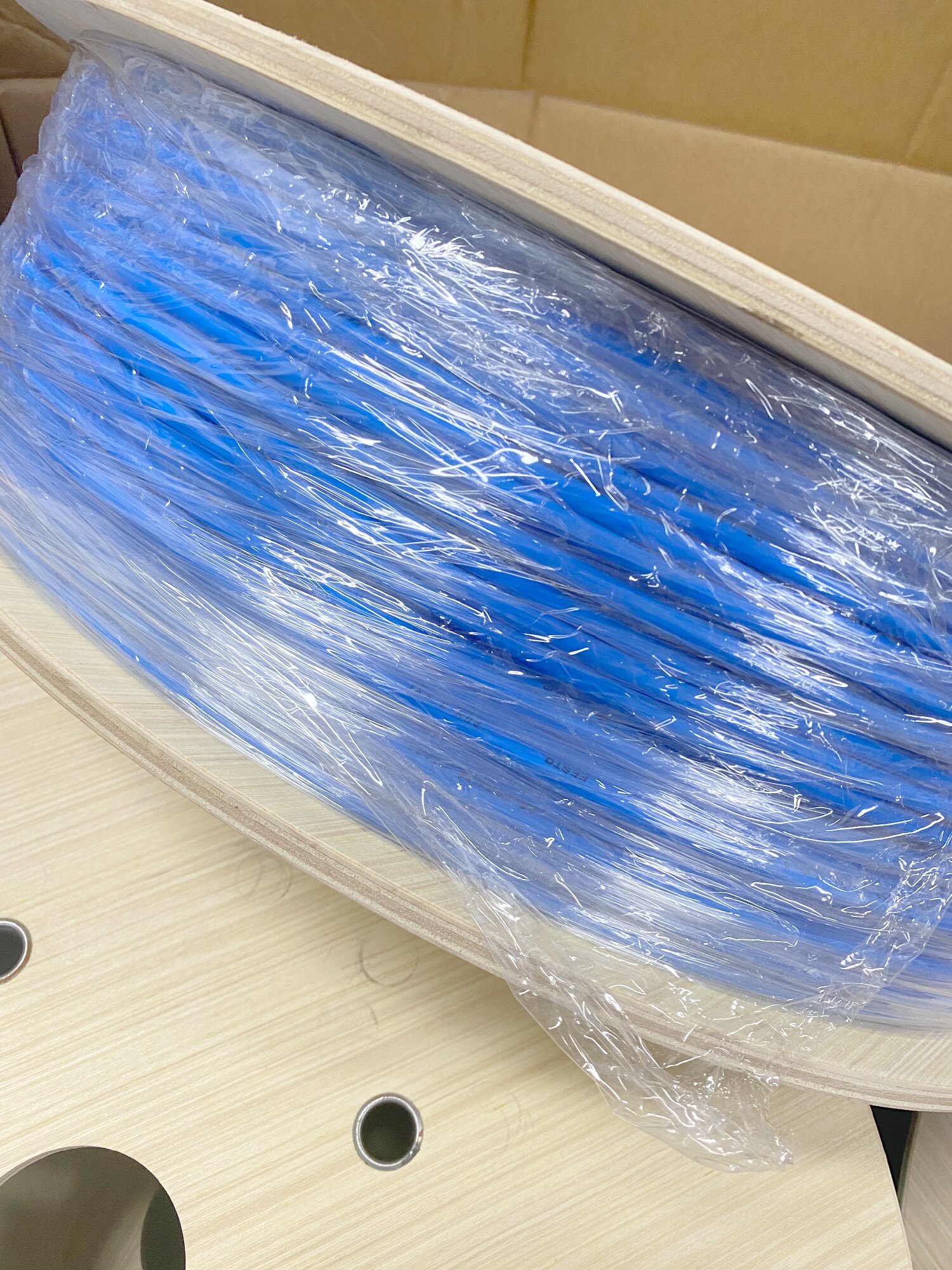

Plastic Gas Pipe 558258 Pun-H-6X1-Bl-500 Germany Original Spot

PUN-H-6X1-BL-500
558258

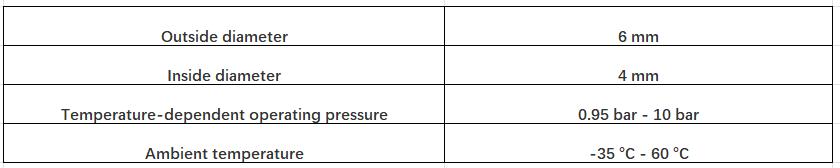

Technical Data

• Outside diameter :6 mm

• Flow-relevant bending radius :26 mm

• Inside diameter :4 mm

• Min. bending radius :10 mm

• Instructions on use :TPE-U Ether based

• Tubing characteristics :Suitable for energy chains

• Operating pressure complete temperature range :-0.095 MPa ... 0.6 MPa

• Operating pressure complete temperature range :-0.95 bar ... 6 bar

• Operating pressure complete temperature range: -13.775 psi ... 87 psi

• Temperature-dependent operating pressure :-0.095 MPa ... 1 MPa

• Temperature-dependent operating pressure :-0.95 bar ... 10 bar

• Temperature-dependent operating pressure :-13.775 psi ... 145 psi

• Note on operating pressure:Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C

• Approval :German Technical Control Board (TÜV)

• Certificate issuing authority :B 013277 0506 00

• Operating medium :Compressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)

• Fire test material :UL94 HB

• LABS (PWIS) conformity :VDMA24364-B2-L

• Suitability for the production of Li-ion batteries :Metals with more than 1% by mass of copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils

• Cleanroom class :Element installed statically, no meaningful evaluation possible according to ISO 14644-1

• Suitable for use with food :See supplementary material information

• Ambient temperature :-35 °C ... 60 °C

• Product weight according to length :0.0183 kg/m

• Pneumatic connection :For push-in connector O.D. 6 mm For barbed fitting I.D. 4 mm with union nut

• Colour :Blue

• Shore hardness :D 52 +/-3

• Note on materials :RoHS-compliant

• Material tubing :TPE-U(PU)
