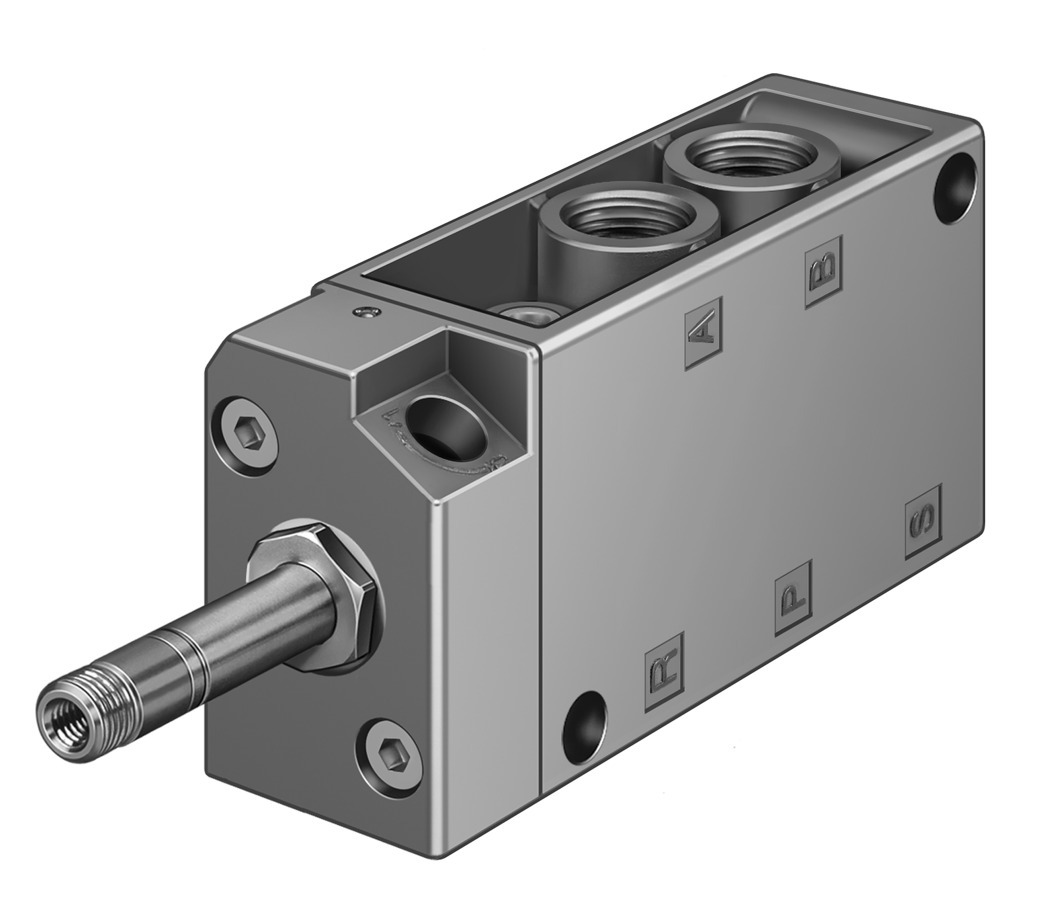

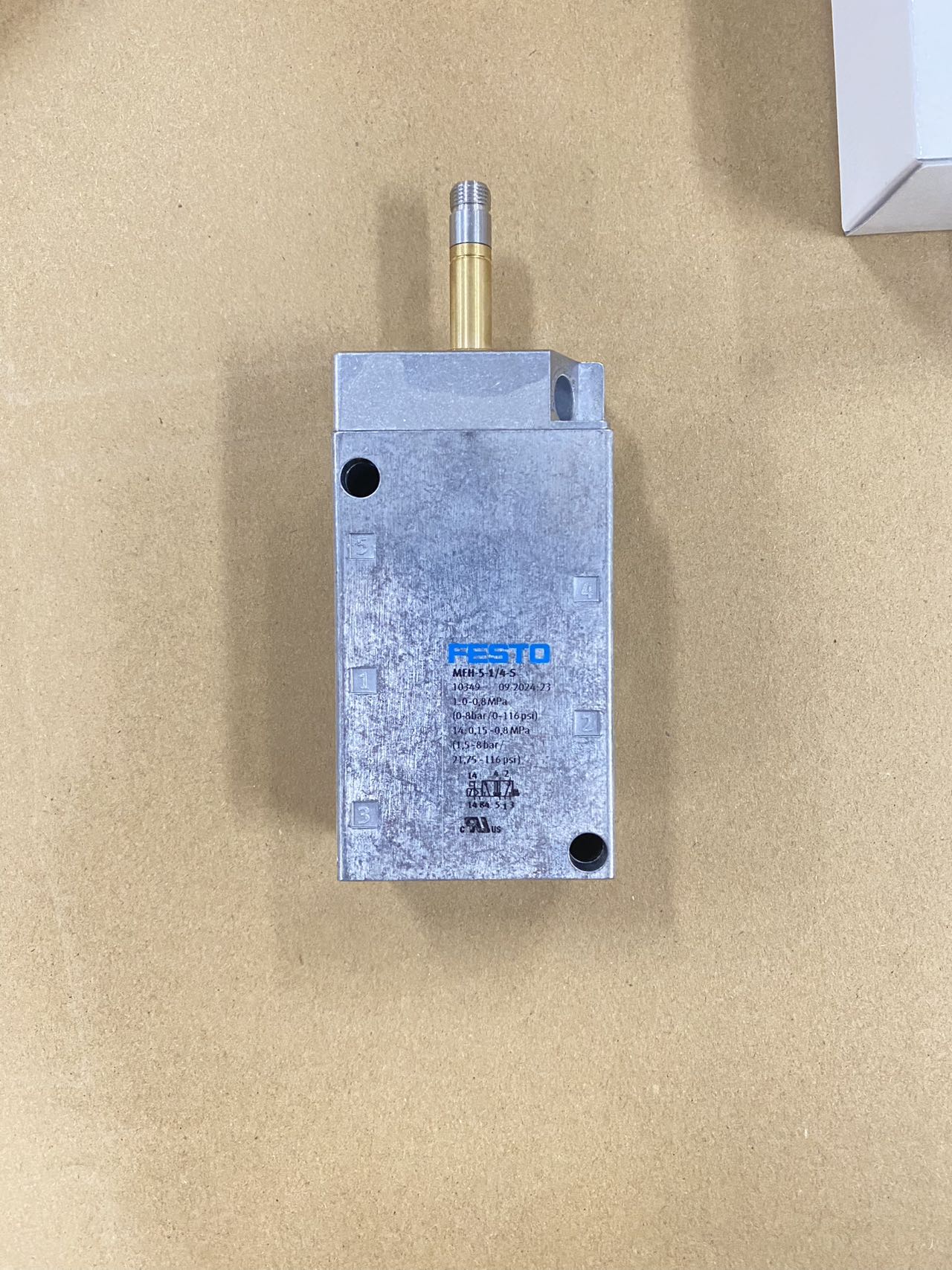

MFH-5-1/4-S
10349
Valve function5/2-way, monostable
Type of actuationElectric
Construction width30.5 mm
Standard nominal flow rate (standardised to DIN 1343)1000 l/min
pneumatic working portG1/4
Operating voltageVia solenoid coil, must be ordered separately
Operating pressure0 MPa ... 0.8 MPa
Operating pressure0 bar ... 8 bar
DesignPoppet seat
Type of resetMechanical spring
Approvalc UL us - Recognized (OL)
Degree of protectionIP65
Nominal size7 mm
Grid dimension32 mm
Exhaust-air functionWith flow control option
Sealing principleSoft
Mounting positionoptional
Manual overrideDetenting
Type of pilotingPilot actuated
Pilot air supplyExternal
Flow directionNon-reversible
Symbol00991024
lapUnderlap
Pilot pressure0.15 MPa ... 0.8 MPa
Pilot pressure1.5 bar ... 8 bar
b value0.19
C value4.49 l/sbar
Switching time off29 ms
Switching time on9 ms
Max. positive test pulse with 0 signal2200 µs
Max. negative test pulse with 1 signal3700 µs
Characteristic coil dataSee solenoid coil, to be ordered separately
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-20 °C ... 60 °C
Media temperature-10 °C ... 60 °C
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-5 °C ... 40 °C
Product weight290 g
Electrical connectionVia F coil, to be ordered separately
Type of mountingEither: On manifold rail With through-hole
Pilot exhaust port 84M5
Pilot air port 14M5
Pneumatic connection, port 1G1/4
Pneumatic connection, port 2G1/4
Pneumatic connection, port 3G1/4
Pneumatic connection, port 4G1/4
Pneumatic connection, port 5G1/4
Note on materialsRoHS-compliant
Material sealsNBR TPE-U(PU)
Material housingDie-cast aluminium
