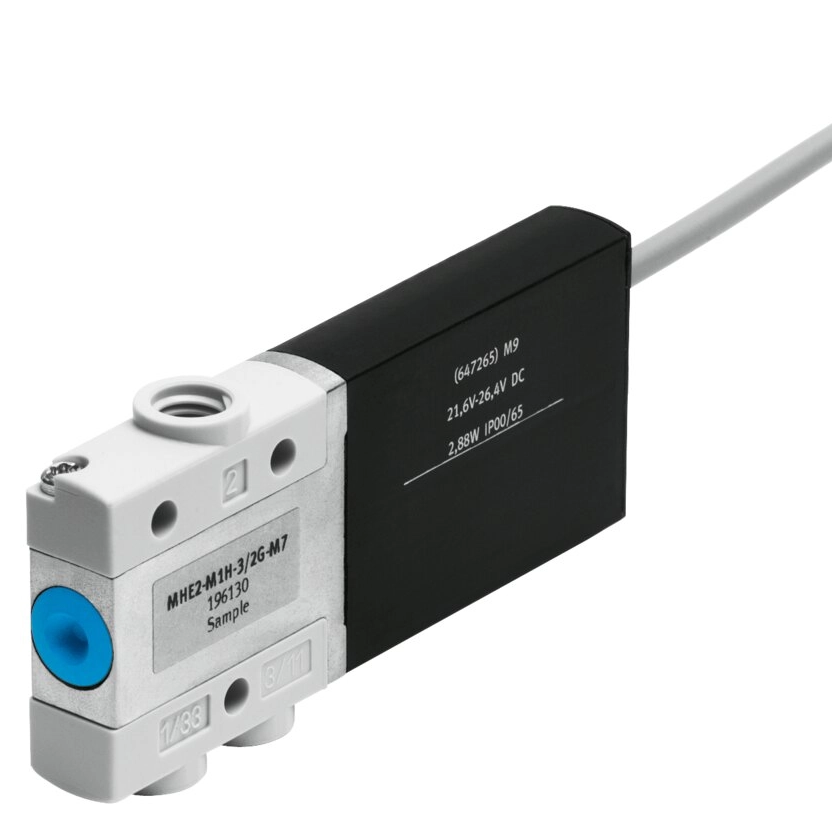

Pneumatic Control Valve 196133 Mhe2-Ms1h-3/2g-M7-K Solenoid Valve

Product specifications and models are not all uploaded, if necessary, you can contact the online personnel. Look forward to hearing from you  thank you.

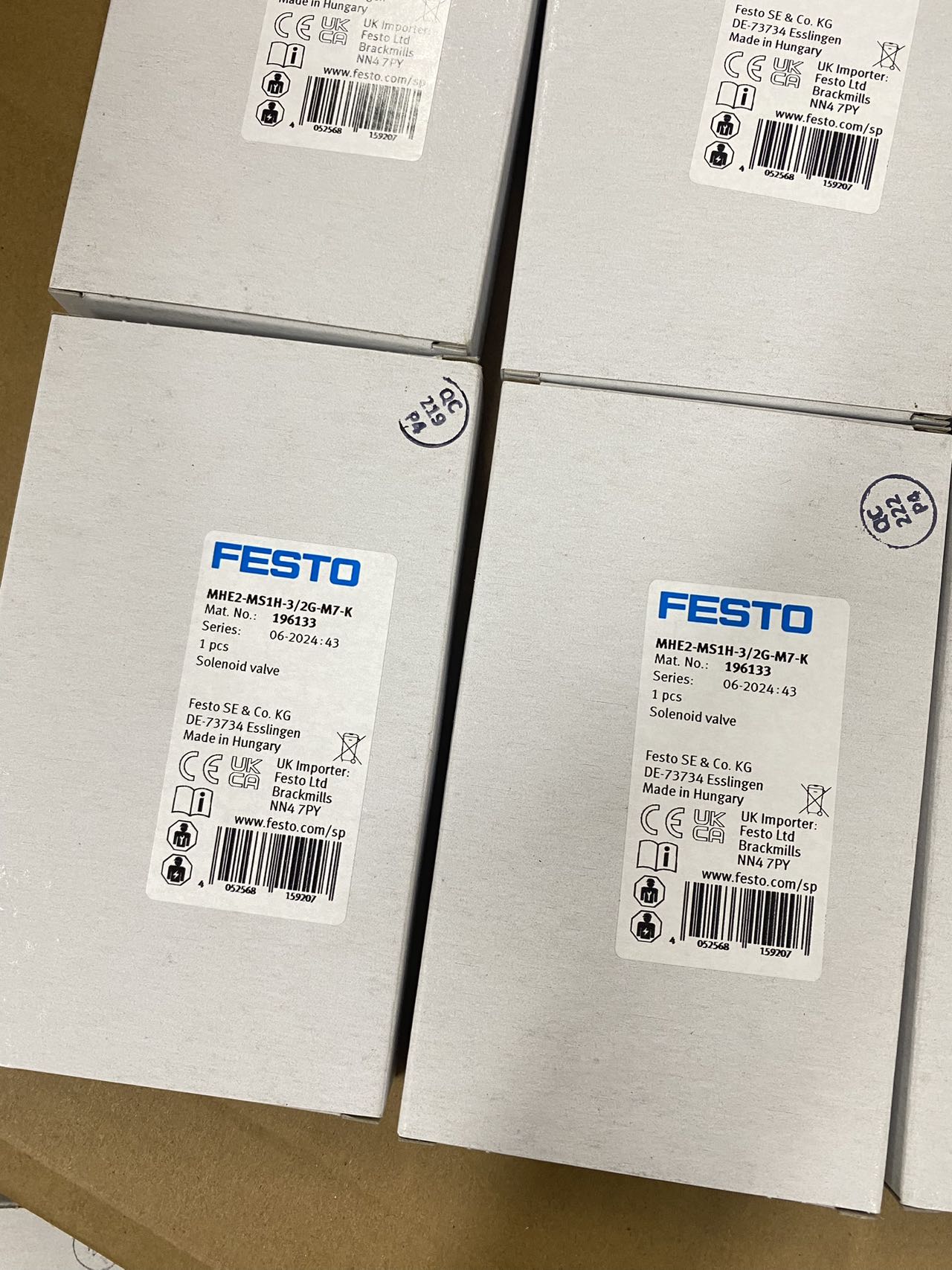

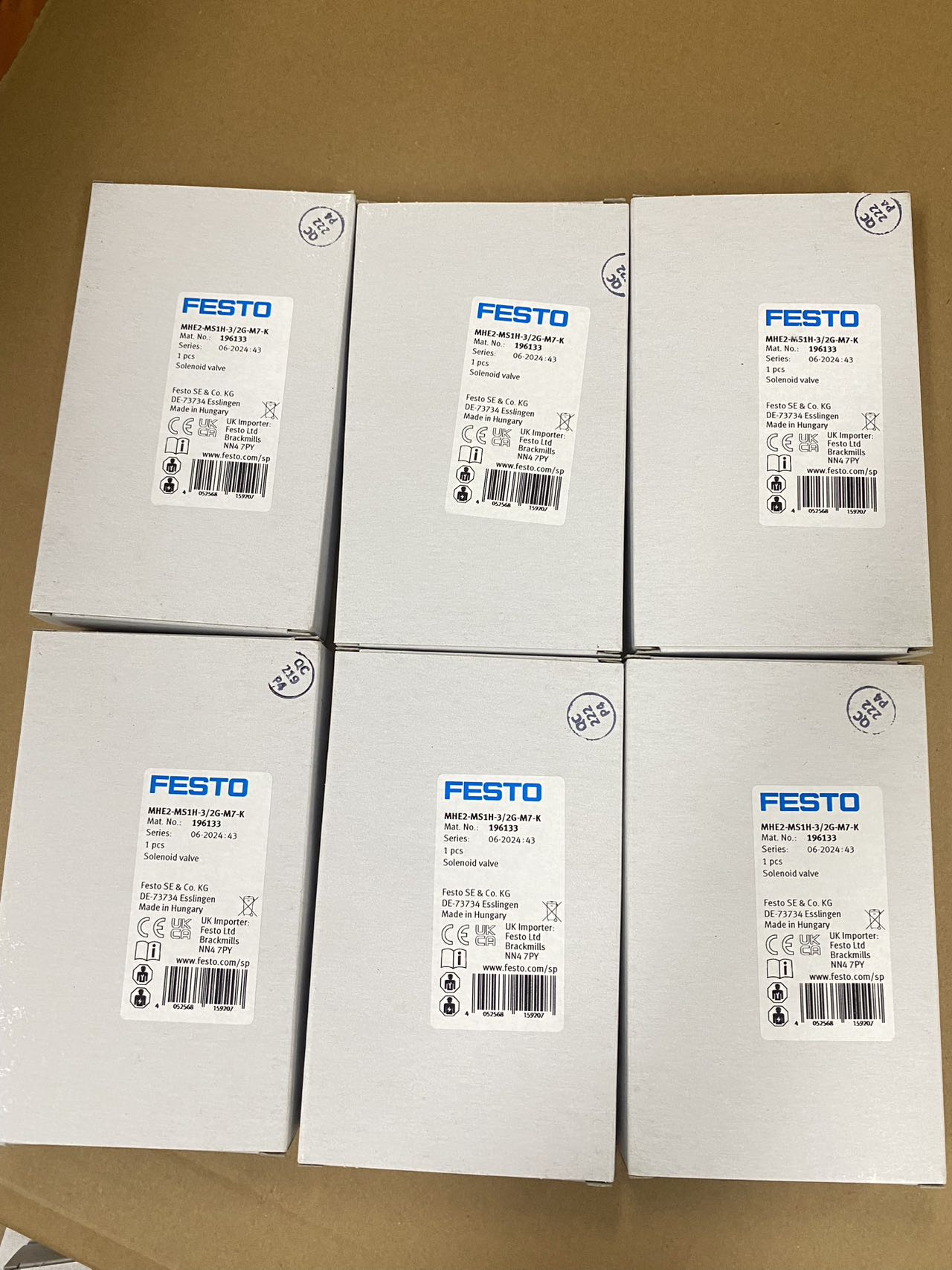

MHE2-MS1H-3/2G-M7-K

196133

Technical Data

• Valve function3/2-way, closed, monostable

• Type of actuationElectric

• Construction width10 mm

• Standard nominal flow rate (standardised to DIN 1343)100 l/min

• pneumatic working portM7

• Operating voltage24V DC

• Operating pressure-0.09 MPa ... 0.8 MPa

• Operating pressure-0.9 bar ... 8 bar

• Operating pressure-13.05 psi ... 116 psi

• DesignPressure-relieved poppet valve

• Type of resetMechanical spring

• Degree of protectionIP55

• ApprovalRCM trademark c UL us - Recognized (OL)

• CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive

• UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions

• Nominal size2 mm

• Grid dimension14 mm

• Note on grid dimensionMinimum distance between the valves is 4 mm

• Exhaust-air functionWith flow control option

• Sealing principleSoft

• Mounting positionoptional

• Manual overrideNon-detenting

• Type of pilotingDirect

• Flow directionReversible with restrictions

• Symbol00991308

• lapUnderlap

• Reverse polarity protectionBipolar

• Additional functionsSpark arresting Holding current reduction Protective circuit

• Operating pressure, reversible-0.09 MPa ... 0.1 MPa

• Operating pressure, reversible-0.9 bar ... 1 bar

• Operating pressure, reversible-13.05 psi ... 14.5 psi

• Max. switching frequency330 Hz

• Switching time off2 ms

• Switching time on1.7 ms

• Tolerance switching time off+10%/-30%

• Tolerance switching time on+10%/-30%

• Switching time dispersion from 1 Hz0.2 ms

• Duty cycle100%

• Characteristic coil data24 V DC: low-current phase 1.25 W, high-current phase 5.0 W

• Permissible voltage fluctuations+/- 10 %

• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

• Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

• Restrictions for environmental and media temperatureAs a function of switching frequency (see graph)

• Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

• Corrosion resistance class CRC2 - Moderate corrosion stress

• LABS (PWIS) conformityVDMA24364-B1/B2-L

• Cleanroom classClass 6 according to ISO 14644-1

• Media temperature-5 °C ... 60 °C

• Ambient temperature-5 °C ... 60 °C

• Product weight60 g

• Electrical connectionCable

• Cable length2.5 m

• Type of mountingWith through-hole

• Pneumatic connection, port 1M7

• Pneumatic connection, port 2M7

• Pneumatic connection, port 3M7

• Note on materialsRoHS-compliant

• Material sealsHNBR NBR

• Material housingDie-cast zinc, coated

• Material cable sheathPUR

• Material screwsGalvanised steel
