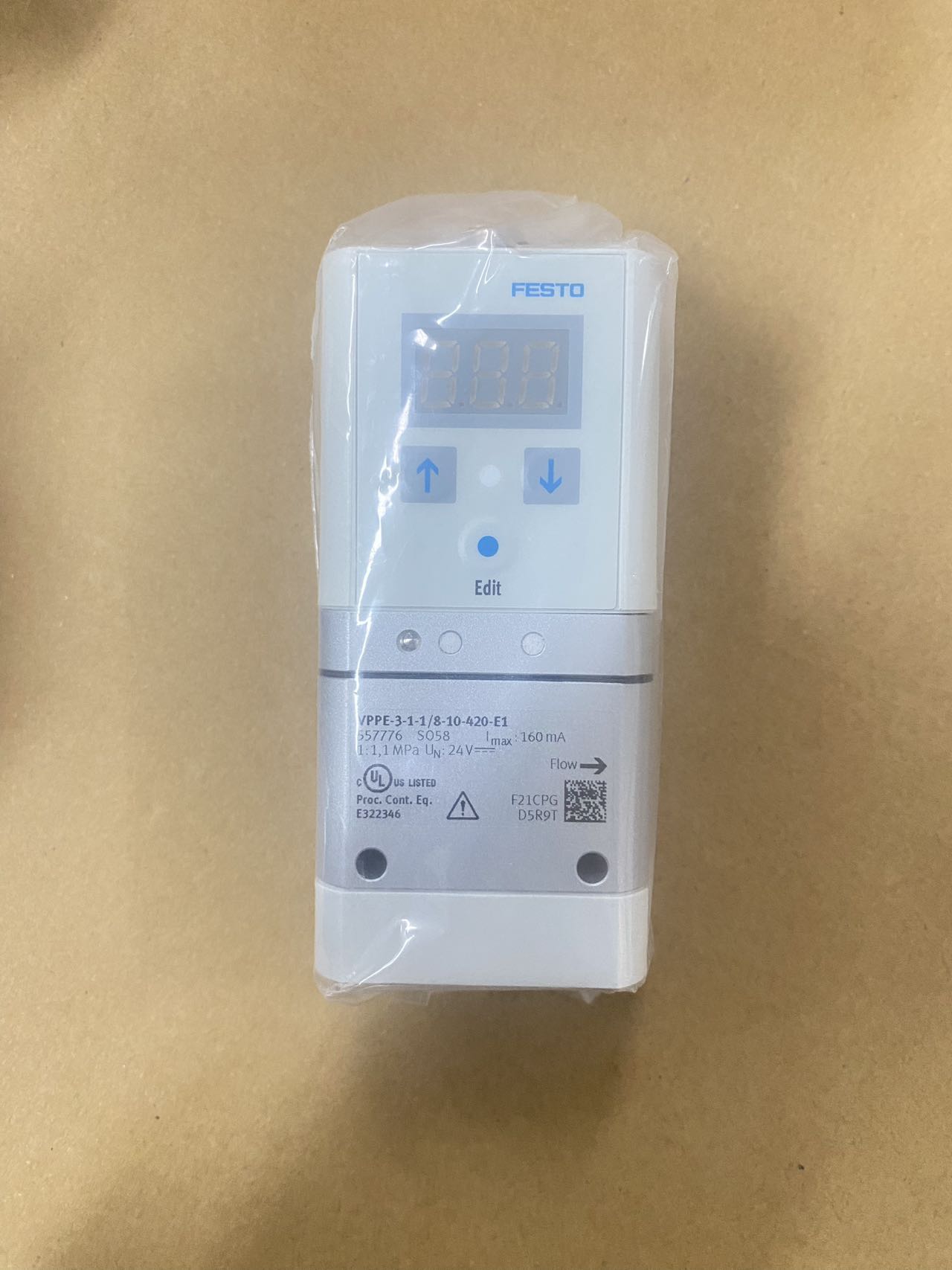

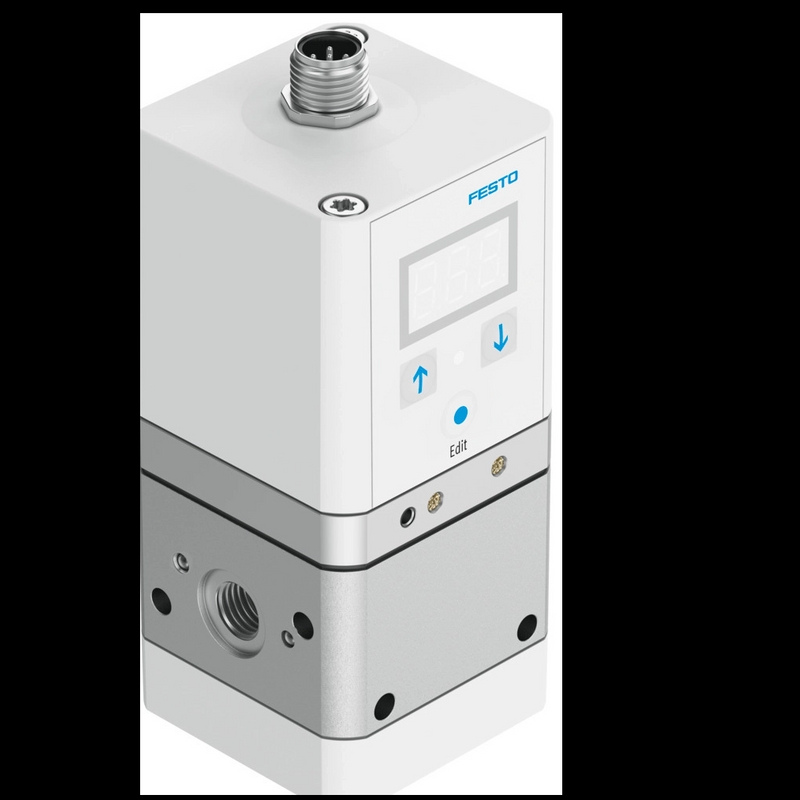

Proportional Valve 557776 Vppe-3-1-1/8-10-420-E1 Original Delivery Fast

VPPE-3-1-1/8-10-420-E1

557776

Technical Data

• Nominal size, supply5 mm

• Nominal size, exhaust2.5 mm

• Type of actuationElectric

• Sealing principleSoft

• Mounting positionoptional Preferably vertical

• DesignPiloted diaphragm regulator

• Short circuit current ratingFor all electrical connections

• Safety instructionsSafety position VPPE: if the power supply cable is interrupted, output pressure is maintained unregulated.

• Symbol00995303

• Reverse polarity protectionFor all electrical connections

• Type of resetMechanical spring

• Type of pilotingPilot actuated

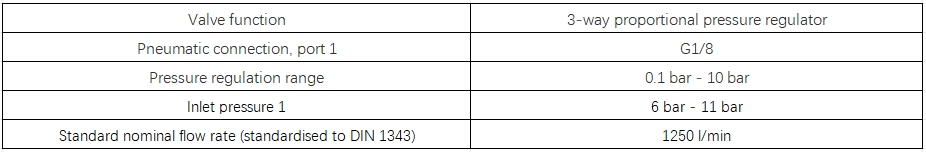

• Valve function3-way proportional pressure regulator

• Display typeLED indicator 3-digit

• Pressure regulation range0.01 MPa ... 1 MPa

• Pressure regulation range0.1 bar ... 10 bar

• Inlet pressure 16 bar ... 11 bar

• Inlet pressure 10.6 MPa ... 1.1 MPa

• Max. pressure hysteresis0.005 MPa

• Max. pressure hysteresis0.05 bar

• Max. pressure hysteresis0.725 psi

• Standard nominal flow rate (standardised to DIN 1343)1250 l/min

• Operational voltage range DC21.6 V ... 26.4 V

• Max. current consumption160 mA

• Duty cycle100%

• Max. electrical power consumption4.2 W

• Residual ripple10 %

• Switching outputPNP

• Signal range analogue output4 - 20 mA

• Signal range analogue input4 - 20 mA

• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases

• Note on operating and pilot mediumLubricated operation not possible

• ApprovalRCM trademark c UL us listed (OL)

• KC markKC-EMV

• CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive

• UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions

• Certificate issuing authorityUL E322346

• Corrosion resistance class CRC2 - Moderate corrosion stress

• LABS (PWIS) conformityVDMA24364-B2-L

• Media temperature10 °C ... 50 °C

• Degree of protectionIP65

• Ambient temperature0 °C ... 60 °C

• Product weight390 g

• Linearity1 %FS

• Hysteresis0.5 %FS

• Reproducibility0.5 %FS

• Total accuracy1.25%FS

• Temperature cooefficient0.04 %/K

• Electrical connection5-pin M12 Plugs

• Type of mountingWith through-hole

• Pneumatic connection, port 1G1/8

• Pneumatic connection, port 2G1/8

• Pneumatic connection, port 3G1/8

• Note on materialsRoHS-compliant

• Material housingAnodised wrought aluminium alloy
