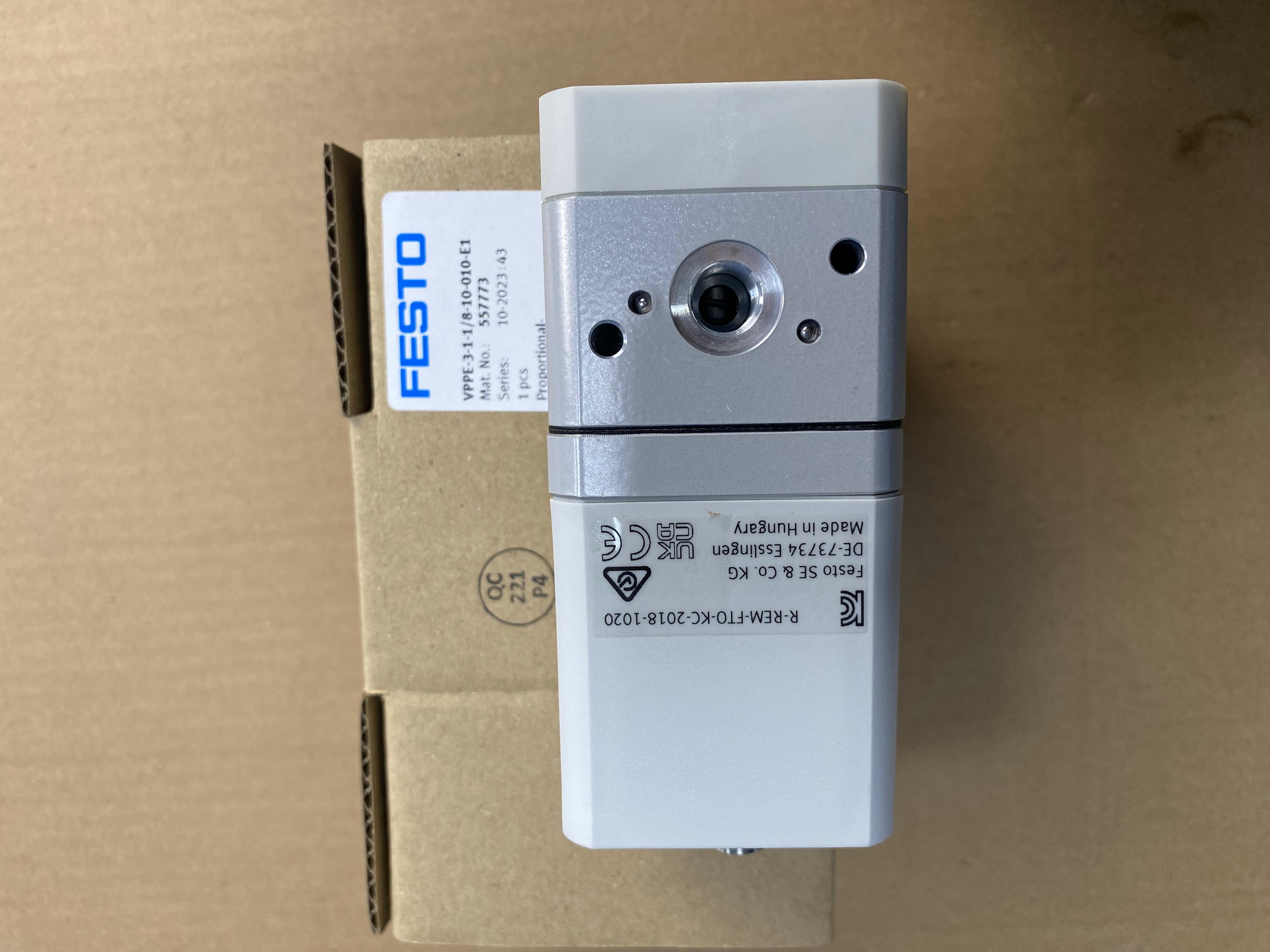

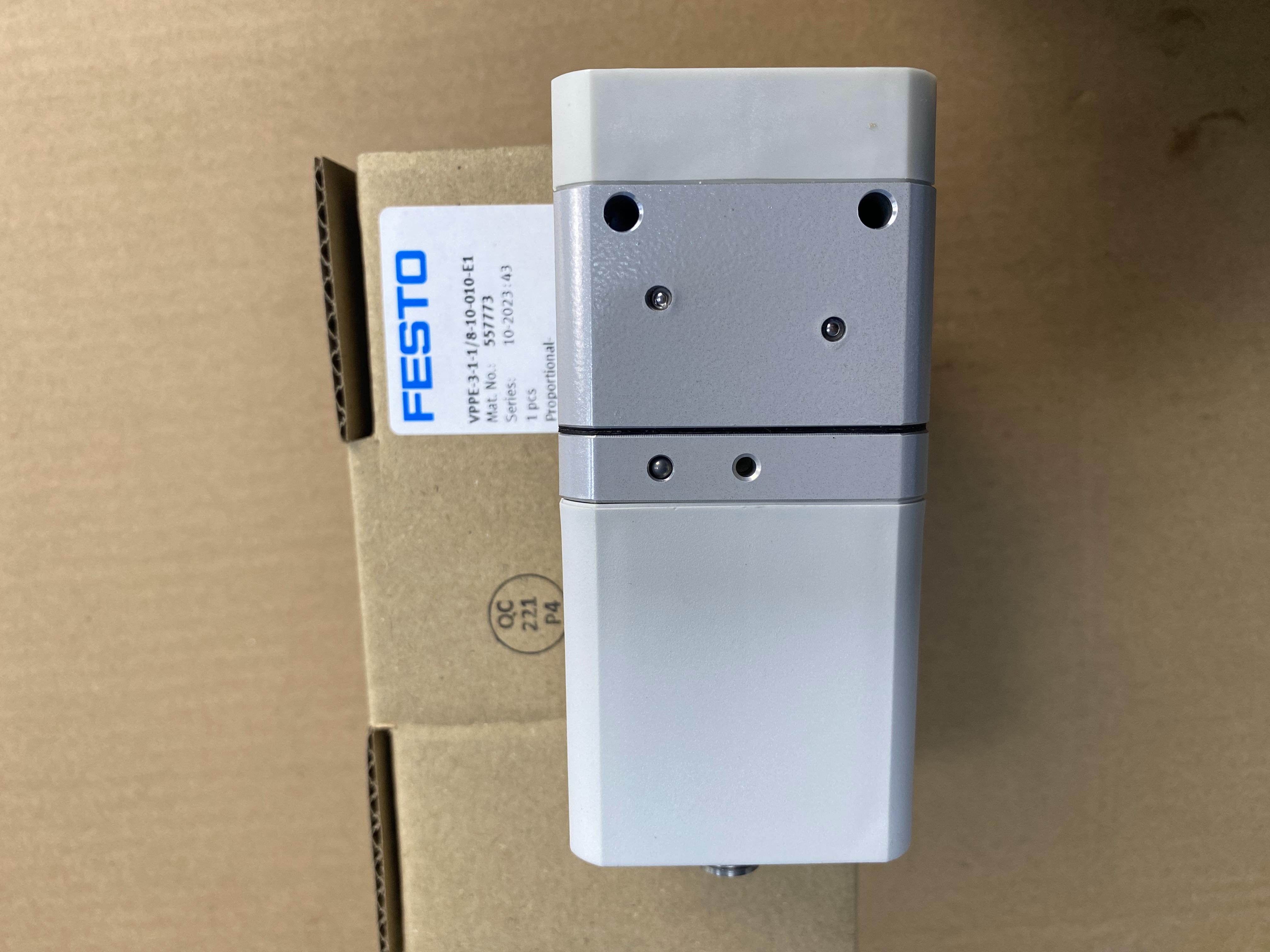

Proportional pressure control valves 3-way proportional pressure regulator VPPE-3-1-1/8-10-010-E1 557773

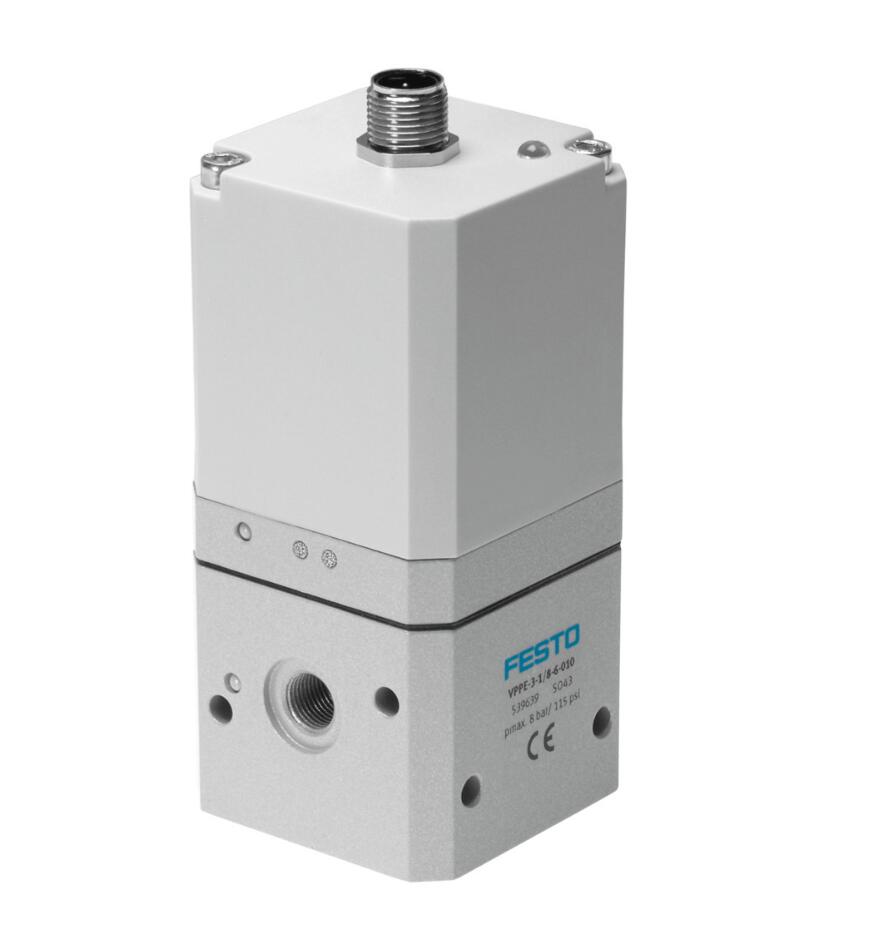

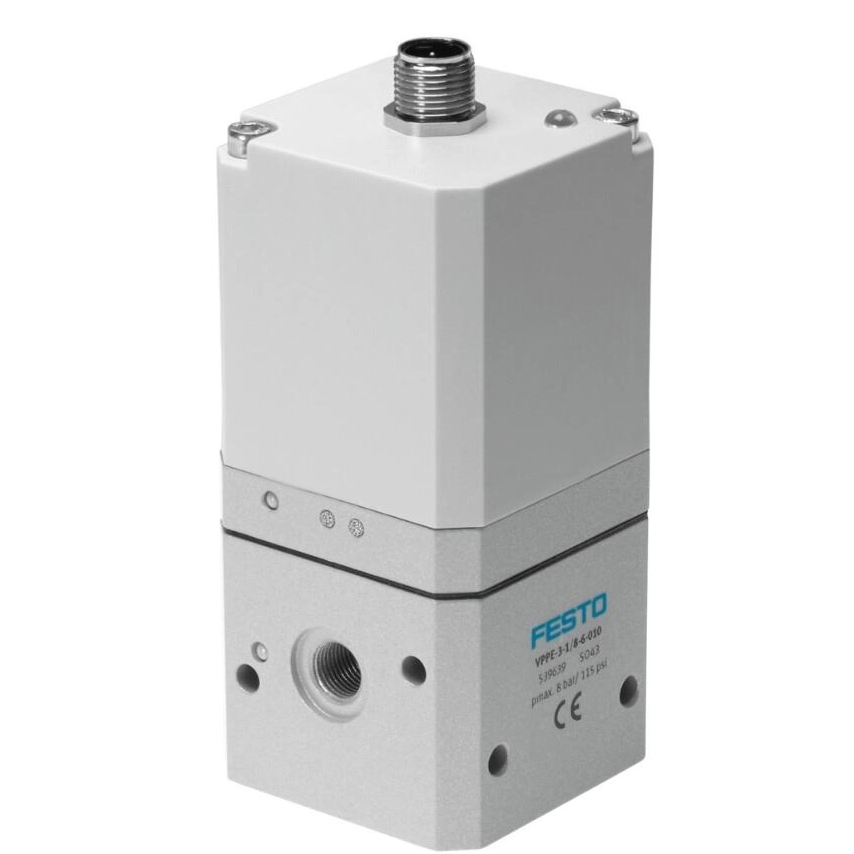

Proportional pressure regulator VPPE

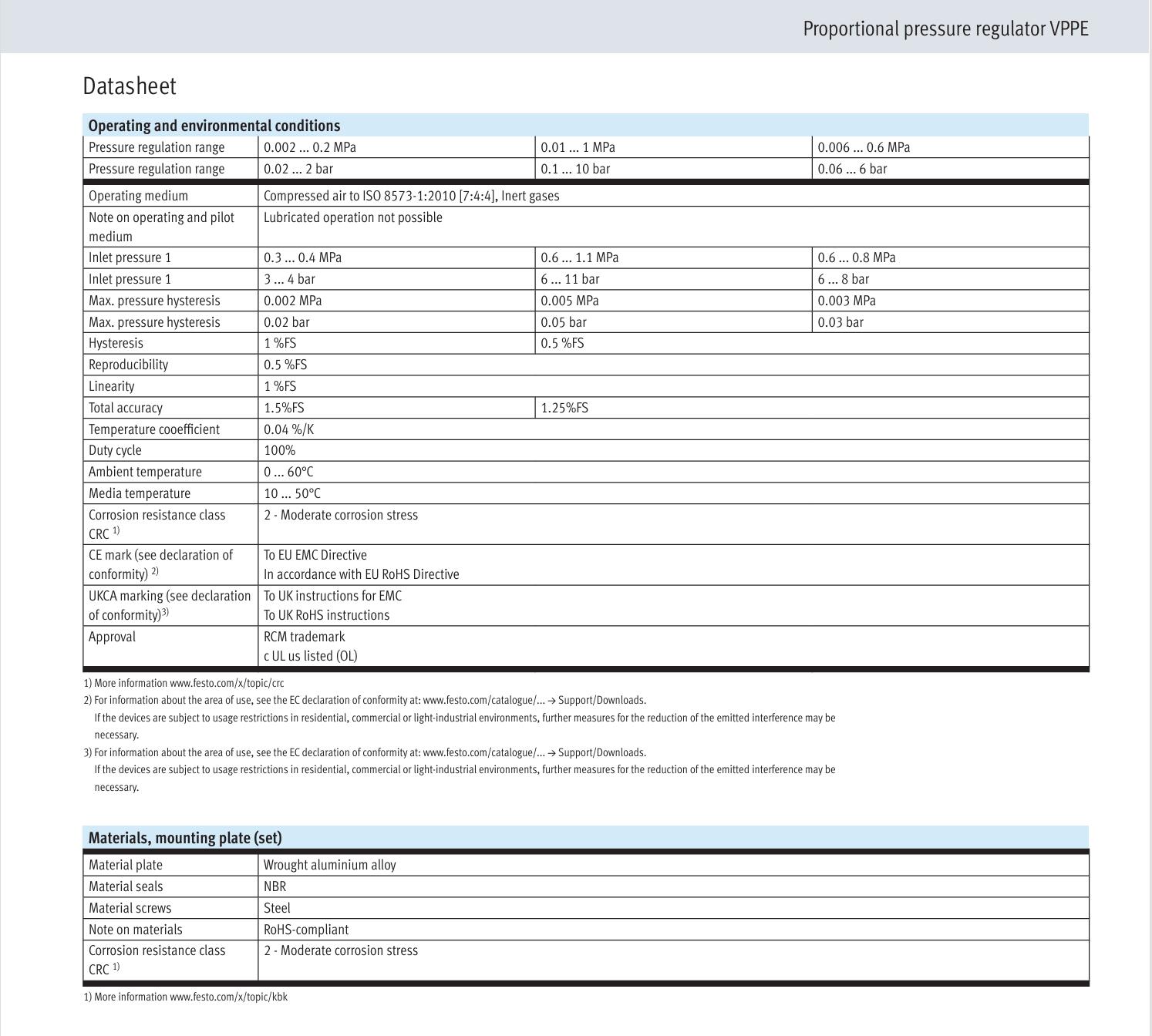

Characteristics

At a glance

Design:

 • Some selected types of the pressure regulator VPPE can be screwed onto a profile strip. This has the advantage that the profile strip can be used to create a central compressed air supply.

 • The air can be fed into the profile strip at one end, at both ends through end plates, or using an intermediate air supply module (for increased air requirements).

 • The holes for the profile strip must be drilled according to the assembly instructions. The pressure regulators VPPE are screwed to the profile strip using the mounting plate. The end plates are screwed to the profile strip on the front left and right. See the assembly instructions for further information: Internet: vppe

 Compressed air supply on the profile strip:

 • When using the profile strip as a central compressed air supply, make sure that the required compressed air supply is guaranteed. Bear in mind that an intermediate air supply module needs a valve position. The intermediate air supply module takes up one VPPE valve position.

 Recommendation for compressed air supply:

 • For example, with tubing diameter Ø 16 mm with simultaneous max. flow rate for all valves, the following applies: Compressed air supply – number of valves: –At one end – max. 5 valves, At both sides – max. 10 valves, With intermediate air supply – max. 5 valves each

 • Intermediate supply modules must always be placed centrally. Several intermediate supply modules must be evenly distributed.

 Note:

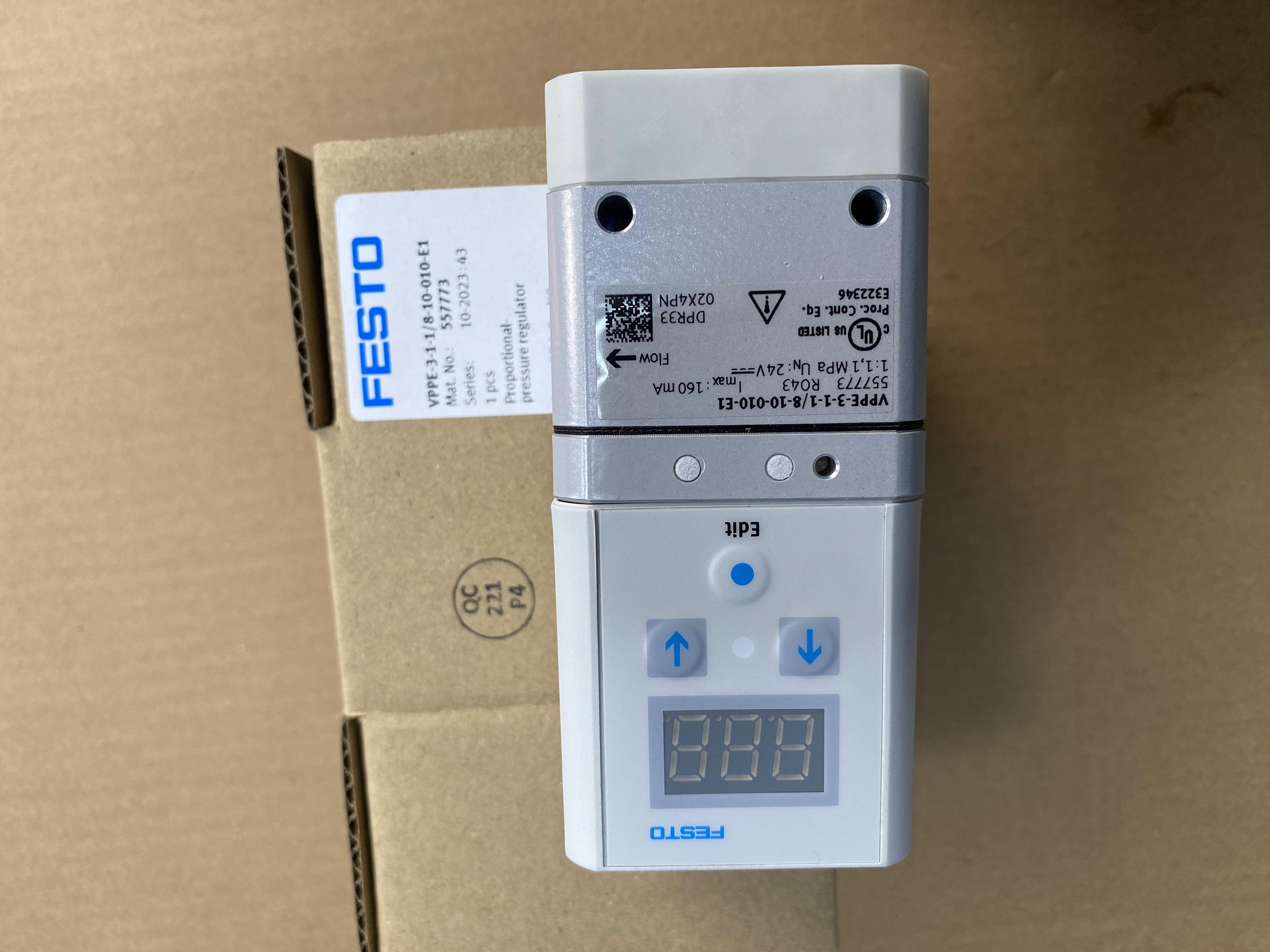

 • Only the following types of proportional-pressure regulators VPPE can be mounted on profile strips using a mounting plate: valve VPPE with display and top part turned 90°, VPPE-...-E1T

 • Further information on mounting proportional-pressure regulators VPPE as well as intermediate supply modules on profile strips can be found in the assembly in structions: Internet: vppe
