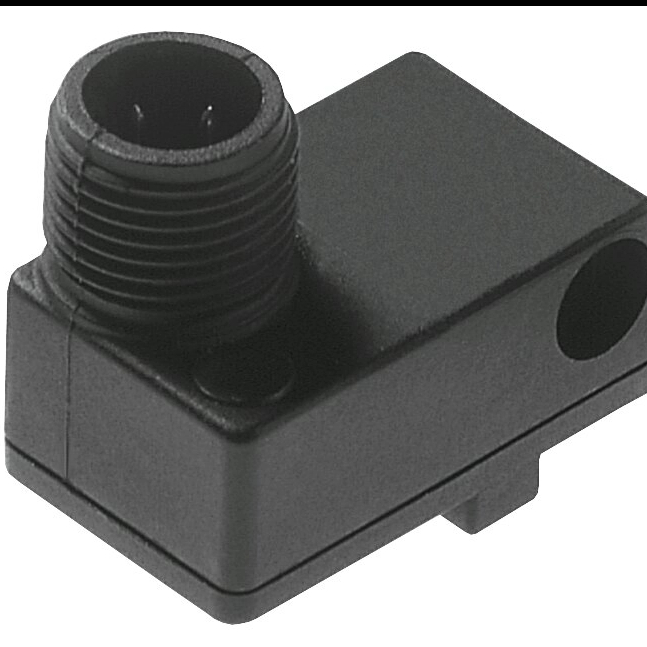

Smto-8e-PS-M12-LED-24
FESTO
171179
| Availability: | |
|---|---|
| Quantity: | |
Product specifications and models are not all uploaded, if necessary, you can contact the online personnel. My WhatsApp +8618923754918 Look forward to hearing from you thank you.

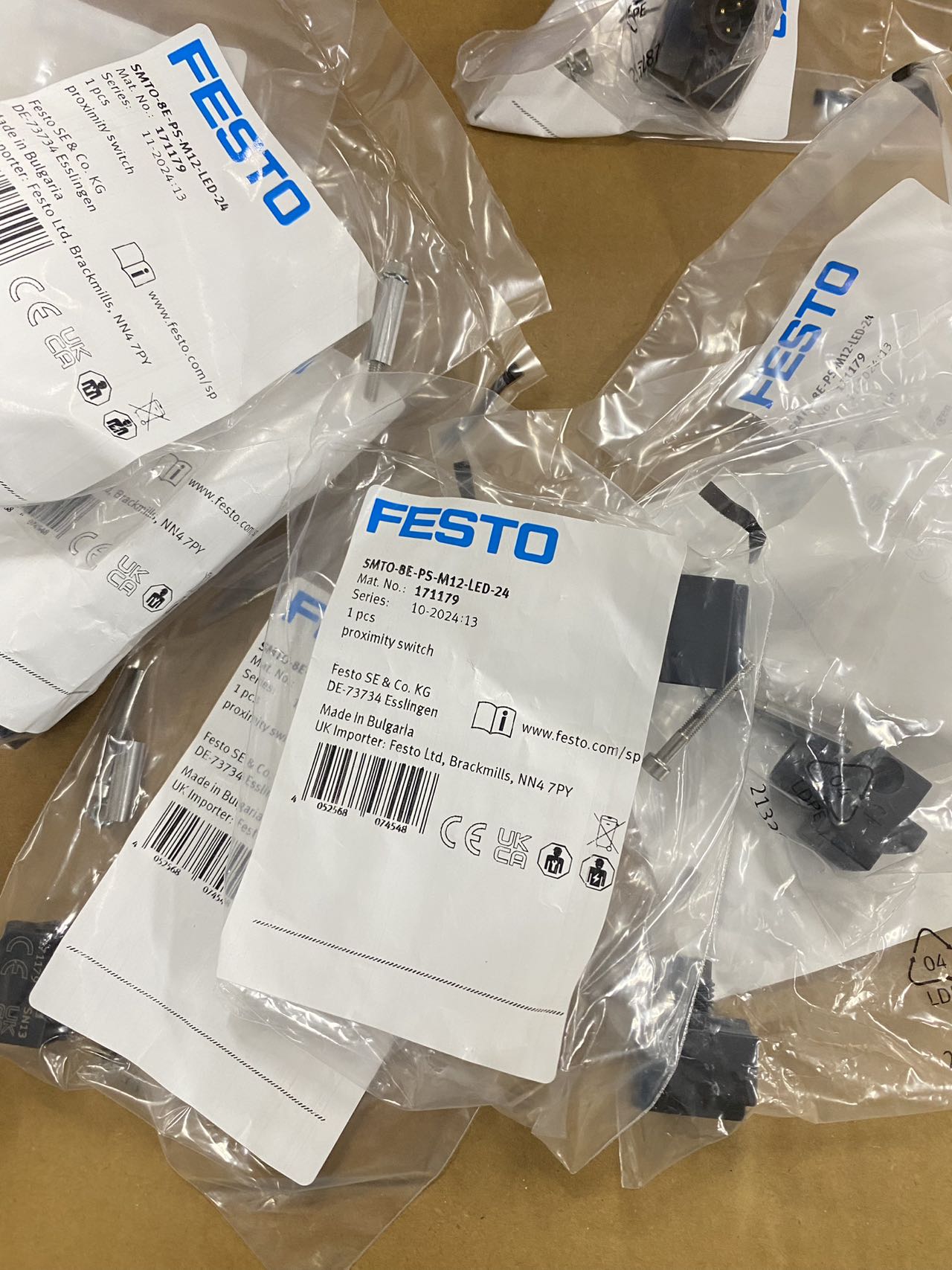

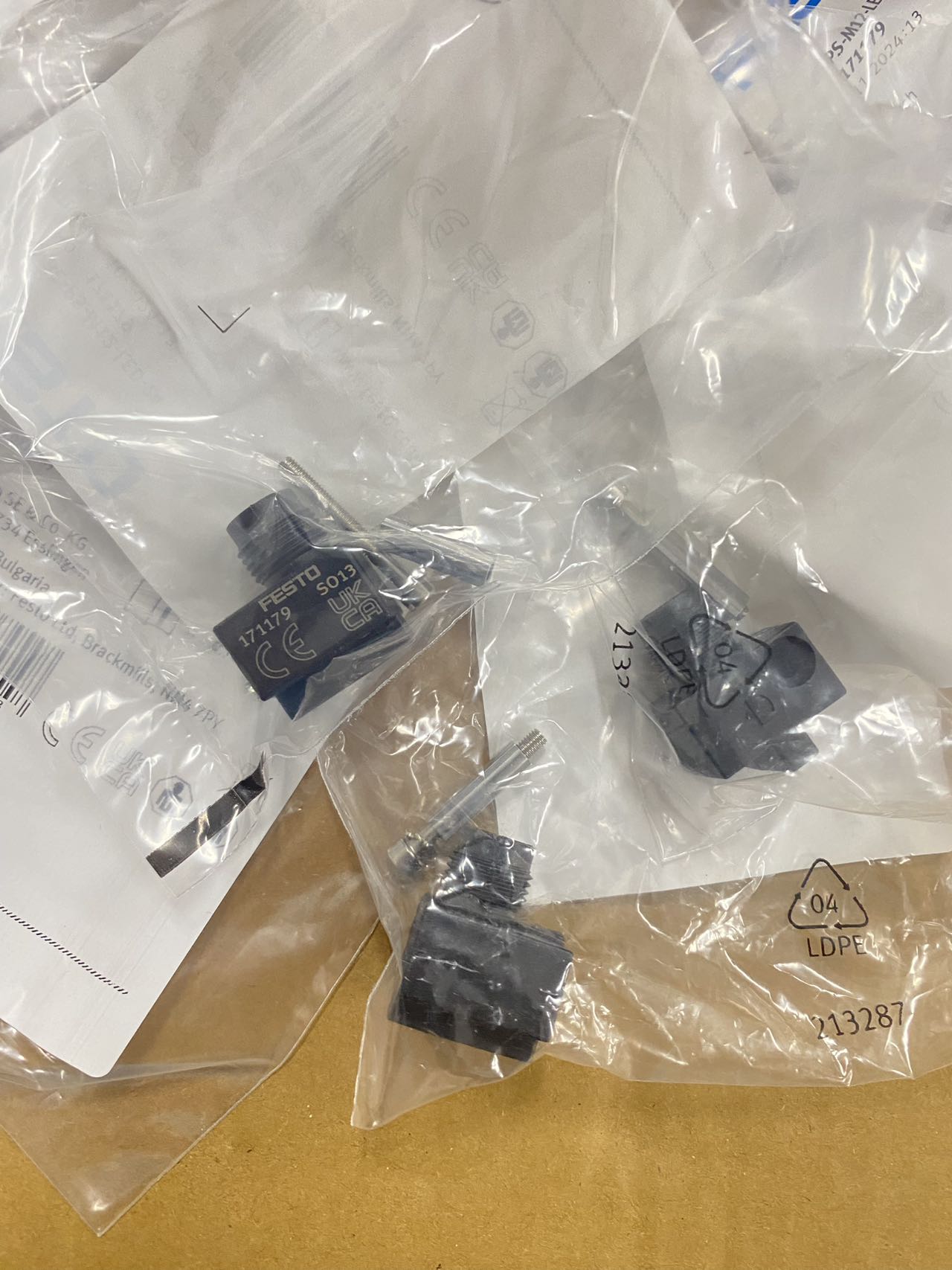

SMTO-8E-PS-M12-LED-24
171179
DesignFor T-slot
Based on standardEN 60947-5-2
Symbol00991153
ApprovalRCM trademark
CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
Note on materialsRoHS-compliant
Instructions on useSupport / actuator-sensor overview "The right sensor for the actuator"
Measured variablePosition
Measuring principleMagneto-resistive
Ambient temperature-20 °C ... 60 °C
Repetition accuracy0.2 mm
Switching outputPNP
Switching element functionN/O contact
Switch-on time≤1.3 ms
Switch-off time≤7.3 ms
Max. switching frequency130 Hz
Max. output current100 mA
Max. switching capacity DC2.8 W
Voltage drop≤1.8 V
Inductive protective circuitAdapted to MZ, MY, ME coils
Off-state current≤0.01 mA
Short circuit current ratingPulsed
Overload protectionAvailable
Operational voltage range DC10 V ... 30 V
Residual ripple10 %
Reverse polarity protectionFor all electrical connections
Electrical connection 1, connection typePlugs
Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101
Electrical connection 1, number of connections/cores3
Electrical connection 1, type of mountingScrew-type lock Not rotatable
Electrical connection 1, compatible type of mountingCompatible with rotatable screw-type lock
Electrical connection 1, connection pattern00995573
Connection outlet orientationLateral
Material electrical contactGold-plated brass
Max. tightening torque connector0.5 Nm
Type of mountingClamped in T-slot With accessories Insertable in the slot from above
Tightening torque0.5 Nm
Mounting positionoptional
Product weight12 g
Housing colourBlack
Material housingWrought aluminium alloy TPE-U(PU) High-alloy stainless steel
Switching status indicationYellow LED
Degree of protectionIP65 IP67
LABS (PWIS) conformityVDMA24364-B2-L
