SMC Kq2h04-01as Connector Imported Original

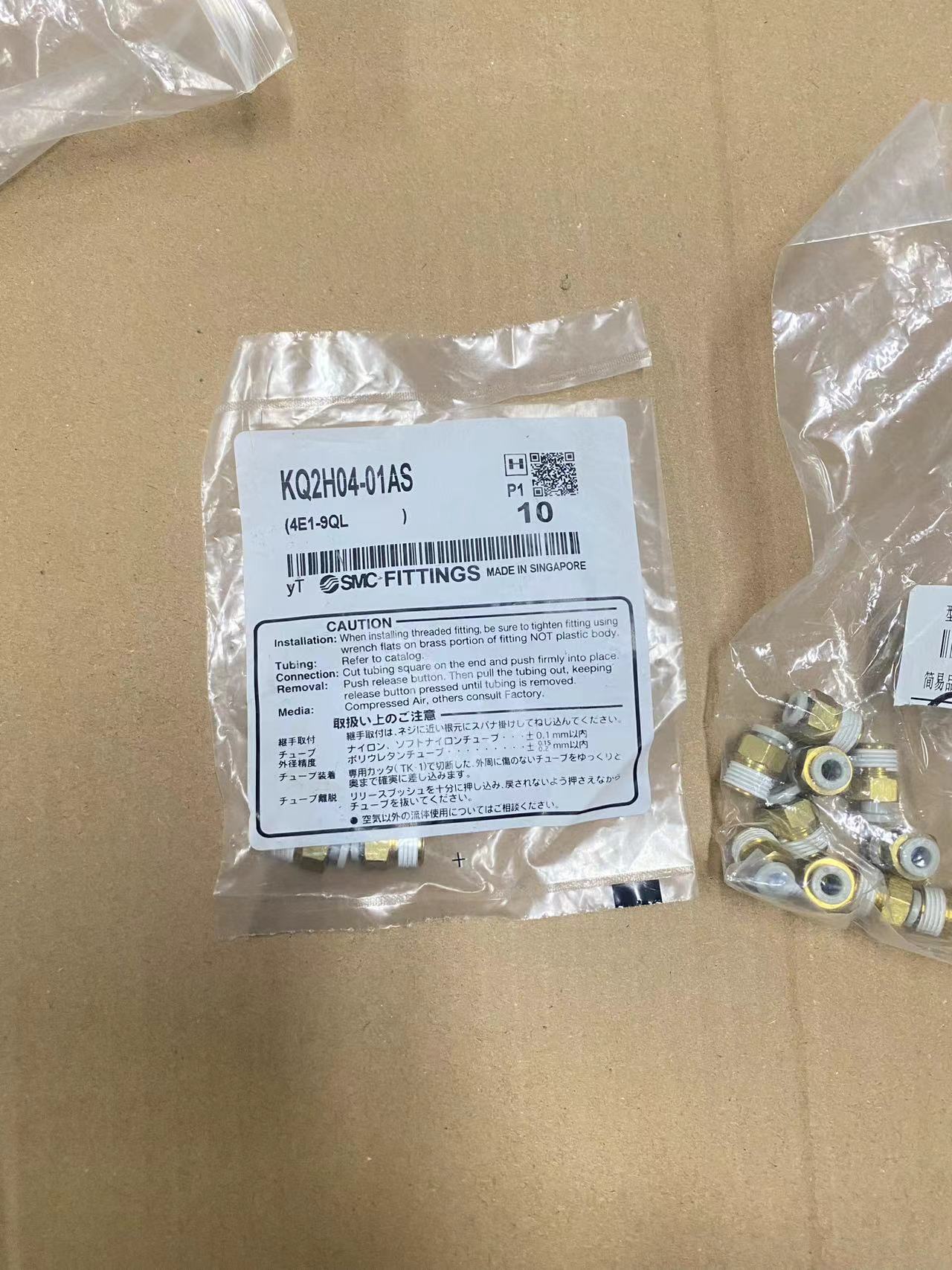

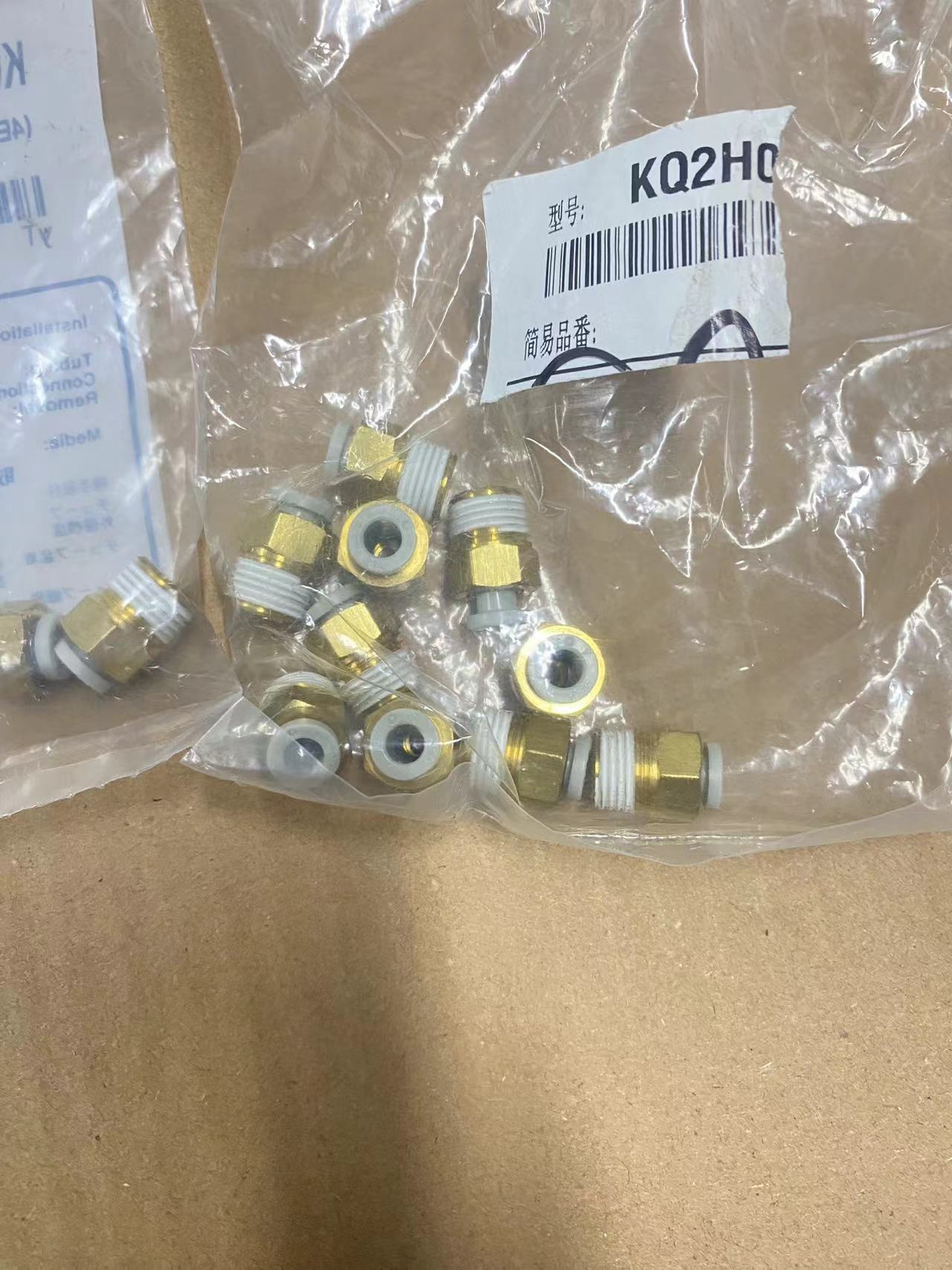

Model :KQ2H04-01AS

Specification: KQ2H series metric size quick-change couplings, straight-through couplings with sealant

The applicable range is vacuum -100kPa

Body shape: A total of 51 types

Thread part material/surface treatment (with or without) : 2 types

Optional surface treatments: brass (without electroplating), brass + without electrolytic nickel plating

Suitable for the outer diameter of the pipe

Round shape

Metric systems: Φ2,Φ3.2,Φ4,Φ6,Φ8,Φ10,Φ12,Φ16

Imperial system: Φ1/8",Φ5/32",Φ3/16",Φ1/4",Φ5/16",Φ3/8",Φ1/2"

Elliptical type

Metric systems: Φ3.2,Φ4,Φ6

Imperial system: Φ1/8",Φ5/32",Φ3/16"

Connection thread

Metric systems: M3, M5, M6

R,Rc: 1/8,1/4,3/8,1/2

G: 1/8,1/4,3/8,1/2

The NPT: 10-32 unf, 1/16, 1/8, 1/4, 3, 8, 1/2

Uni: 1/8,1/4,3/8,1/2

Sealing method

Sealant/gasket sealing

Sealing ring sealing

Gasket seal (Uni thread)

Optional information: The value of an optional item

Suitable for pipe outer diameter 04 Φ4mm

Connection thread 01 R1/8

Threaded part material · Surface treatment: A brass

The external thread sealing method S is equipped with sealant

Customized specifications - standards
