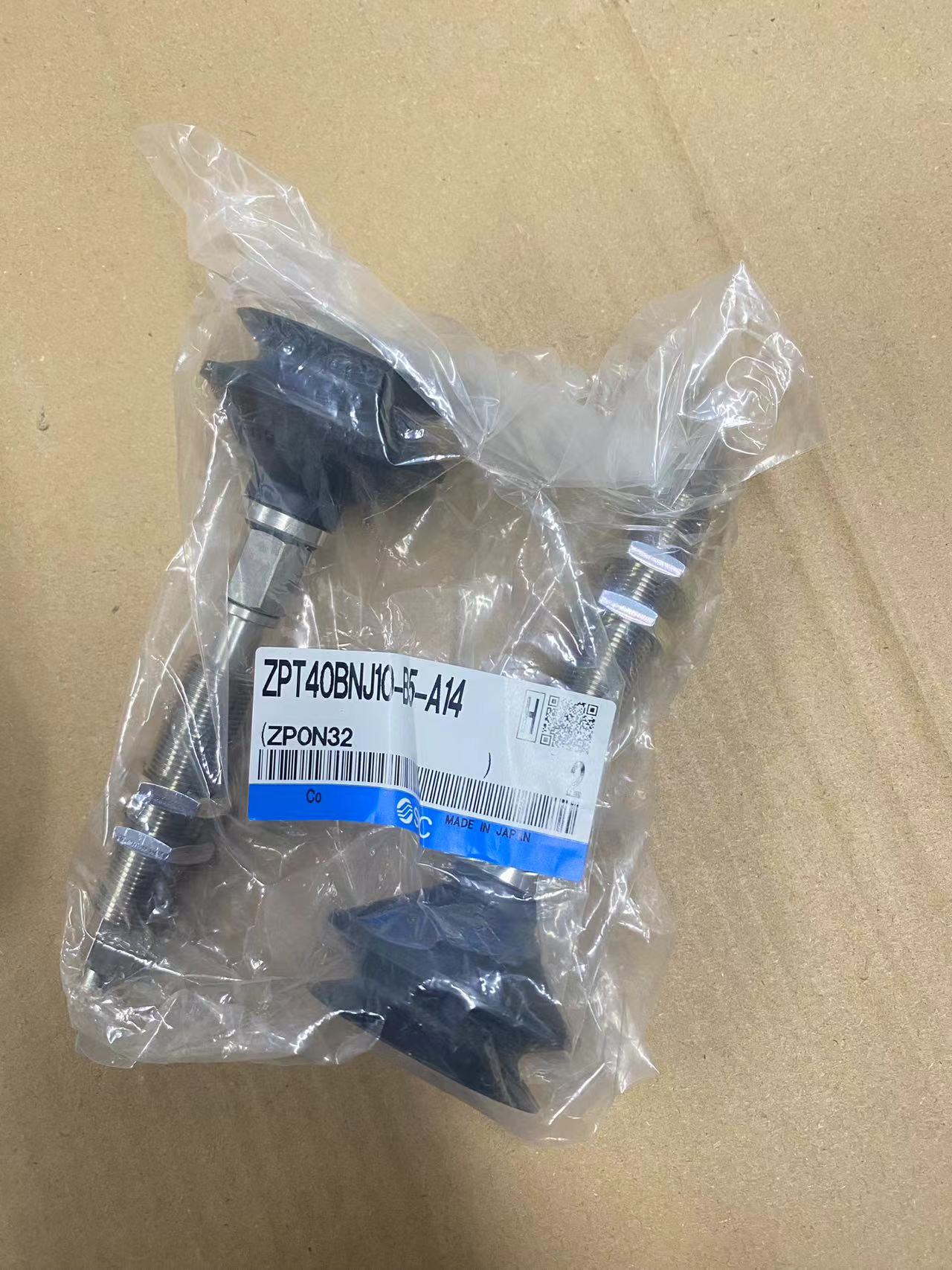

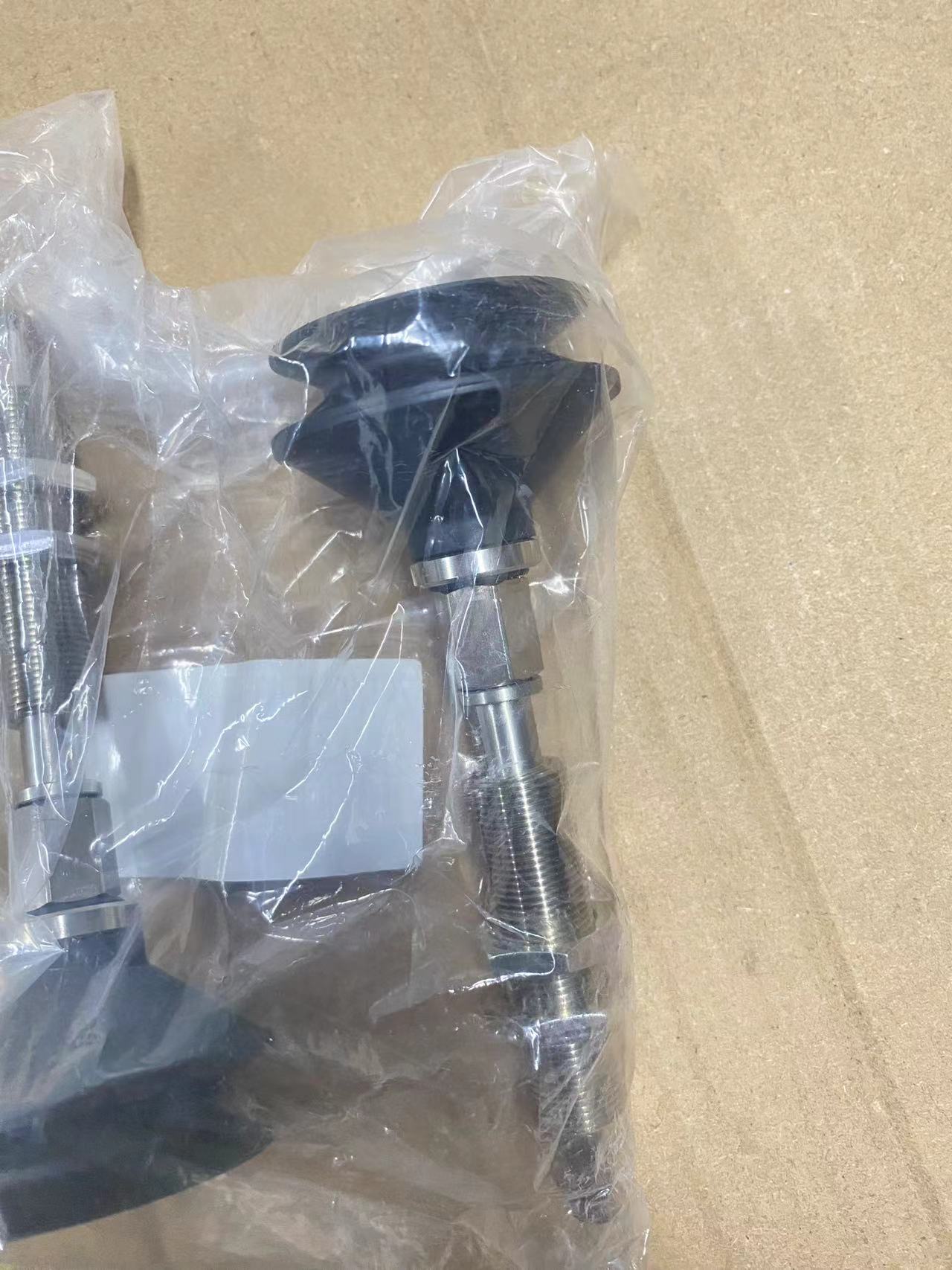

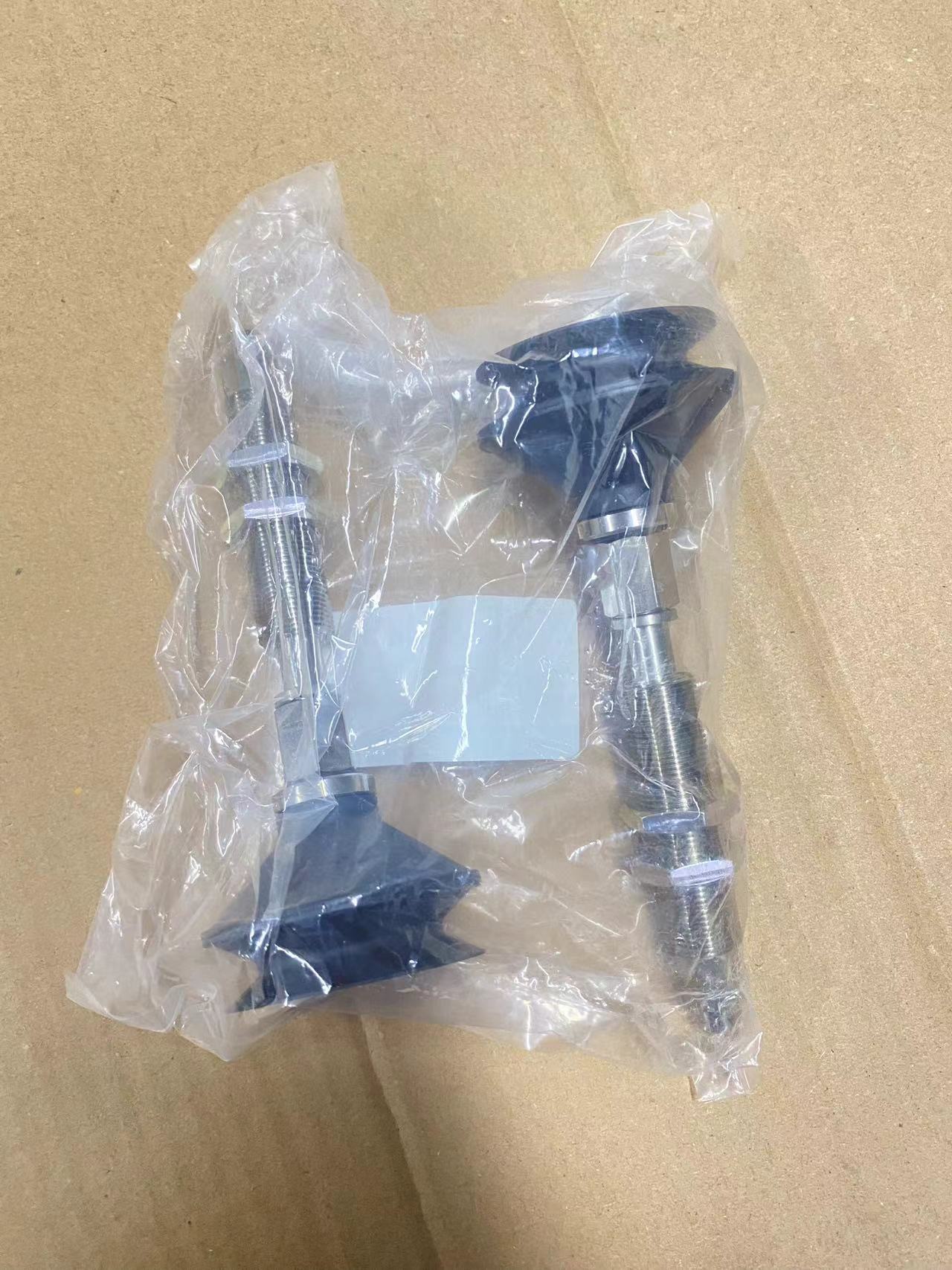

SMC Zpt40bnj10-B5-A14 Original Vacuum Suction Cups

Model :ZPT40BNJ10-B5-A14

12 sizes and 6 shapes of suction cups

The installation parts can be selected according to the purpose

Suction cup shapes: flat type, flat ribbed type, accordion type, thin type, thin ribbed type, deep type

Installation and connection: external thread, internal thread

Vacuum outlet: longitudinal, transverse

Vacuum mounting ports: external thread, internal thread, quick coupling, hook coupling

Buffer: None, yes

Buffer stroke (mm) : 6, 10, 15, 20, 25, 30, 40, 50

The vacuum extraction direction is T longitudinal

The diameter of the suction cup is 40 Φ40mm

The shape of the suction cup is B accordion type

Material: N NBR

The buffer specification J is rotatable

Buffer stroke (mm) 10 10mm

Vacuum lead-out port B5 M5 x 0.8 internal thread

Connection thread: A14 M14x1 external thread
