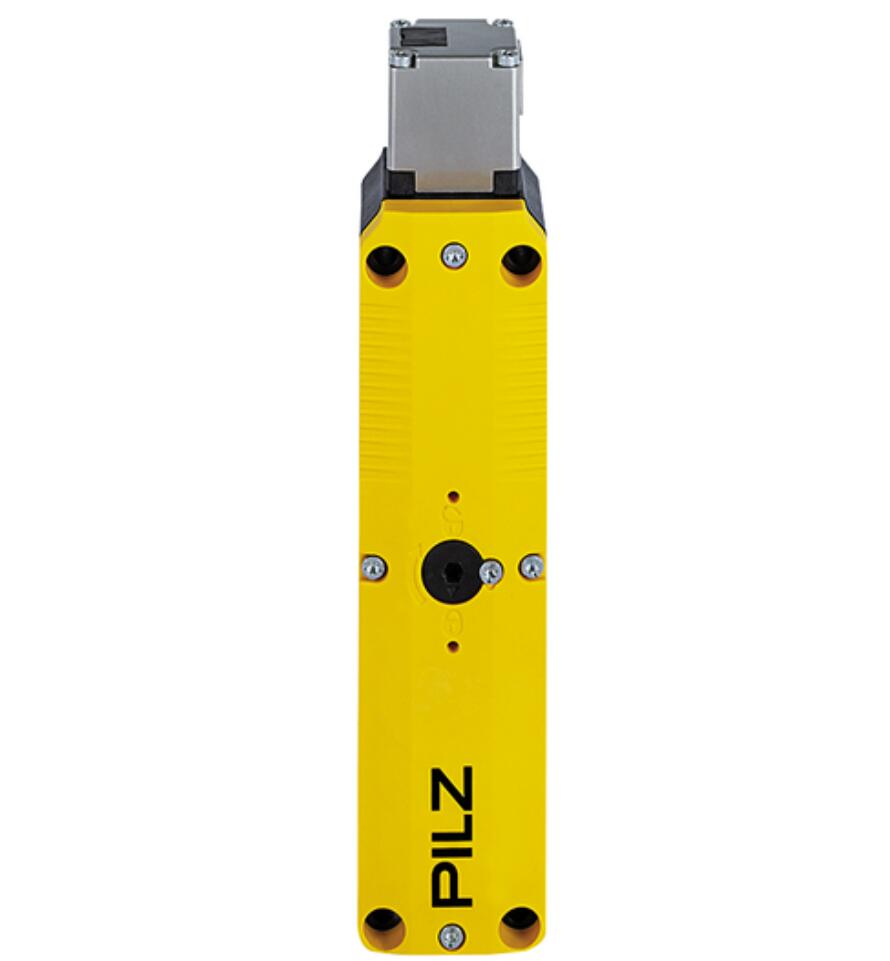

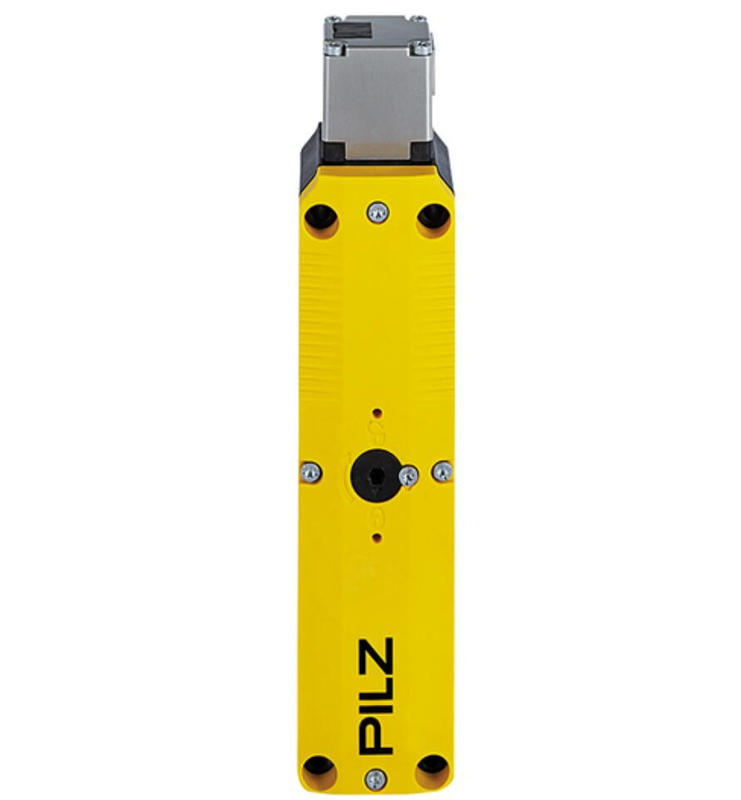

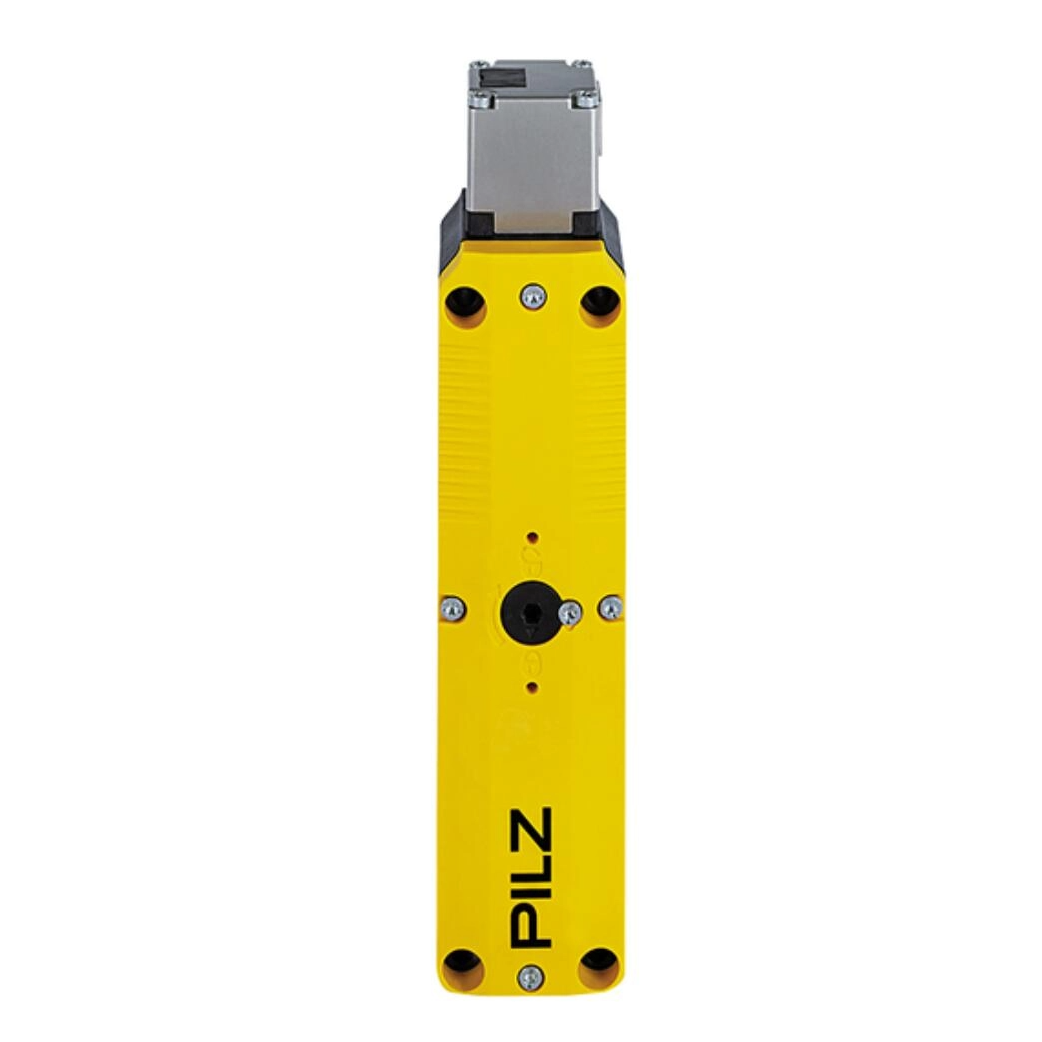

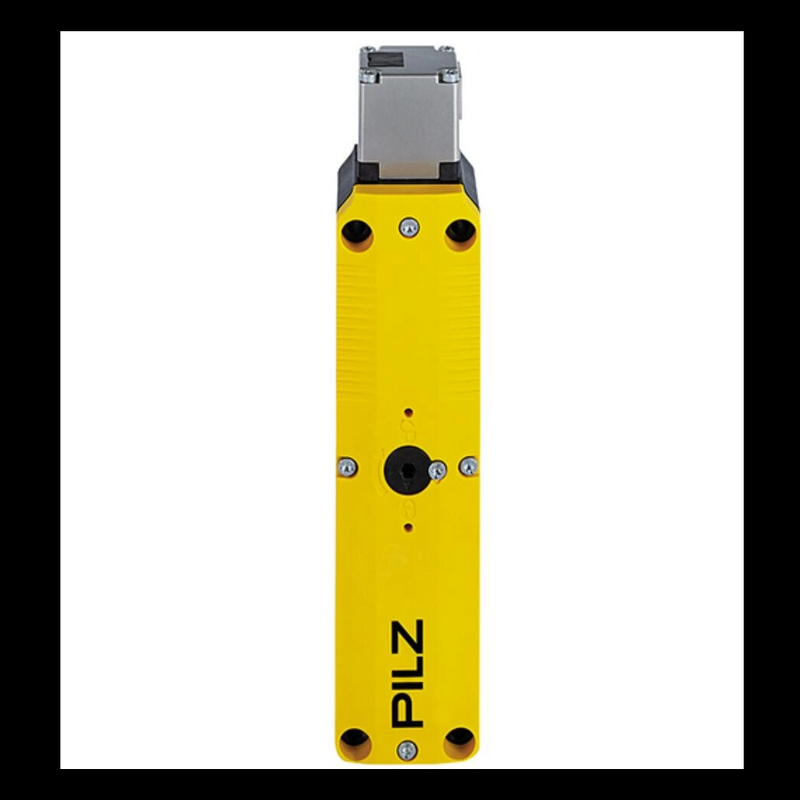

PSEN me5S NC-NC.NC-NC 1switch

Product ID: 6L000018
Mechanical safety gate system PSENmech, interlock principle springforce, contacts interlocking 2 N/C, contacts guard locking 2 N/C, supplyvoltage 24 V AC/DC.

Model:
PSEN me5S NC-NC.NC-NC 1switch
Brand:
PILZ
Code:
6L000018
Part number:
6L000018

Availability:

Quantity:



Inquire Add to Basket

6L000018 Safety Locking PILZ PSEN Me5S

Product Description

PSEN me5S NC-NC.NC-NC 1switch

Product ID: 6L000018

Mechanical safety gate system PSENmech, interlock principle springforce, contacts interlocking 2 N/C, contacts guard locking 2 N/C, supplyvoltage 24 V AC/DC.

Safety Locking Device PSENmech with guard locking PSEN Me5S NC-NC.NC-NC 1switch 6L000018

General data

Approval	CSA CE CCC UKCA DGUV
Suitable for series connection	yes
unit type	Sensor

Technical data

Electrical data

Supply voltage (V)	24 V
Type of supply voltage U1	AC/DC

Relay outputs

Utilisation cat. AC15/DC13sta.	EN 60947-5-1
Voltage AC15 safety cont.	240 V
Max. current AC15 safety cont.	1.5 A
Voltage DC13 safety cont.	250 V

Environmental data

Ambient temperature	-25 - 55 °C
Overvoltage category	II
Protection type, housing

Mechanical data

Holding force	1500 N
Height dimension	192 mm
Width dimension	42 mm
Depth dimension	44 mm
Net weight	489 g
Gross weight	541 g
