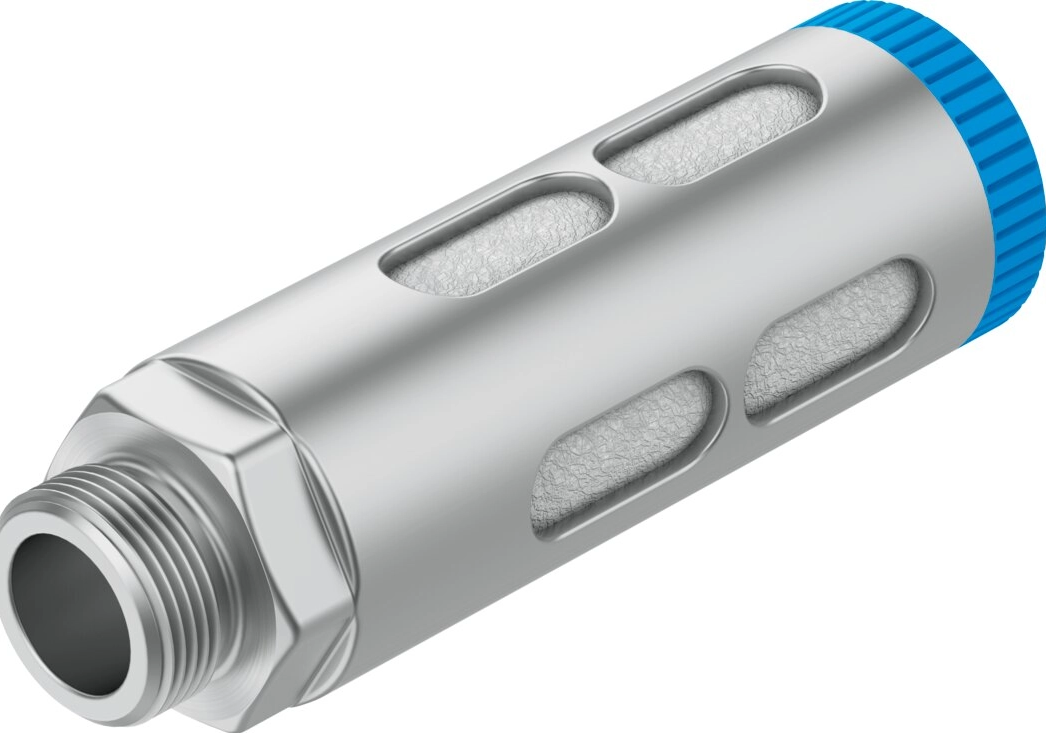

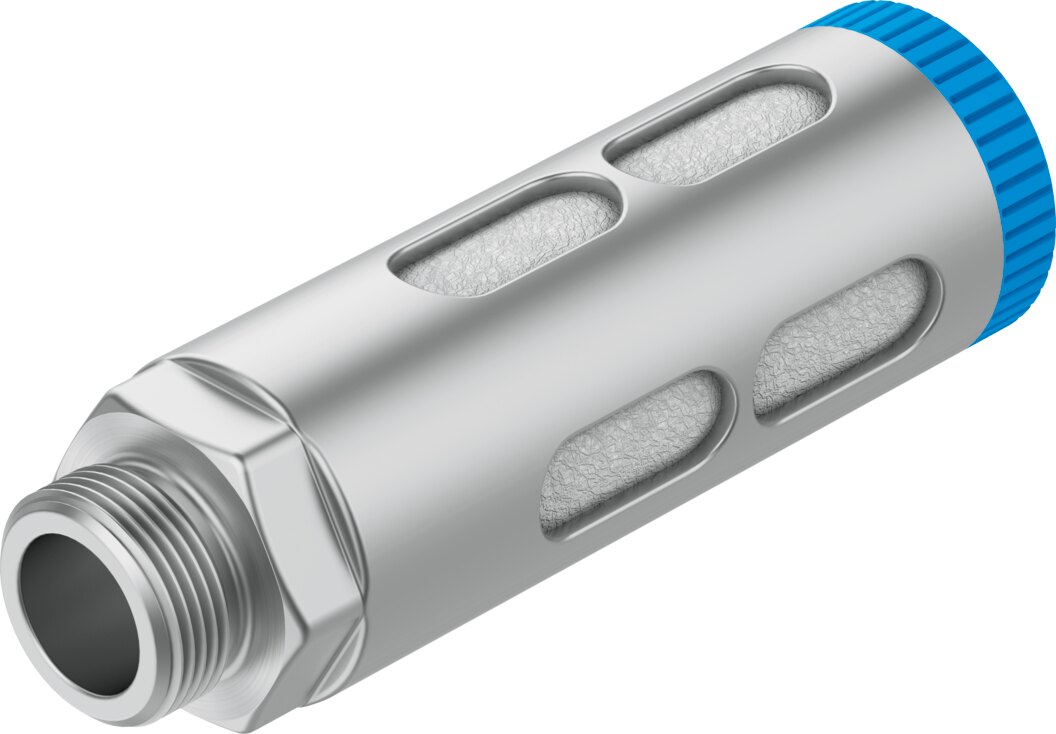

Silencing Throttle Valve 9517 Gru-1/4-B Germany Original Delivery Fast

GRU-1/4-B

9517

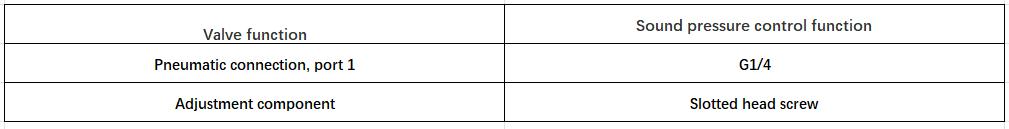

Technical Data

• Valve functionSound pressure control function

• Selection of additional functionsWith silencer

• Pneumatic connection, port 1G1/4

• Adjustment componentSlotted head screw

• Type of mountingScrew-in

• Standard flow rate 0.6->0 MPa (6->0 bar, 87->0 psi)0 l/min ... 1500 l/min

• Ambient temperature-10 °C ... 70 °C

• Material housingAluminium

• Mounting positionoptional

• Symbol00991451

• Operating pressure complete temperature range0 bar ... 10 bar

• Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

• Note on operating and pilot mediumLubricated operation possible

• LABS (PWIS) conformityVDMA24364-B1/B2-L

• Media temperature-10 °C ... 70 °C

• Product weight25 g

• Material shock absorber insertPE

• Material screwed plugDie-cast aluminium

• Note on materialsRoHS-compliant

• Material adjusting screwPA
