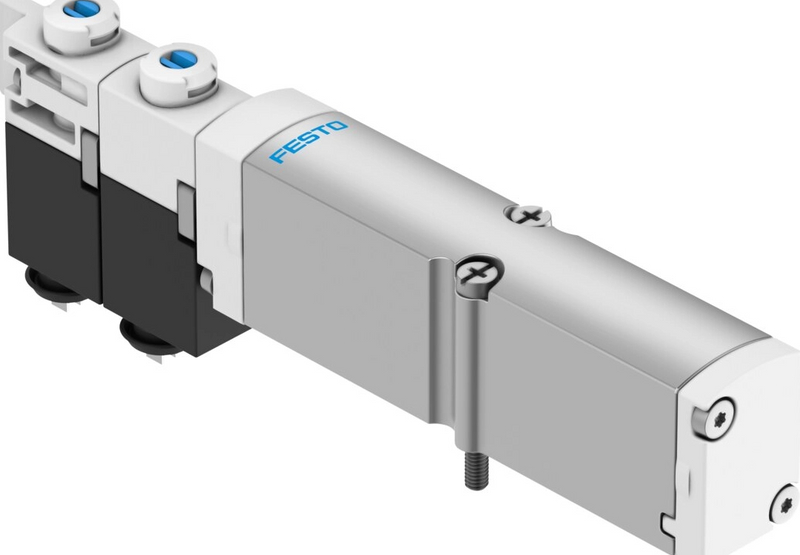

VMPA14-M1H-J-PI
FESTO
573717
| Availability: | |
|---|---|
| Quantity: | |
VMPA14-M1H-J-PI
573717
Valve function5/2 double solenoid
Type of actuationElectric
Valve size14 mm
Standard nominal flow rate (standardised to DIN 1343)550 l/min ... 670 l/min
Operating voltage24V DC
Operating pressure-0.09 MPa ... 1 MPa
Operating pressure-0.9 bar ... 10 bar
DesignPiston gate valve
Approvalc UL us - Recognized (OL)
Degree of protectionIP65 In assembled state To IEC 60529
Sealing principleSoft
Mounting positionoptional
Manual overrideDetenting Non-detenting
Type of pilotingPilot actuated
Flow directionReversible
Symbol00991067
lapOverlap
Signal status displayyes
Pilot pressure0.3 MPa ... 0.8 MPa
Pilot pressure3 bar ... 8 bar
Suitability for vacuumyes
Note on standard nominal flow rateMPA-L: 670 l/min MPA-S: 550 l/min
Standard nominal flow rate with QS-8550 l/min ... 670 l/min
Switching time on9 ms
Switching time reversal24 ms
Max. positive test pulse with 0 signal400 µs
Max. negative test pulse with 1 signal200 µs
Permissible voltage fluctuations+/- 25%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium:Lubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-20 °C ... 40 °C
Media temperature-5 °C ... 50 °C
Relative air humidityMax. 90% at 40°C
Ambient temperature-5 °C ... 50 °C
Max. tightening torque for valve mounting0.65 Nm
Product weight77 g
Type of mountingWith through-hole
Note on materialsRoHS-compliant
Material sealsNBR
Material housingDie-cast aluminium
