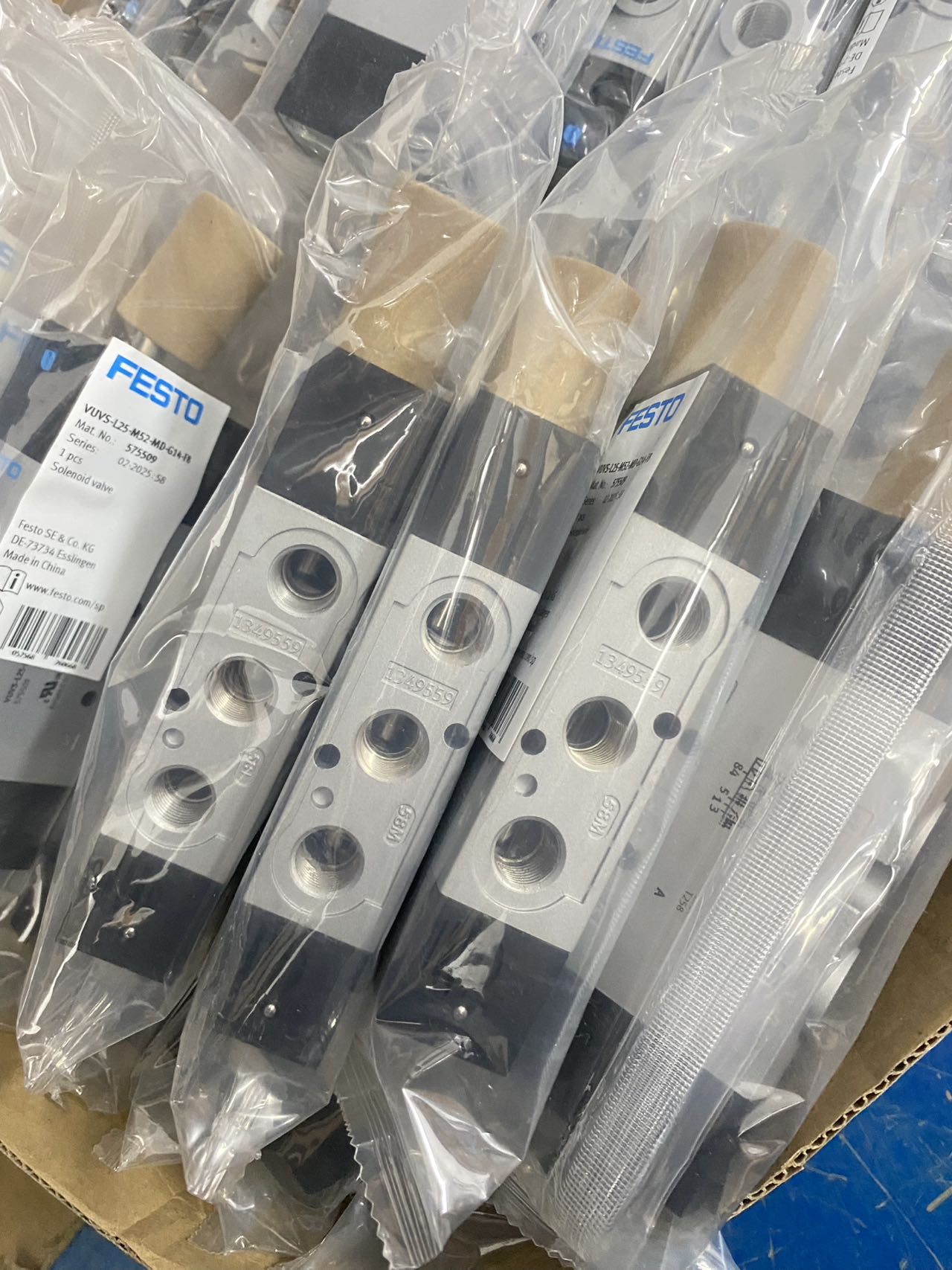

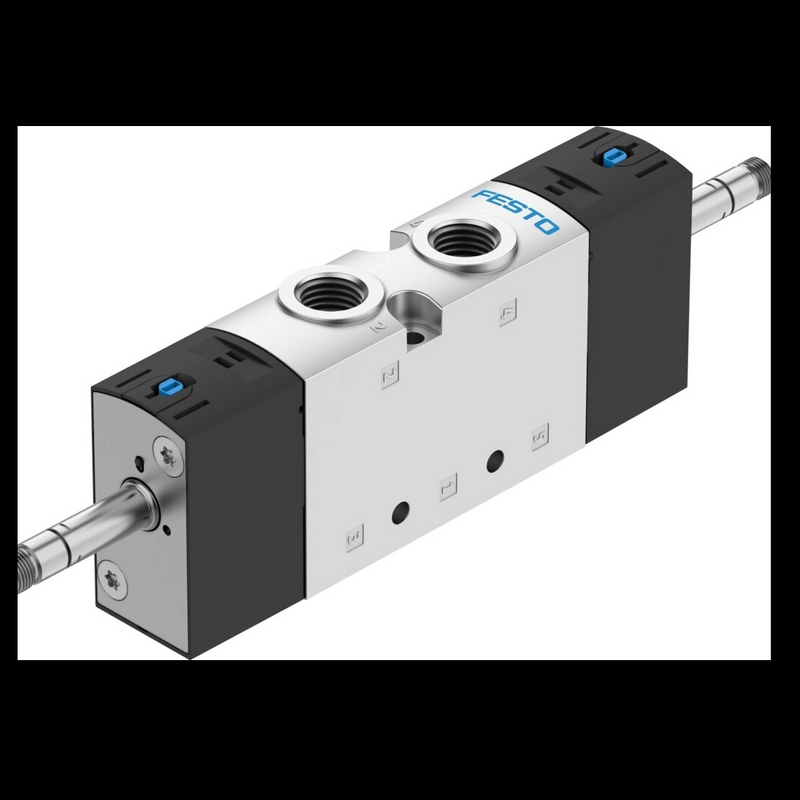

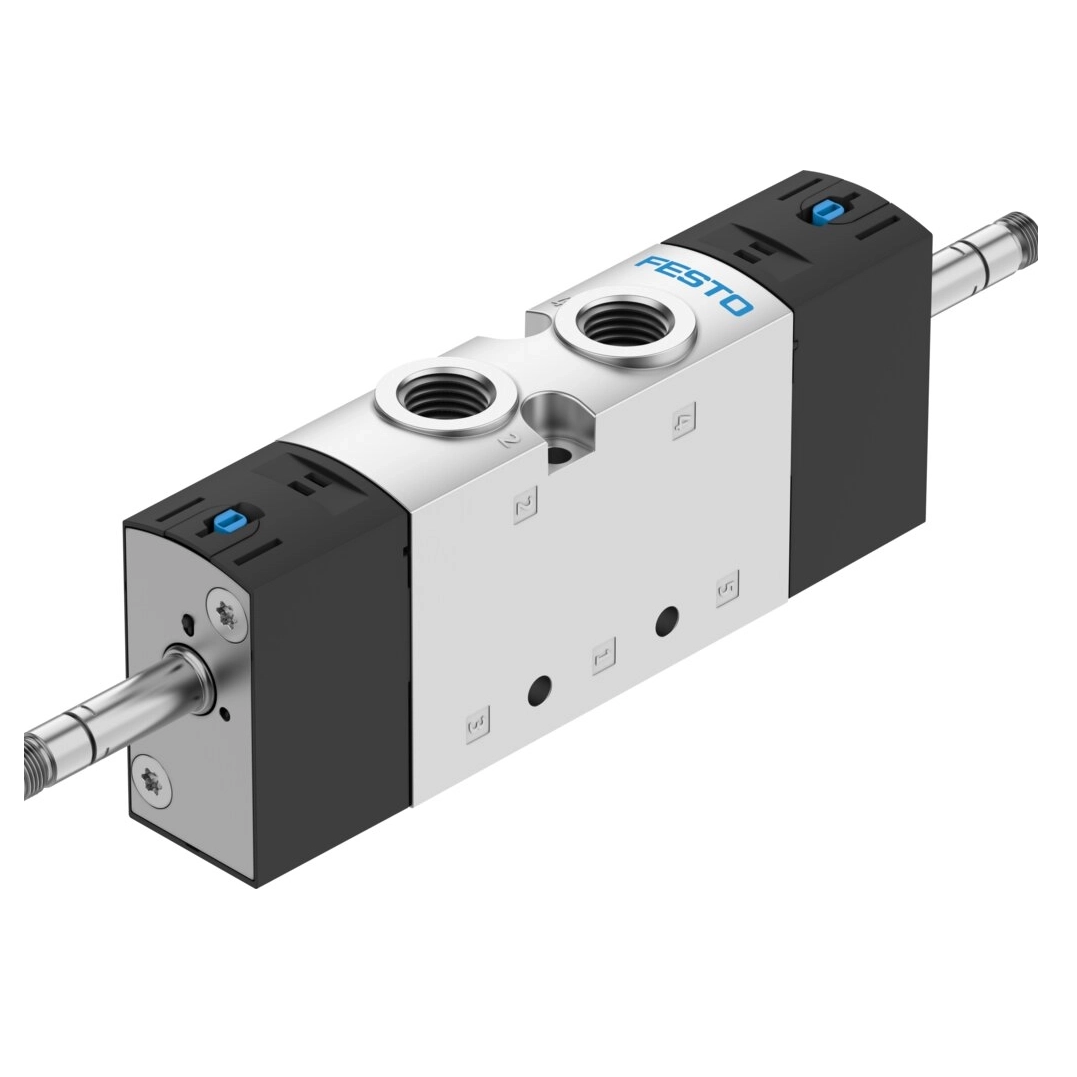

Solenoid Valve 575509 Vuvs-L25-M52-MD-G14-F8 Pneumatic Control Valve

Product specifications and models are not all uploaded, if necessary, you can contact the online personnel.   Look forward to hearing from you  thank you.

VUVS-L25-M52-MD-G14-F8

575509

Technical Data

• Valve function5/2-way, monostable

• Type of actuationElectric

• Valve size26.5 mm

• Standard nominal flow rate (standardised to DIN 1343)1300 l/min

• pneumatic working portG1/4

• Operating pressure0.25 MPa ... 1 MPa

• Operating pressure2.5 bar ... 10 bar

• DesignPiston gate valve

• Type of resetMechanical spring

• Approvalc UL us - Recognized (OL)

• Maritime classificationSee certificate

• Certificate issuing authorityDNVGL-TAA000011J

• Nominal size6.9 mm

• Exhaust-air functionWith flow control option

• Sealing principleSoft

• Mounting positionoptional

• Manual overrideDetenting Non-detenting

• Type of pilotingPilot actuated

• Pilot air supplyInternal

• Flow directionNon-reversible

• Symbol00991035

• lapOverlap

• b value0.4

• C value5.3 l/sbar

• Switching time off47 ms

• Switching time on12 ms

• Max. positive test pulse with 0 signal2000 µs

• Max. negative test pulse with 1 signal3600 µs

• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

• Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

• Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

• Corrosion resistance class CRC2 - Moderate corrosion stress

• LABS (PWIS) conformityVDMA24364-B1/B2-L

• Cleanroom classClass 6 according to ISO 14644-1

• Media temperature-10 °C ... 60 °C

• Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

• Ambient temperature-10 °C ... 60 °C

• Product weight311 g

• Type of mountingEither: On manifold rail With through-hole

• Breather connectionNot ducted

• Pilot exhaust port 84M5

• Pneumatic connection, port 1G1/4

• Pneumatic connection, port 2G1/4

• Pneumatic connection, port 3G1/4

• Pneumatic connection, port 4G1/4

• Pneumatic connection, port 5G1/4

• Note on materialsRoHS-compliant

• Material sealsHNBR NBR

• Material housingDie-cast aluminium Painted

• Material piston slideWrought aluminium alloy

• Material screwsGalvanised steel
