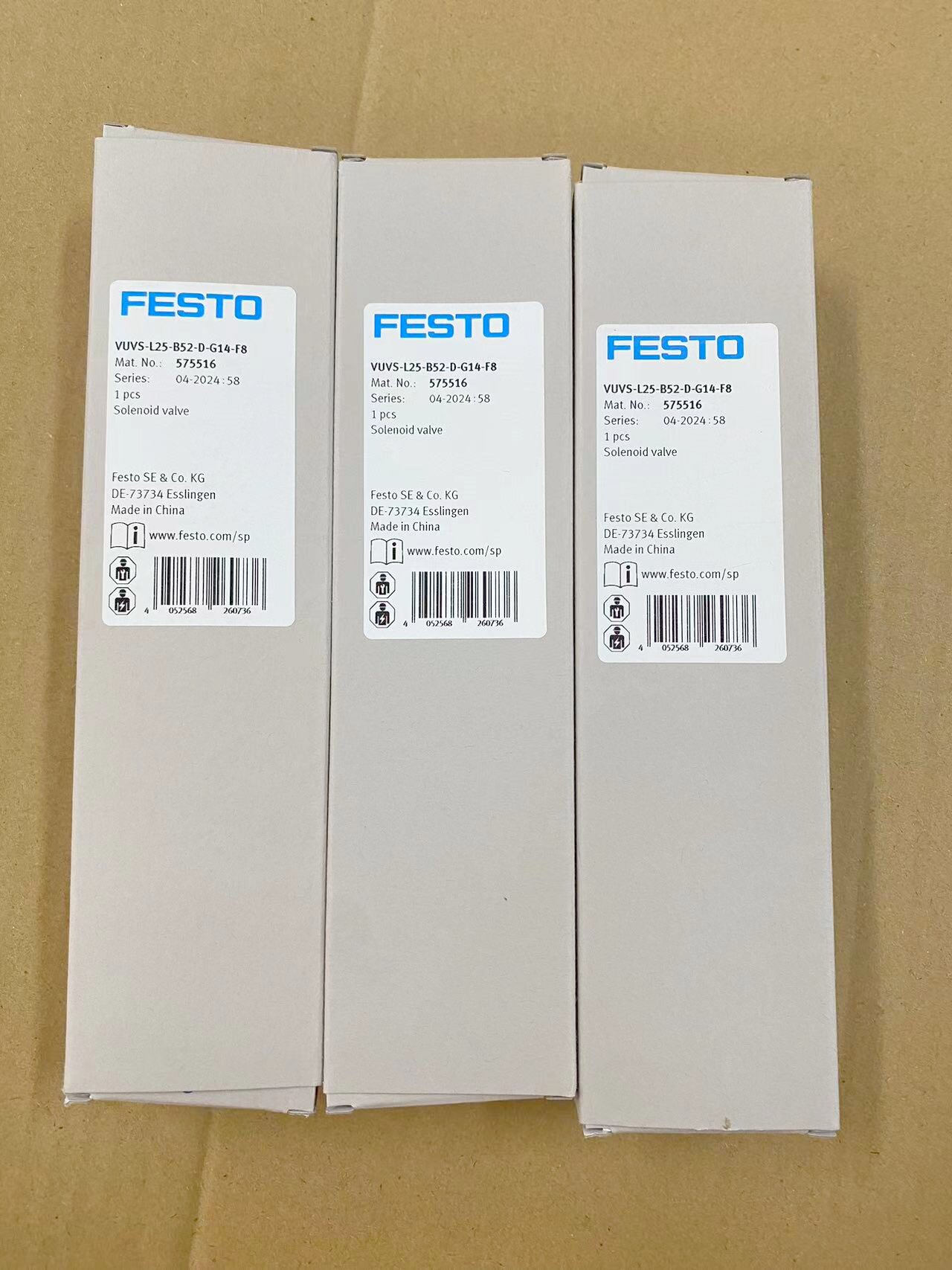

Vuvs-L25-B52-D-G14-F8
FESTO
575516
| Availability: | |
|---|---|
| Quantity: | |
Product specifications and models are not all uploaded, if necessary, you can contact the online personnel. Look forward to hearing from you thank you.
VUVS-L25-B52-D-G14-F8
575516
Valve function5/2 bistable
Type of actuationElectric
Valve size26.5 mm
Standard nominal flow rate (standardised to DIN 1343)1300 l/min
pneumatic working portG1/4
Operating pressure0.15 MPa ... 1 MPa
Operating pressure1.5 bar ... 10 bar
DesignPiston gate valve
Approvalc UL us - Recognized (OL)
Maritime classificationSee certificate
Certificate issuing authorityDNVGL-TAA000011J
Nominal size6.9 mm
Exhaust-air functionWith flow control option
Sealing principleSoft
Mounting positionoptional
Manual overrideDetenting Non-detenting
Type of pilotingPilot actuated
Pilot air supplyInternal
Flow directionNon-reversible
Symbol00991013
lapOverlap
b value0.4
C value5.6 l/sbar
Switching time reversal11 ms
Max. positive test pulse with 0 signal2000 µs
Max. negative test pulse with 1 signal3600 µs
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom classClass 6 according to ISO 14644-1
Media temperature-10 °C ... 60 °C
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-10 °C ... 60 °C
Product weight322 g
Type of mountingEither: On manifold rail With through-hole
Breather connectionNot ducted
Pilot exhaust port 82M5
Pilot exhaust port 84M5
Pneumatic connection, port 1G1/4
Pneumatic connection, port 2G1/4
Pneumatic connection, port 3G1/4
Pneumatic connection, port 4G1/4
Pneumatic connection, port 5G1/4
Note on materialsRoHS-compliant
Material sealsHNBR NBR
Material housingDie-cast aluminium Painted
Material piston slideWrought aluminium alloy
Material screwsGalvanised steel
