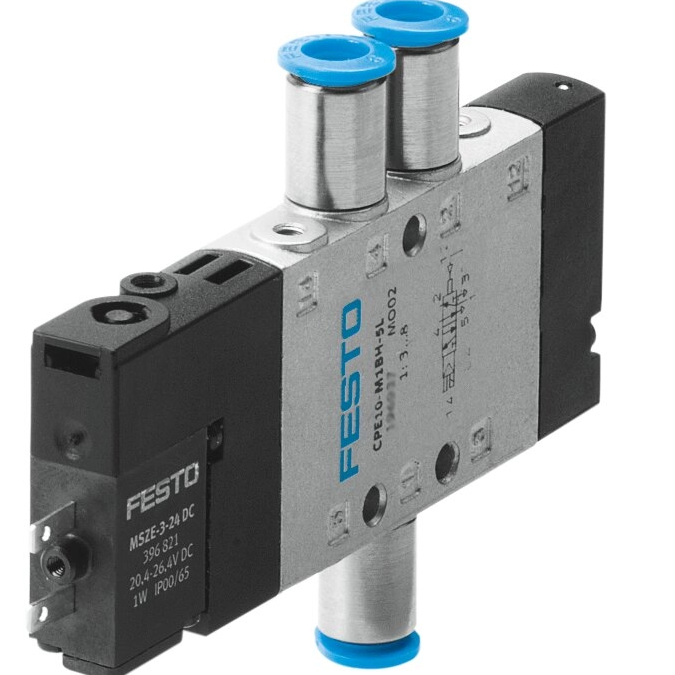

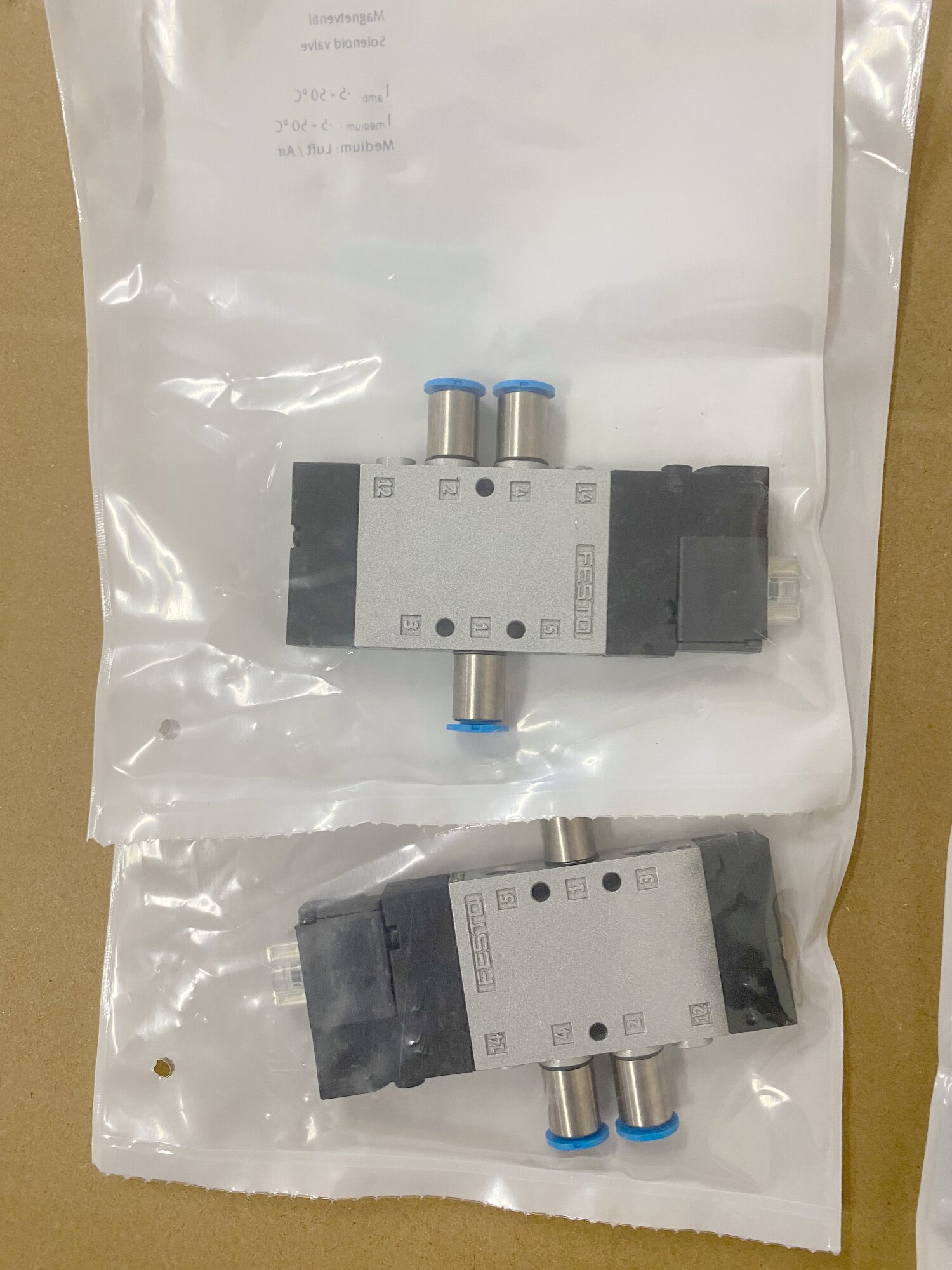

CPE10-M1BH-5L-QS-6
196883
Valve function:5/2-way, monostable
Valve function5/2-way, monostable
Type of actuationElectric
Construction width10 mm
Standard nominal flow rate (standardised to DIN 1343)320 l/min
pneumatic working portQS-6
Operating voltage24V DC
Operating pressure0.3 MPa ... 0.8 MPa
Operating pressure3 bar ... 8 bar
DesignPiston gate valve
Type of resetPneumatic spring
Approvalc UL us - Recognized (OL)
Maritime classificationSee certificate
Certificate issuing authorityDNV-TAA000032X UL MH19482
Degree of protectionIP65 With plug socket To IEC 60529
Nominal size4 mm
Exhaust-air functionWith flow control option
Sealing principleSoft
Mounting positionoptional
Manual overrideDetenting via accessory Non-detenting
Type of pilotingPilot actuated
Pilot air supplyInternal
Flow directionNon-reversible
Symbol00991023
Valve position codeInscription label holder
lapOverlap
Switching time off20 ms
Switching time on16 ms
Duty cycle100% in conjunction with holding current reduction
Max. positive test pulse with 0 signal1200 µs
Max. negative test pulse with 1 signal900 µs
Characteristic coil data24 V DC: 1.28 W
Permissible voltage fluctuations-15%/+10%
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-5 °C ... 50 °C
Ambient temperature-5 °C ... 50 °C
Electrical connection2-pin
Type of mountingWith through-hole
Pilot exhaust port 82M3
Pilot exhaust port 84M3
Pilot air port 12M3
Pilot air port 14M3
Pneumatic connection, port 1QS-6
Pneumatic connection, port 2QS-6
Pneumatic connection, port 3M7
Pneumatic connection, port 4QS-6
Pneumatic connection, port 5M7
Note on materialsRoHS-compliant
Material sealsNBR
Material housingDie-cast aluminium
