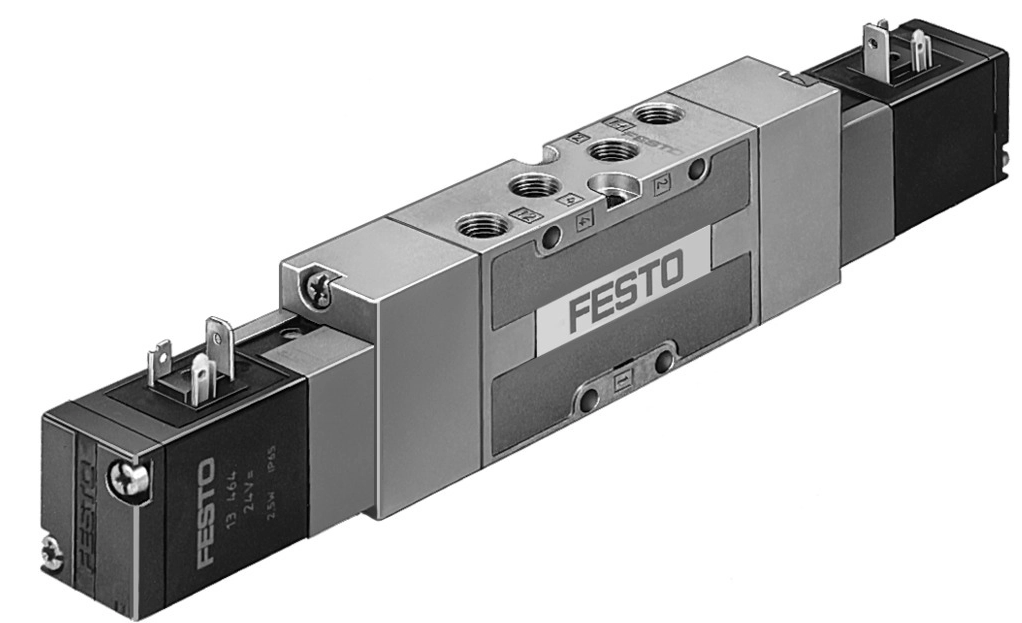

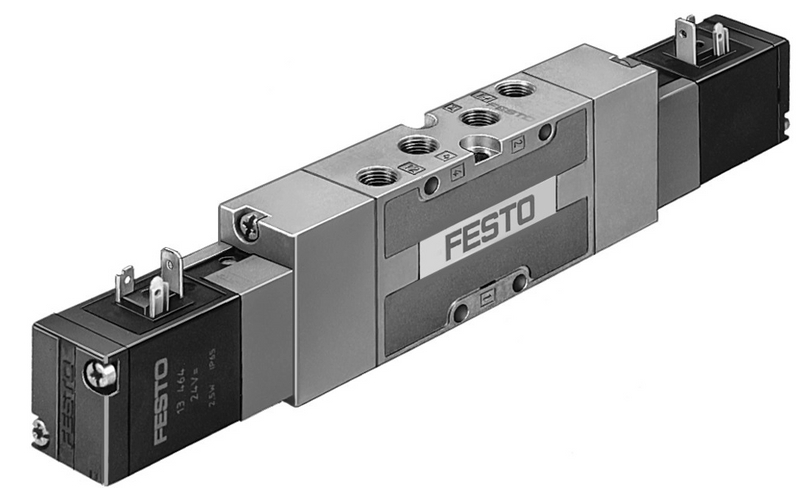

Solenoid Valve Jmvh-5-1/8-B 30475 Pneumatic Control Valve

JMVH-5-1/8-B

30475

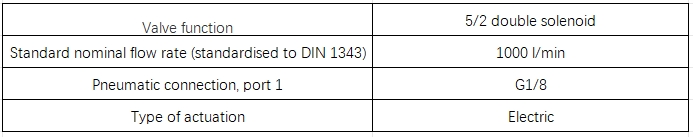

Technical Data

• Valve function5/2 double solenoid

• Type of actuationElectric

• Construction width26 mm

• Standard nominal flow rate (standardised to DIN 1343)1000 l/min

• pneumatic working portG1/8

• Operating voltage24V DC

• Operating pressure0.2 MPa ... 1 MPa

• Operating pressure2 bar ... 10 bar

• DesignPiston gate valve

• Nominal size8 mm

• Sealing principleSoft

• Mounting positionoptional

• Manual overrideNon-detenting

• Type of pilotingPilot actuated

• Pilot air supplyInternal

• Flow directionNon-reversible

• Symbol00991013

• lapOverlap

• Max. switching frequency3 Hz

• Switching time reversal18 ms

• Max. positive test pulse with 0 signal2200 µs

• Max. negative test pulse with 1 signal3700 µs

• Characteristic coil data24 V DC: 2.5 W

• Permissible voltage fluctuations+/- 10 %

• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

• Note on operating and pilot medium:Lubricated operation possible (in which case lubricated operation will always be required)

• Corrosion resistance class CRC1 - Low corrosion stress

• LABS (PWIS) conformityVDMA24364-B1/B2-L

• Storage temperature-40 °C ... 60 °C

• Media temperature-5 °C ... 50 °C

• Ambient temperature-5 °C ... 50 °C

• Product weight560 g

• Type of mountingOn PR rail With through-hole Either:

• Pilot exhaust port 82M5

• Pilot exhaust port 84M5

• Pneumatic connection, port 1G1/8

• Pneumatic connection, port 2G1/8

• Pneumatic connection, port 3G1/8

• Pneumatic connection, port 4G1/8

• Pneumatic connection, port 5G1/8

• Note on materialsRoHS-compliant

• Material sealsNBR

• Material housingDie-cast aluminium
