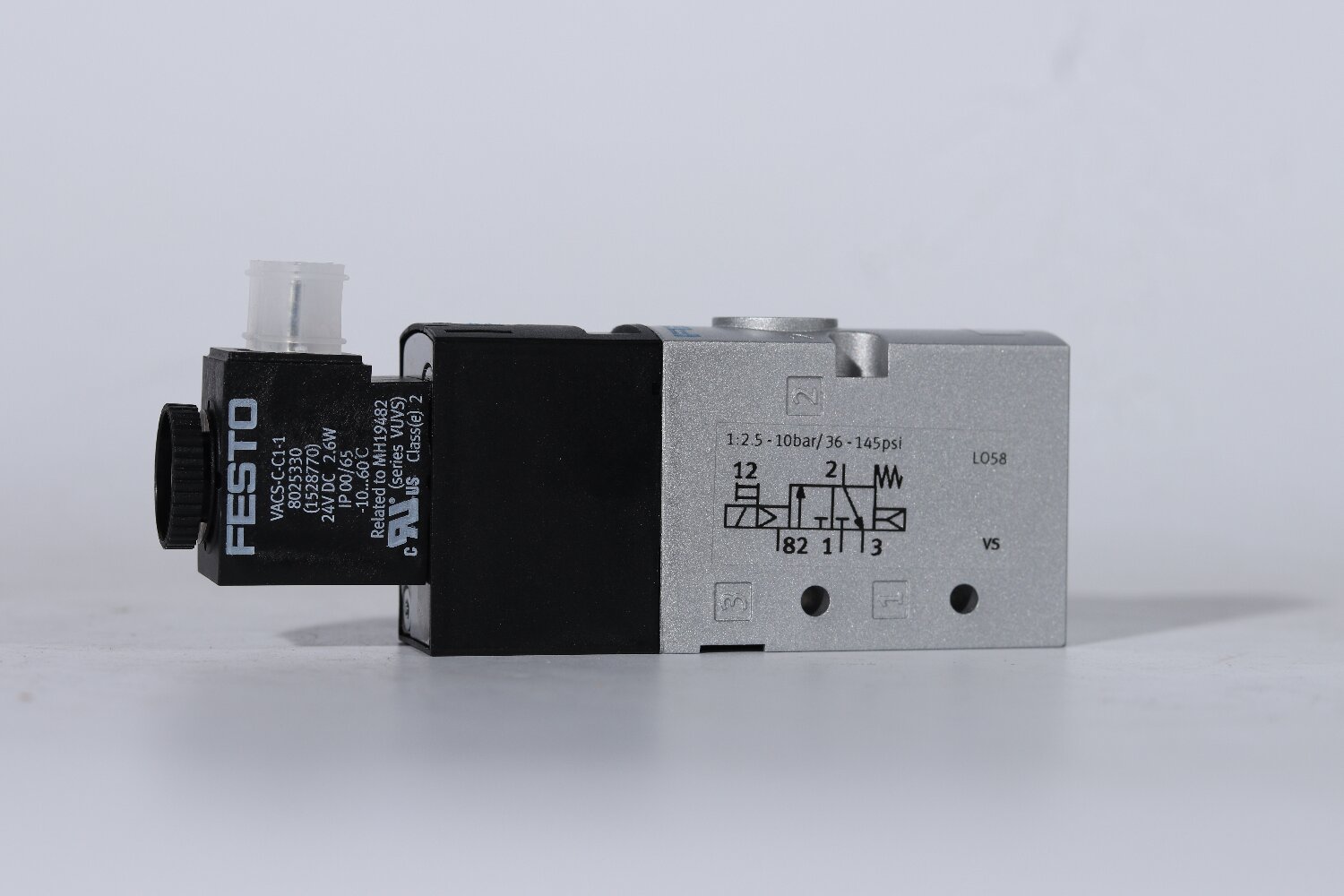

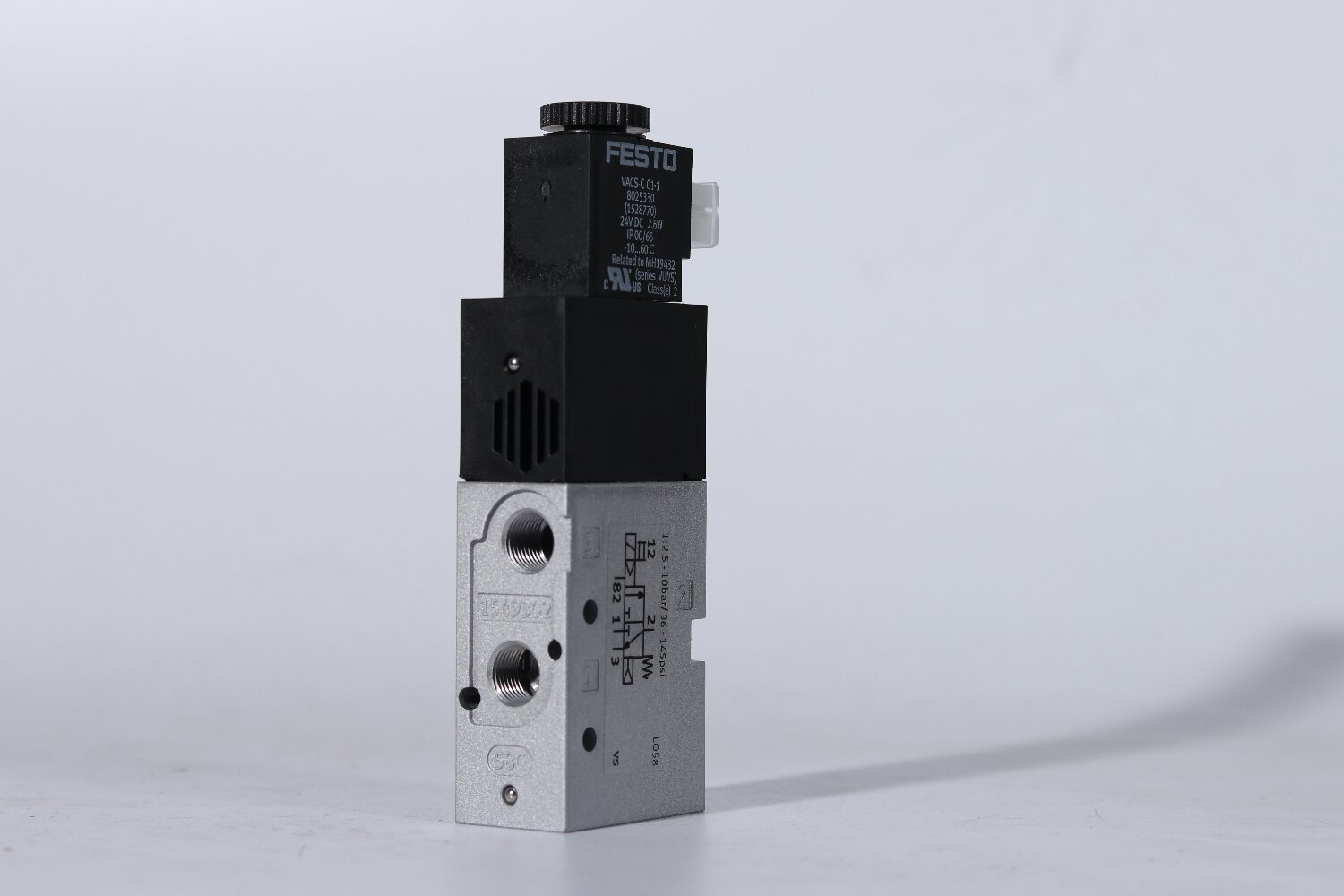

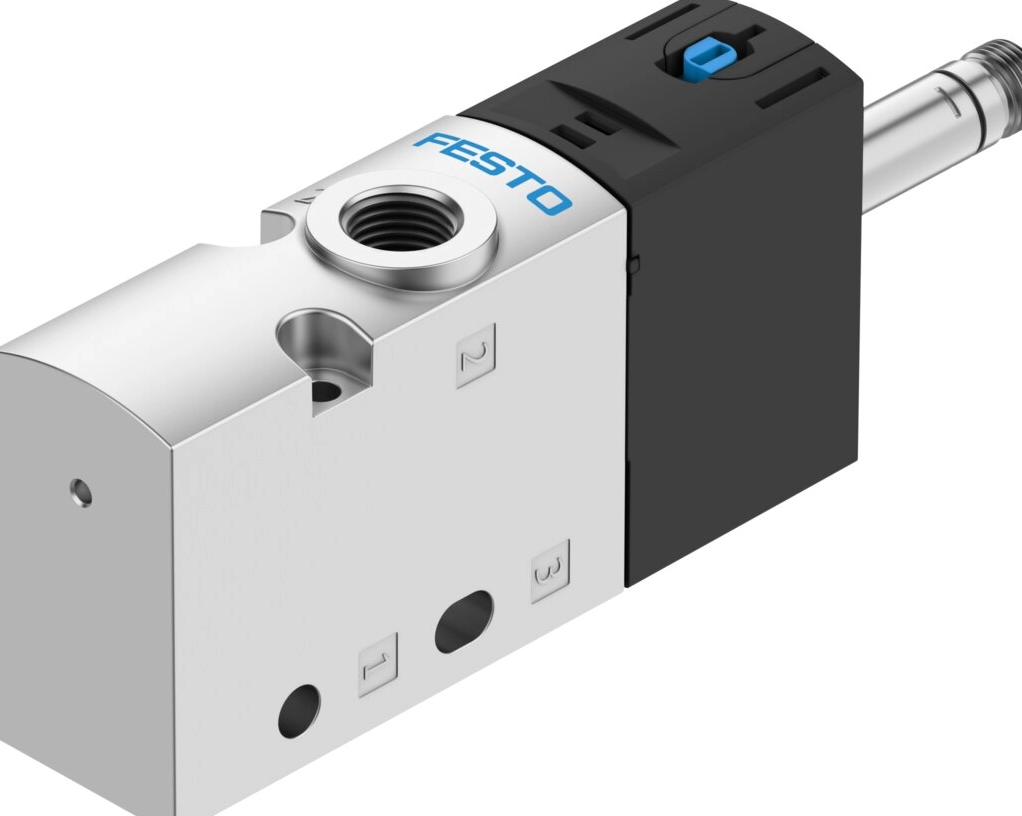

VUVS-L20-M32C-MD-G18-F7
FESTO
575260
| Availability: | |
|---|---|
| Quantity: | |
VUVS-L20-M32C-MD-G18-F7
575260
Valve function:3/2-way, closed, monostable
Standard nominal flow rate (standardised to DIN 1343):700 l/min
Pneumatic connection, port 1:G1/8
Type of actuation:Electric
Valve function3/2-way, closed, monostable
Type of actuationElectric
Valve size21 mm
Standard nominal flow rate (standardised to DIN 1343)700 l/min
pneumatic working portG1/8
Operating pressure0.25 MPa ... 1 MPa
Operating pressure2.5 bar ... 10 bar
DesignPiston gate valve
Type of resetMechanical spring
Approvalc UL us - Recognized (OL)
Nominal size5.7 mm
Exhaust-air functionWith flow control option
Sealing principleSoft
Mounting positionoptional
Manual overrideDetenting Non-detenting
Type of pilotingPilot actuated
Pilot air supplyInternal
Flow directionNon-reversible
Symbol00995994
lapOverlap
b value0.35
C value2.9 l/sbar
Switching time off32 ms
Switching time on14 ms
Max. positive test pulse with 0 signal1900 µs
Max. negative test pulse with 1 signal2700 µs
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
Media temperature-10 °C ... 60 °C
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-10 °C ... 60 °C
Product weight136 g
Type of mountingOn manifold rail With through-hole
Breather connectionNot ducted
Pilot exhaust port 82M5
Pneumatic connection, port 1G1/8
Pneumatic connection, port 2G1/8
Pneumatic connection, port 3G1/8
Note on materialsRoHS-compliant
Material sealsHNBR NBR
Material housingDie-cast aluminium Painted
Material piston slideWrought aluminium alloy
Material screwsGalvanised steel
