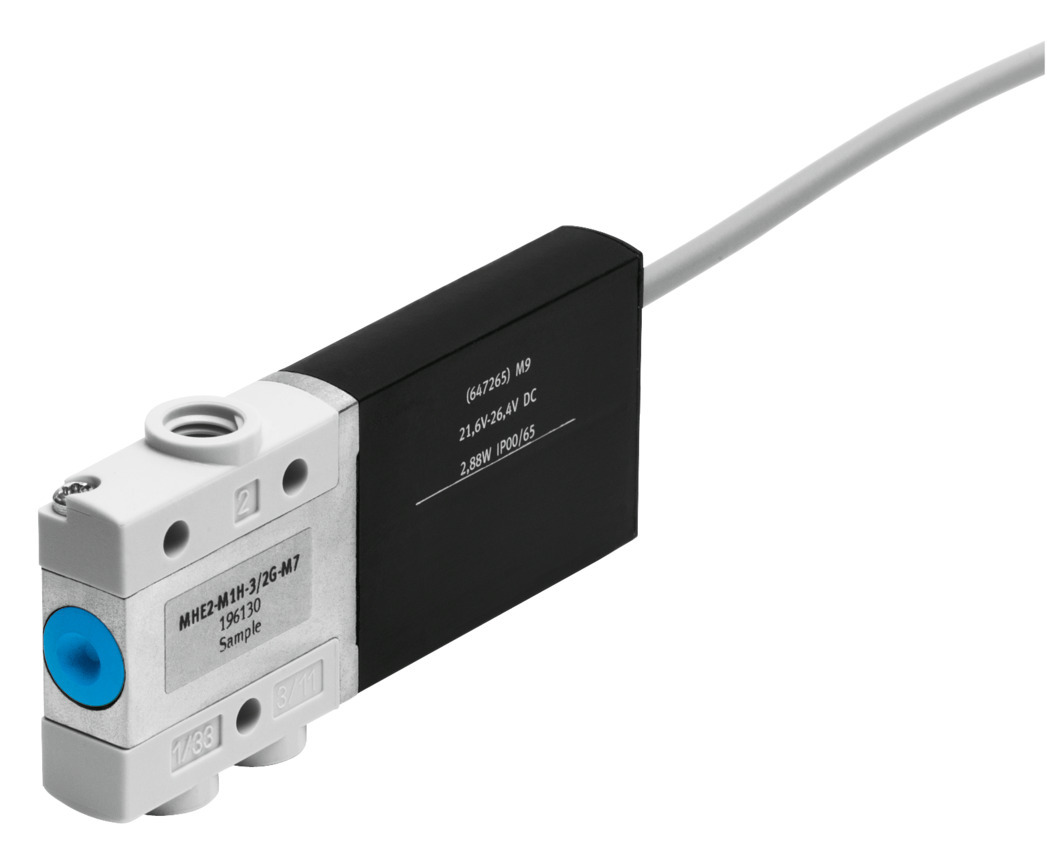

Valve function3/2-way, closed, monostable
Type of actuationElectric
Construction width10 mm
Standard nominal flow rate (standardised to DIN 1343)100 l/min
pneumatic working portM7
Operating voltage24V DC
Operating pressure-0.09 MPa ... 0.8 MPa
Operating pressure-0.9 bar ... 8 bar
Operating pressure-13.05 psi ... 116 psi
DesignPressure-relieved poppet valve
Type of resetMechanical spring
Degree of protectionIP55
ApprovalRCM trademark c UL us - Recognized (OL)
CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
Nominal size2 mm
Grid dimension14 mm
Note on grid dimensionMinimum distance between the valves is 4 mm
Exhaust-air functionWith flow control option
Sealing principleSoft
Mounting positionoptional
Manual overrideNon-detenting
Type of pilotingDirect
Flow directionReversible with restrictions
Symbol00991308
lapUnderlap
Reverse polarity protectionBipolar
Additional functionsSpark arresting Holding current reduction Protective circuit
Operating pressure, reversible-0.09 MPa ... 0.1 MPa
Operating pressure, reversible-0.9 bar ... 1 bar
Operating pressure, reversible-13.05 psi ... 14.5 psi
Max. switching frequency330 Hz
Switching time off2 ms
Switching time on1.7 ms
Tolerance switching time off+10%/-30%
Tolerance switching time on+10%/-30%
Switching time dispersion from 1 Hz0.2 ms
Duty cycle100%
Characteristic coil data24 V DC: low-current phase 1.25 W, high-current phase 5.0 W
Permissible voltage fluctuations+/- 10 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Restrictions for environmental and media temperatureAs a function of switching frequency (see graph)
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom classClass 6 according to ISO 14644-1
Media temperature-5 °C ... 60 °C
Ambient temperature-5 °C ... 60 °C
Product weight60 g
Electrical connectionCable
Cable length2.5 m
Type of mountingWith through-hole
Pneumatic connection, port 1M7
Pneumatic connection, port 2M7
Pneumatic connection, port 3M7
Note on materialsRoHS-compliant
Material sealsHNBR NBR
Material housingDie-cast zinc, coated
Material cable sheathPUR
Material screwsGalvanised steel
