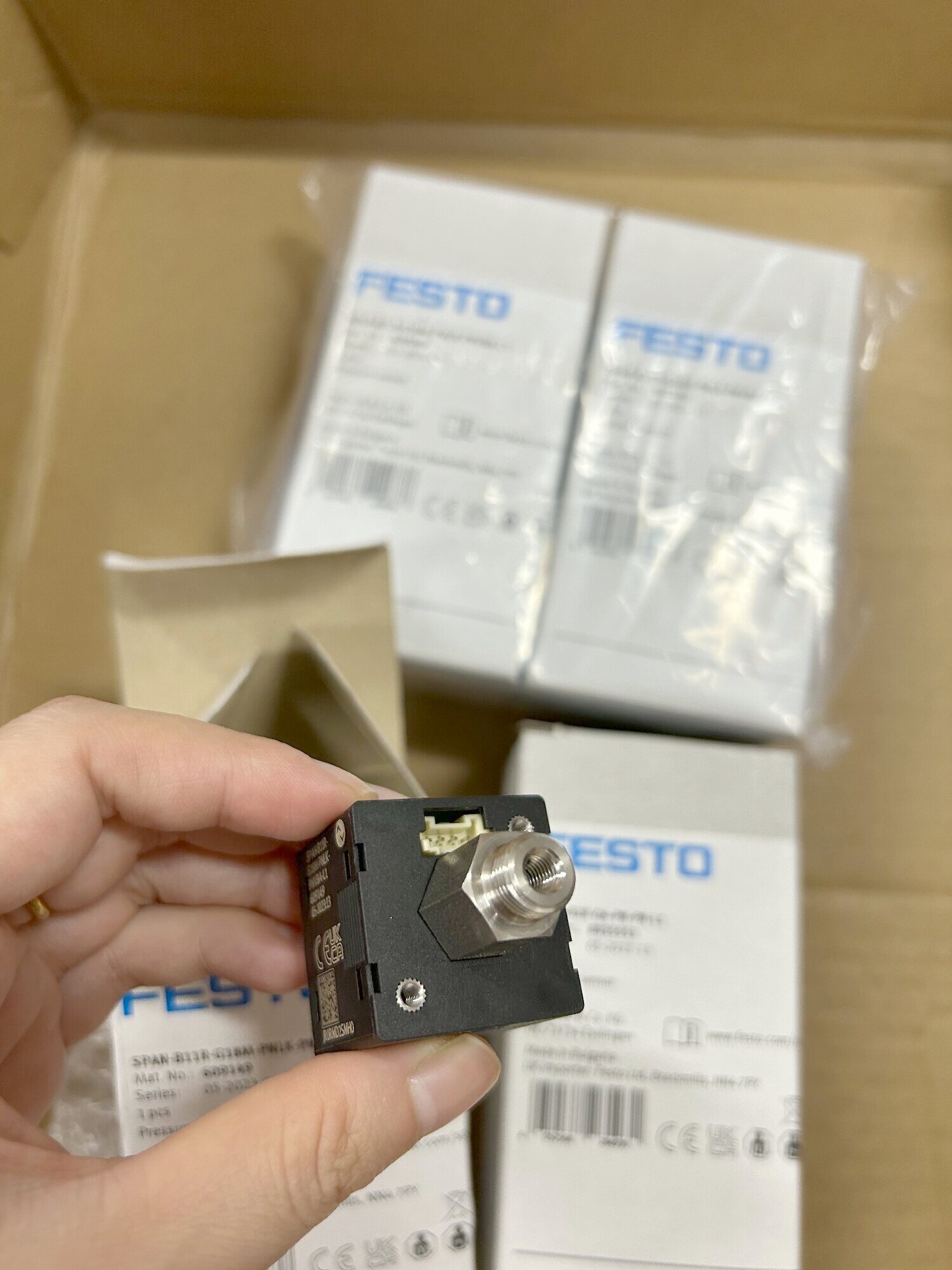

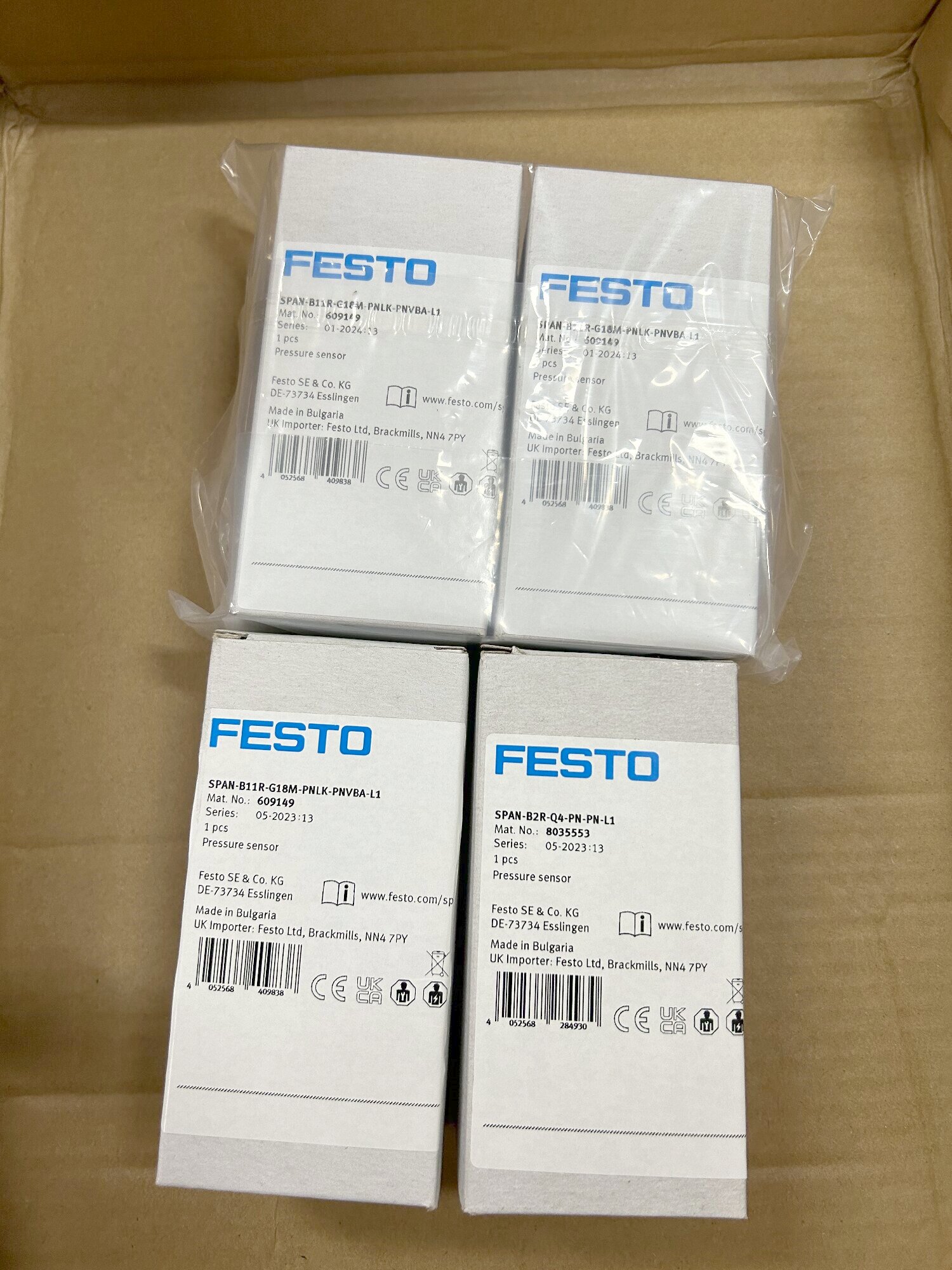

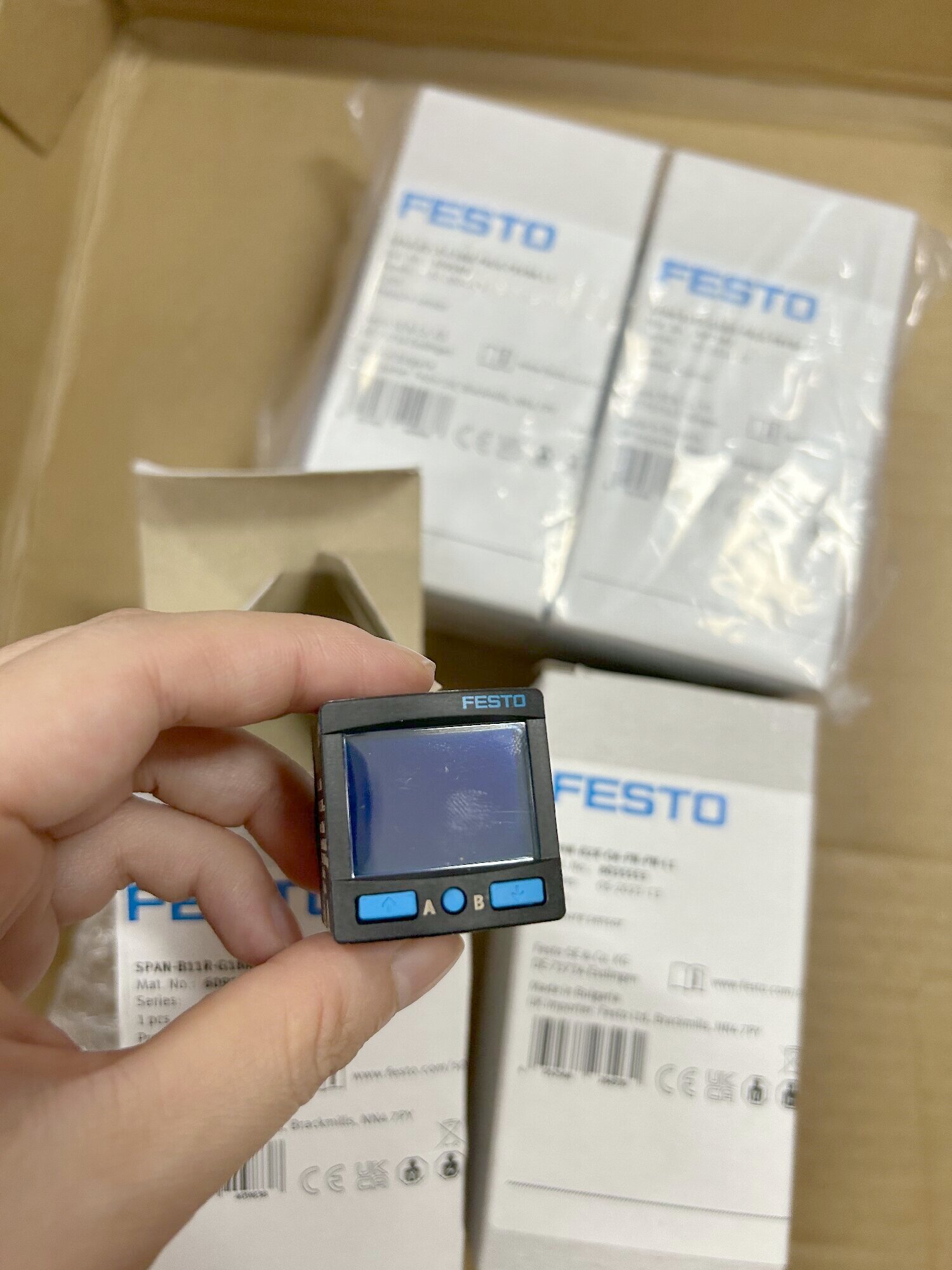

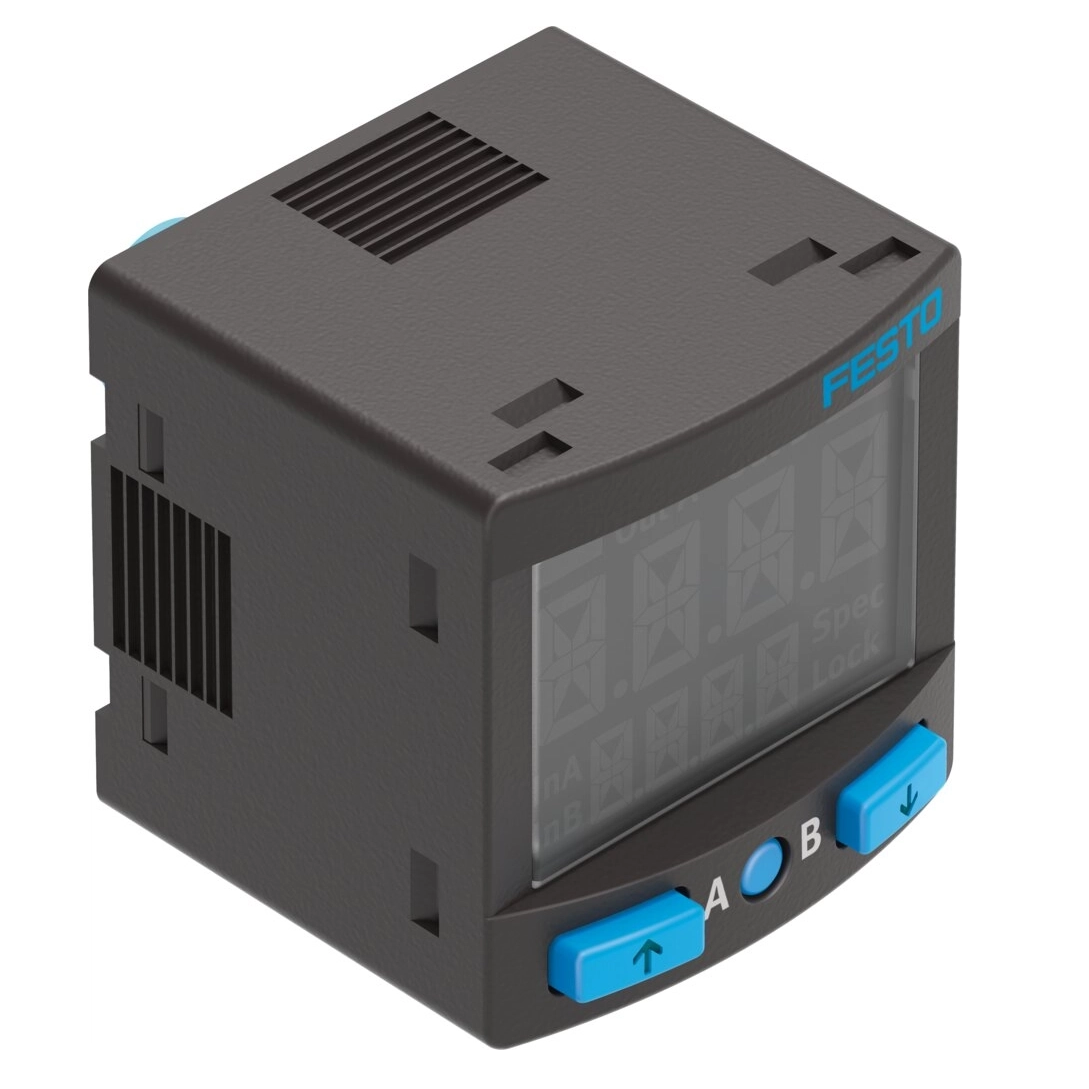

The Pressure Sensor 8035553 SPAN-B2R-Q4-PN-PN-L1 Is Brand New And Original

Product specifications and models are not all uploaded, if necessary, you can contact the online personnel. My WhatsApp +8618923754918  Look forward to hearing from you  thank you

SPAN-B2R-Q4-PN-PN-L1

8035553

Technical Data

• Symbol00995686

• ApprovalRCM trademark c UL us listed (OL)

• CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive

• UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions

• Certificate issuing authorityUL E322346

• Note on materialsRoHS-compliant

• Measured variableRelative pressure

• Measurement methodPiezoresistive pressure sensor

• Start value for pressure measuring range-0.1 MPa

• Start value for pressure measuring range-1 bar

• Start value for pressure measuring range-14.5 psi

• End value for pressure measuring range0.1 MPa

• End value for pressure measuring range1 bar

• End value for pressure measuring range14.5 psi

• Max. overload pressure5 bar

• Overload pressure0.5 MPa

• Overload pressure5 bar

• Overload pressure72.5 psi

• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases

• Note on operating and pilot mediumLubricated operation possible

• Media temperature0 °C ... 50 °C

• Ambient temperature0 °C ... 50 °C

• Accuracy in ± % FS1.5 %FS

• Repetition accuracy in ± %FS0.3 %FS

• Temperature coefficient in ± %FS/K0.05 %FS/K

• Switching output2 x PNP or 2 x NPN, switchable

• Switching functionWindow comparator Threshold value comparator Auto difference monitoring

• Switching element functionN/C or N/O contact, switchable

• Max. output current100 mA

• Short circuit current ratingyes

• Operational voltage range DC15 V ... 30 V

• Reverse polarity protectionFor all electrical connections

• Electrical connection 1, connection typePlugs

• Electrical connection 1, connector systemConnection pattern L1J

• Electrical connection 1, number of connections/cores4

• Electrical connection 1, connection pattern00995428

• Type of mountingFront panel mounting Via wall/surface bracket

• Mounting positionoptional

• Pneumatic connectionFor tubing O.D. 4 mm

• Product weight25 g

• Material housingPA-reinforced

• Material in contact with the mediumFPM NBR PA-reinforced

• Display typeIlluminated LCD

• Displayable unitsMPa bar inH2O inHg kPa kgf/cm² mbar mmHg psi

• Setting optionsTeach-in Via display and keys

• Protection against tamperingPIN code

• Setting range threshold value0 % ... 100 %

• Setting range hysteresis0 % ... 90 %

• Degree of protectionIP40

• Corrosion resistance class CRC2 - Moderate corrosion stress

• LABS (PWIS) conformityVDMA24364-B1/B2-L

• Cleanroom classClass 4 according to ISO 14644-1
