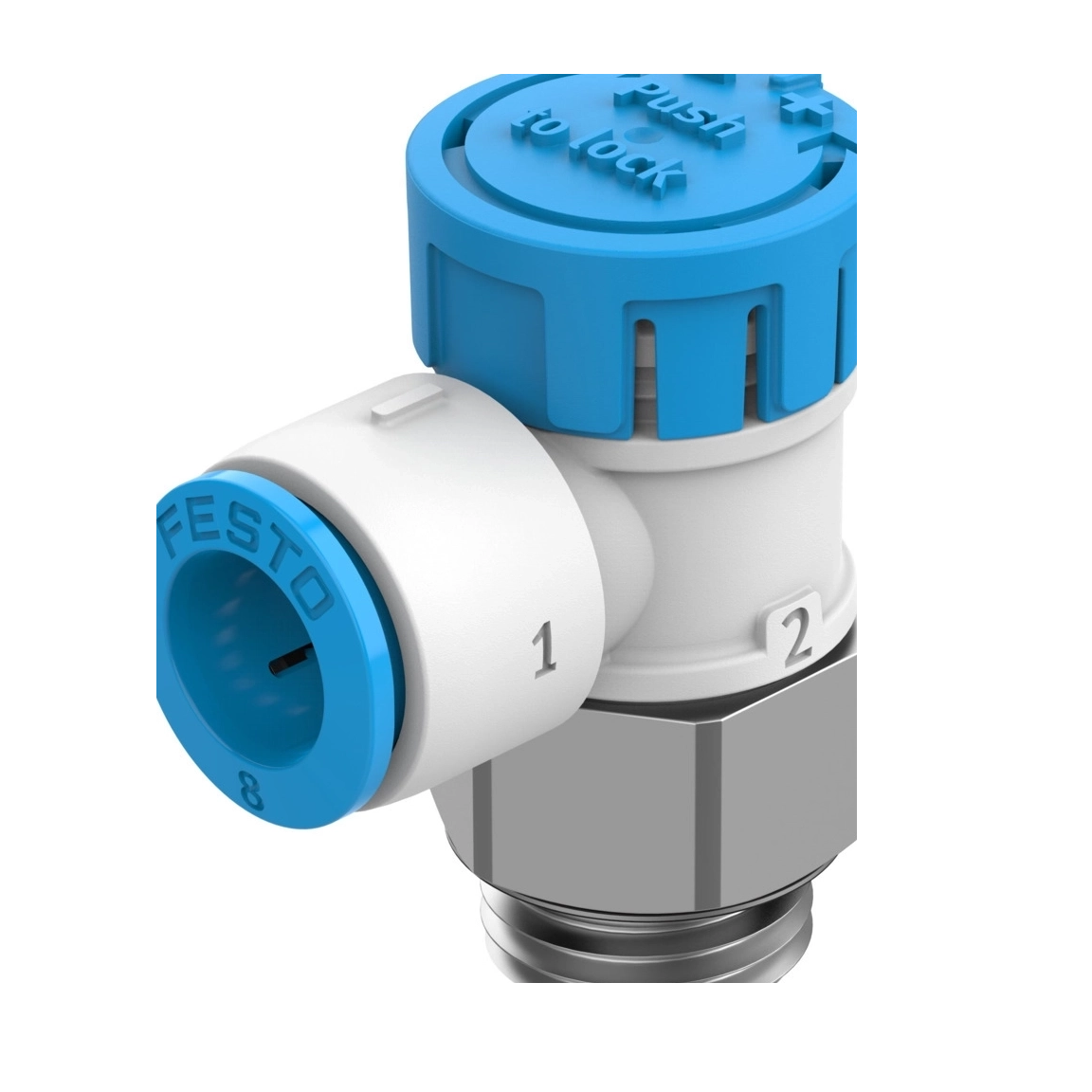

VFOE-LE-T-G14-Q8
FESTO
8068729
| Availability: | |
|---|---|
| Quantity: | |
8068729
VFOE-LE-T-G14-Q8
Valve functionExhaust air one-way flow control function
Pneumatic connection, port 1QS-8
Pneumatic connection, port 2G1/4
Type of actuationManual
Adjustment componentRotary knob with detent
Type of mountingScrew-in
Standard nominal flow rate in flow control direction500 l/min
Standard nominal flow rate in blocked direction370 l/min ... 500 l/min
Ambient temperature-10 °C ... 60 °C
Material housingPBT
Explosion protectionThe information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
Mounting positionoptional
Symbol00991452
Width across flats16 mm
Rotatability360°/no continuous swivelling permissible
Operating pressure complete temperature range0.02 MPa ... 1 MPa
Operating pressure complete temperature range0.2 bar ... 10 bar
Operating pressure complete temperature range2.9 psi ... 145 psi
Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi)810 l/min
Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi)750 l/min ... 900 l/min
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium:Lubricated operation possible (in which case lubricated operation will always be required)
LABS (PWIS) conformityVDMA24364 zone III
Cleanroom classClass 4 according to ISO 14644-1
Media temperature-10 °C ... 60 °C
Max. tightening torque12 Nm
Nominal torque10 Nm
Tolerance for nominal tightening torque± 20%
Product weight16 g
Note on materialsRoHS-compliant
Material coverPBT
Material dynamic sealsHNBR
Material threaded boltGalvanised steel
Material release ringPBT
Material static sealsNBR
