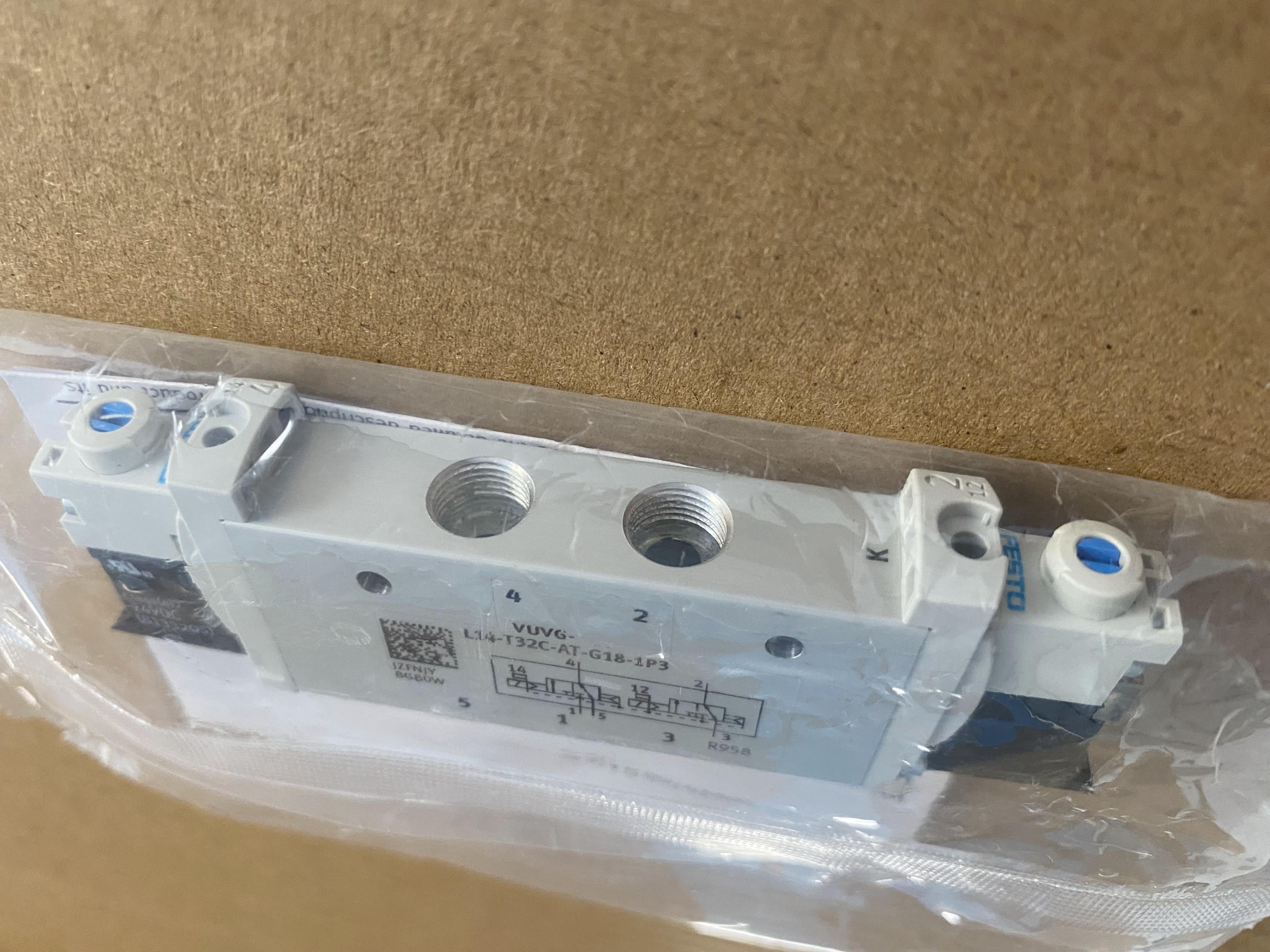

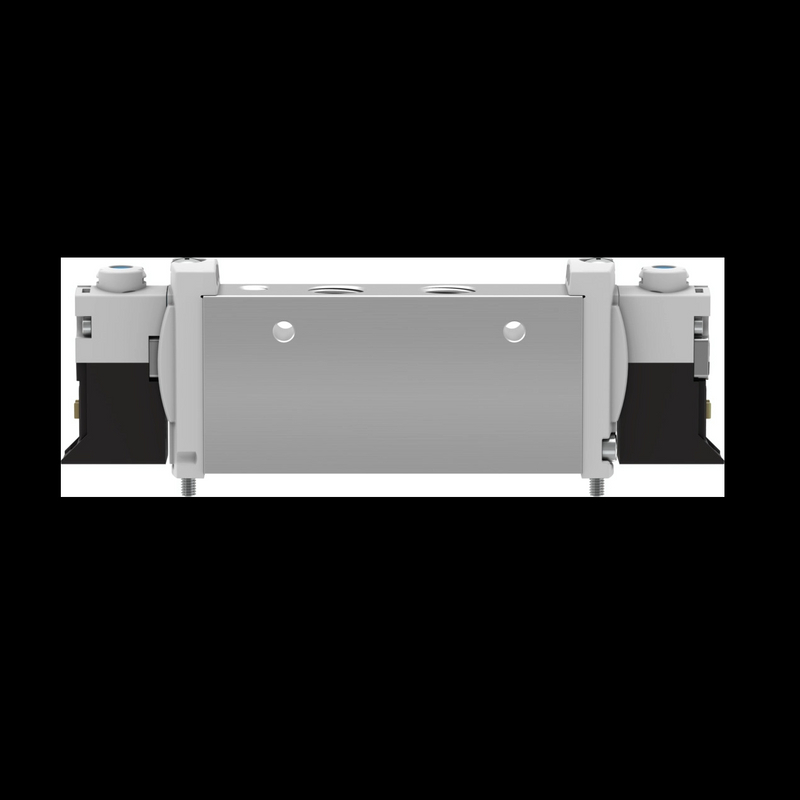

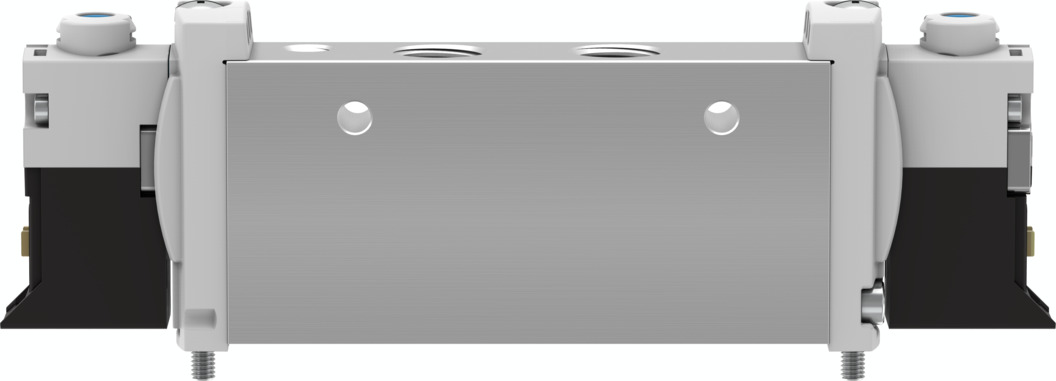

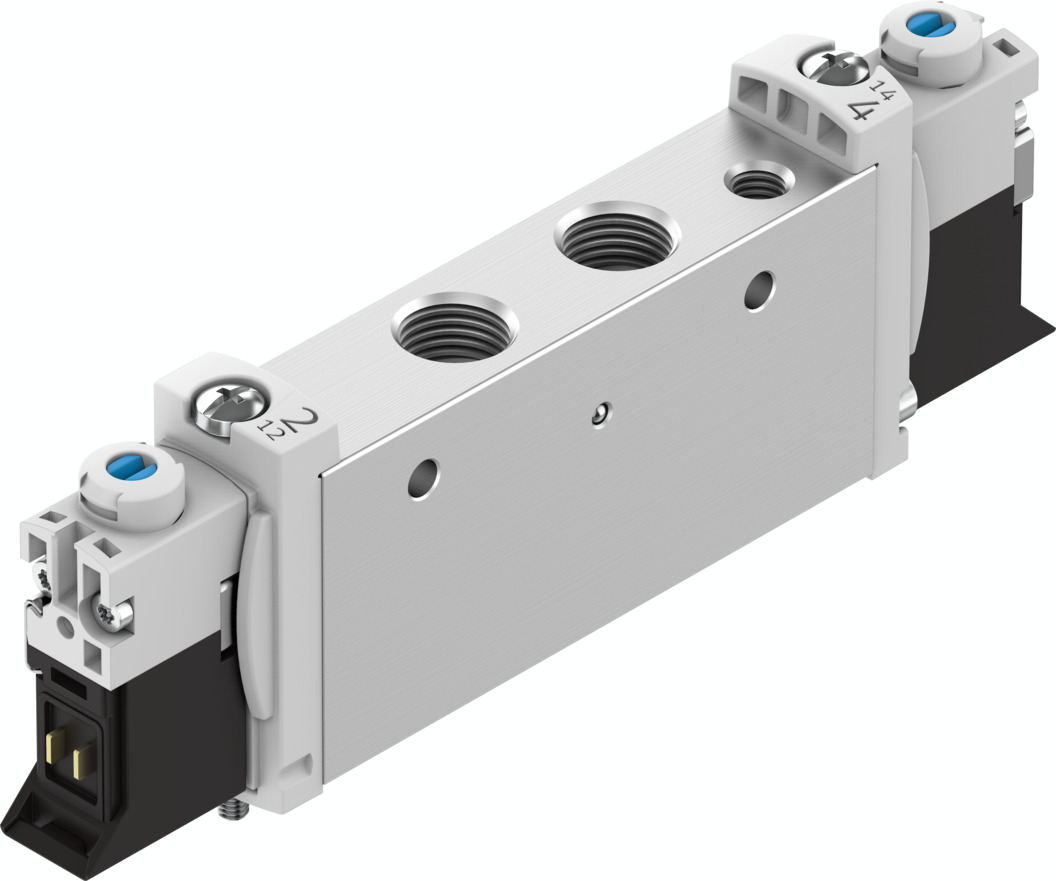

Valve function2x3/2-way, monostable, closed
Type of actuationElectric
Valve size14 mm
Standard nominal flow rate (standardised to DIN 1343)560 l/min
pneumatic working portG1/8
Operating voltage24V DC
Operating pressure0.15 MPa ... 0.8 MPa
Operating pressure1.5 bar ... 8 bar
DesignPiston gate valve
Type of resetPneumatic spring
ApprovalRCM trademark c UL us - Recognized (OL)
Degree of protectionIP40 IP65 With plug socket
Nominal size4.6 mm
Exhaust-air functionWith flow control option
Sealing principleSoft
Mounting positionoptional
Manual overrideDetenting Non-detenting Covered
Type of pilotingPilot actuated
Pilot air supplyInternal

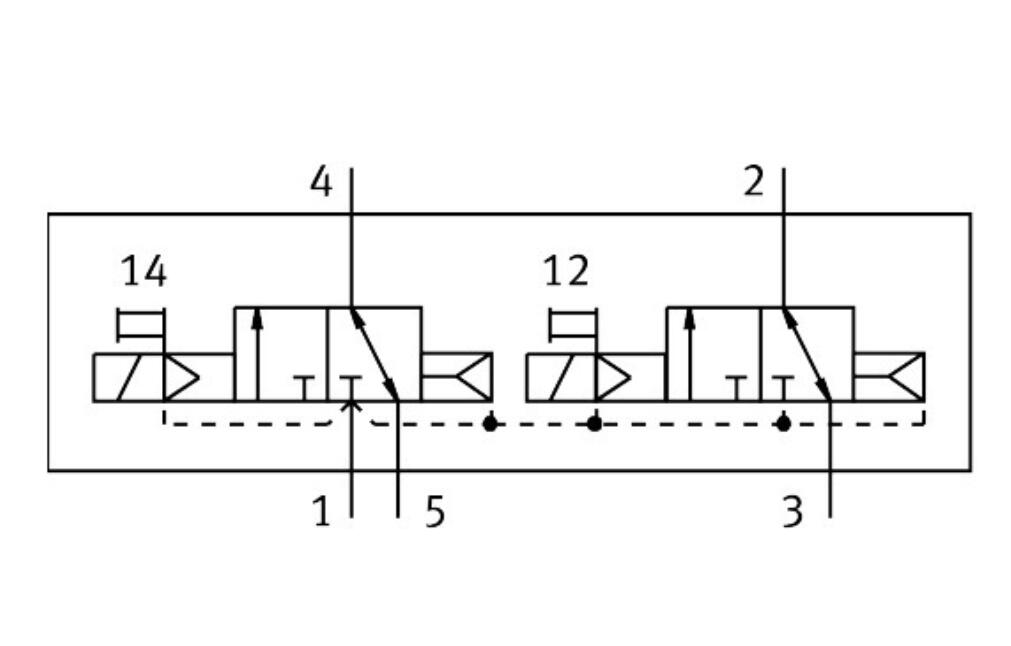

Symbol00992904
lapOverlap
Pilot pressure0.15 MPa ... 0.8 MPa
Pilot pressure1.5 bar ... 8 bar
Suitability for vacuumno
Switching time off25 ms
Switching time on9 ms
Duty cycle100%
Max. positive test pulse with 0 signal700 µs
Max. negative test pulse with 1 signal900 µs
Characteristic coil data24 V DC: 1.0 W 24 V DC: low-current phase 0.3 W, high-current phase 1.0 W
Permissible voltage fluctuations+/- 10 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Restrictions for environmental and media temperature-5 ... 50° C Without holding current reduction
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom classClass 5 according to ISO 14644-1
Media temperature-5 °C ... 60 °C
Ambient temperature-5 °C ... 60 °C
Product weight89 g
Electrical connectionVia electrical sub-base
Type of mountingEither: On manifold rail With through-hole
Pneumatic connection, port 1G1/8
Pneumatic connection, port 2G1/8
Pneumatic connection, port 3G1/8
Pneumatic connection, port 4G1/8
Pneumatic connection, port 5G1/8
Note on materialsRoHS-compliant
Material sealsHNBR NBR
Material housingWrought aluminium alloy
