Vacuum Sucker 1382277 Vasb-100-1/4-Si-B Original Stock

Product specifications and models are not all uploaded, if necessary, you can contact the online personnel.   Look forward to hearing from you  thank you.

VASB-100-1/4-SI-B

1382277

Technical Data

• Height compensator for suction cup15.5 mm

• Nominal size4 mm

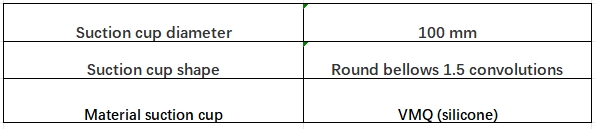

• Suction cup diameter100 mm

• Suction cup volume128 cm³

• Position of connectionTop

• Mounting positionoptional

• Symbol00991485

• Suction cup shapeRound bellows 1.5 convolutions

• Operating pressure-0.095 MPa ... 0 MPa

• Operating pressure-0.95 bar ... 0 bar

• Operating pressure-13.775 psi ... 0 psi

• Nominal operating pressure-0.07 MPa

• Nominal operating pressure-0.7 bar

• Nominal operating pressure-10.15 psi

• Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]

• Corrosion resistance class CRC2 - Moderate corrosion stress

• LABS (PWIS) conformityVDMA24364 zone III

• Suitable for use with foodSee supplementary material information

• Ambient temperature-40 °C ... 200 °C

• Holding force at nominal operating pressure395 N

• Product weight132 g

• Type of mountingVia vacuum port

• Vacuum connectionG1/4

• ColourTransparent

• Shore hardness60 +/- 5

• Material screwed plugWrought aluminium alloy

• Note on materialsRoHS-compliant

• Material suction cupVMQ (silicone)
