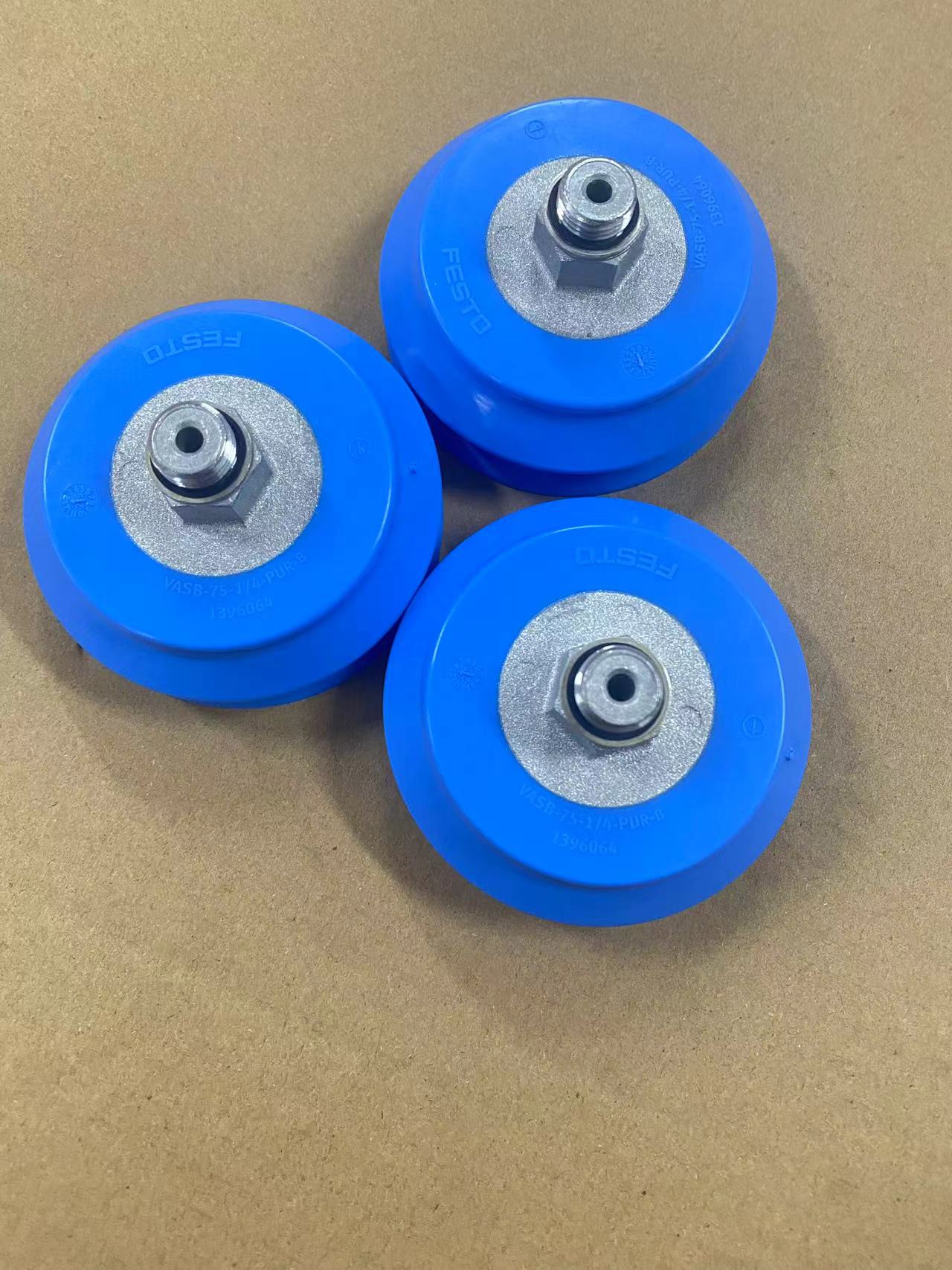

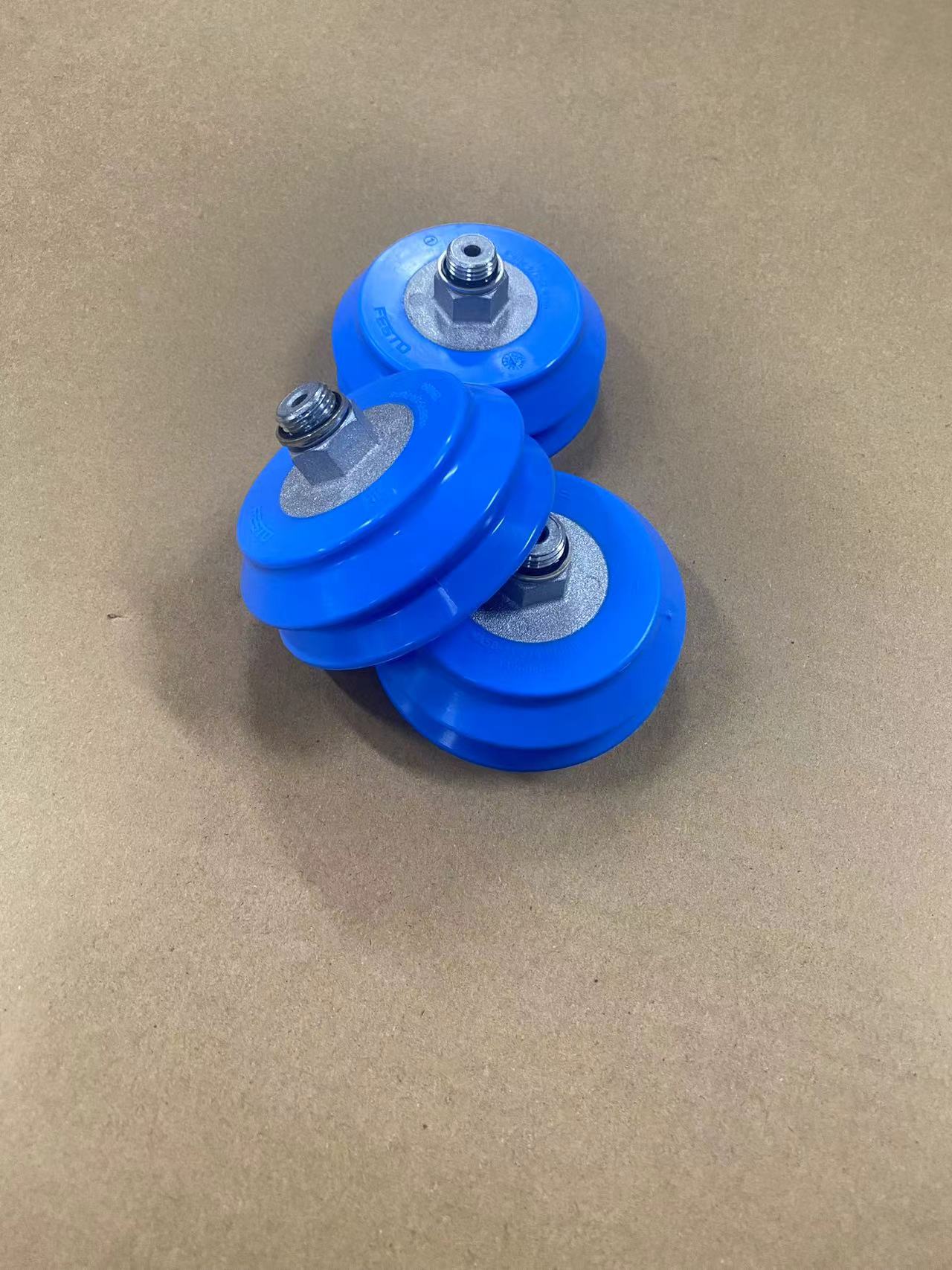

Vacuum Sucker 1396064 Vasb-75-1/4-PUR-B Original Stock

VASB-75-1/4-PUR-B

1396064

Technical Data

• Height compensator for suction cup15.5 mm

• Nominal size4 mm

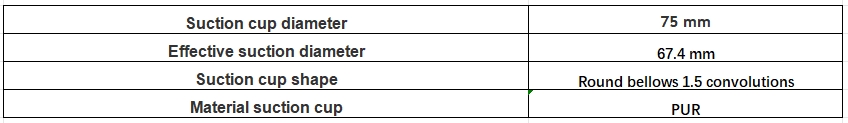

• Suction cup diameter75 mm

• Suction cup volume65.5 cm³

• Effective suction diameter67.4 mm

• Position of connectionTop

• Mounting positionoptional

• Symbol00991485

• Suction cup shapeRound bellows 1.5 convolutions

• Operating pressure-0.095 MPa ... 0 MPa

• Operating pressure-0.95 bar ... 0 bar

• Operating pressure-13.775 psi ... 0 psi

• Nominal operating pressure-0.07 MPa

• Nominal operating pressure-0.7 bar

• Nominal operating pressure-10.15 psi

• Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]

• Corrosion resistance class CRC2 - Moderate corrosion stress

• LABS (PWIS) conformityVDMA24364-A1-L

• Ambient temperature-20 °C ... 60 °C

• Holding force at nominal operating pressure250 N

• Product weight90 g

• Type of mountingVia vacuum port

• Vacuum connectionG1/4

• ColourBlue

• Shore hardness60 +/- 5

• Material screwed plugDie-cast zinc

• Note on materialsRoHS-compliant

• Material suction cupPUR
