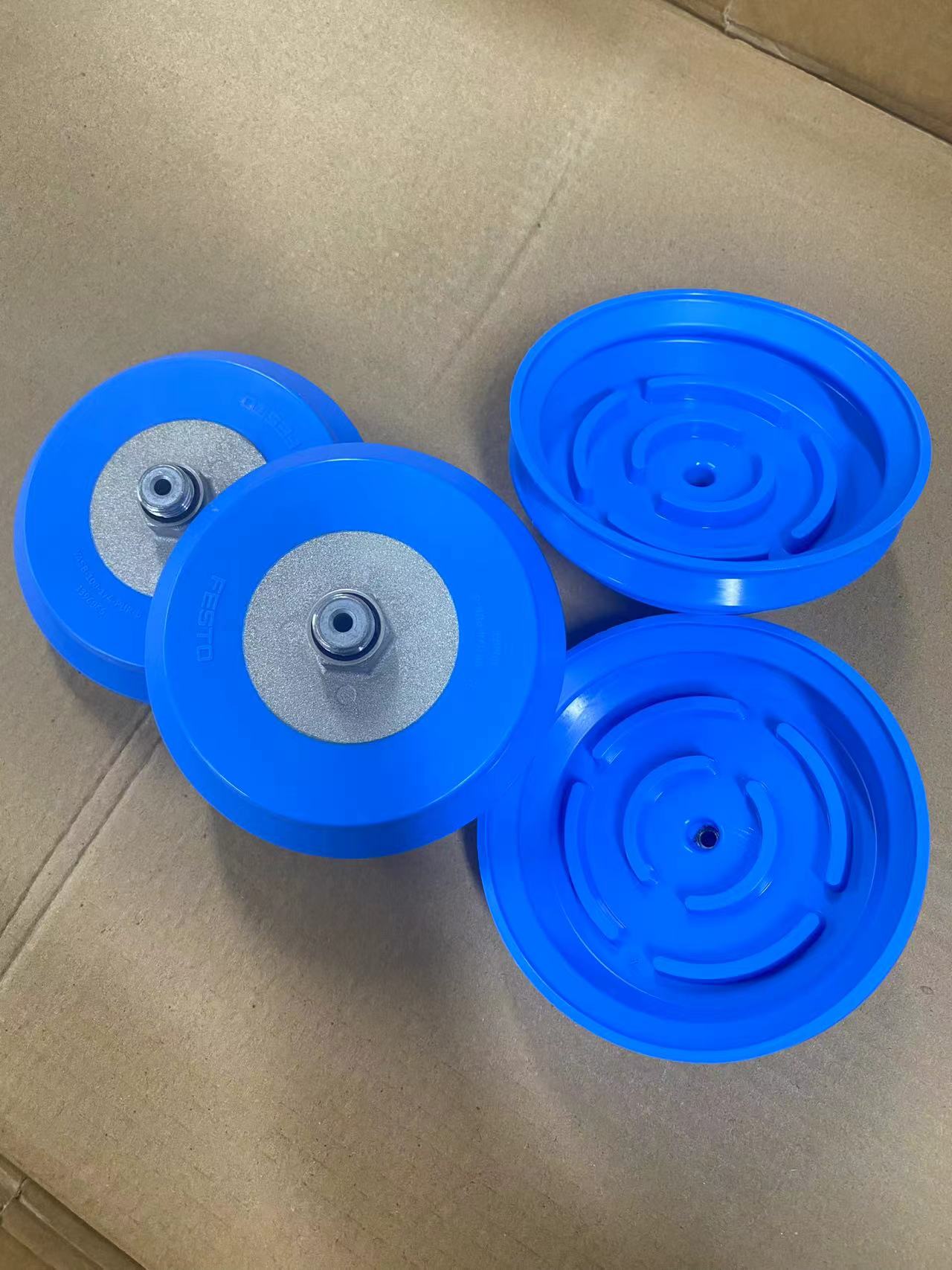

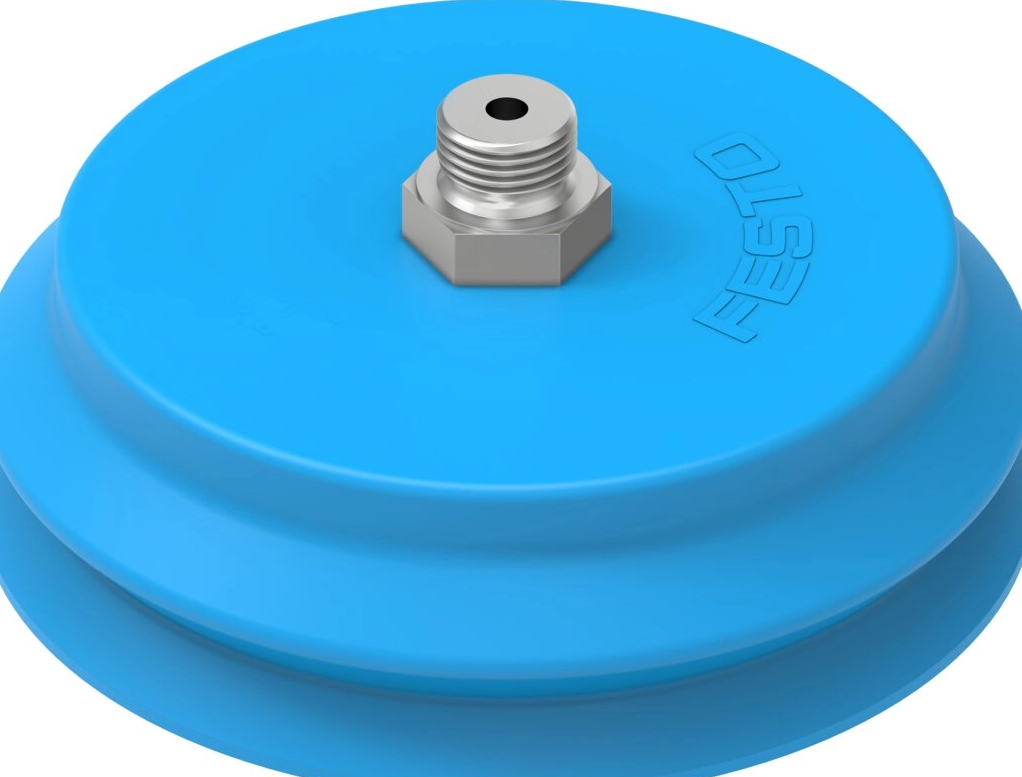

Vacuum Sucker 1396066 Vasb-100-1/4-PUR-B Original Stock

Height compensator for suction cup15.5 mm

Nominal size4 mm

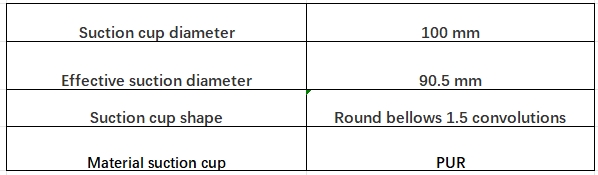

Suction cup diameter100 mm

Suction cup volume128 cm³

Effective suction diameter90.5 mm

Position of connectionTop

Mounting positionoptional

Symbol00991485

Suction cup shapeRound bellows 1.5 convolutions

Operating pressure-0.095 MPa ... 0 MPa

Operating pressure-0.95 bar ... 0 bar

Operating pressure-13.775 psi ... 0 psi

Nominal operating pressure-0.07 MPa

Nominal operating pressure-0.7 bar

Nominal operating pressure-10.15 psi

Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-A1-L

Ambient temperature-20 °C ... 60 °C

Holding force at nominal operating pressure450 N

Product weight155 g

Type of mountingVia vacuum port

Vacuum connectionG1/4

ColourBlue

Shore hardness60 +/- 5

Material screwed plugDie-cast zinc

Note on materialsRoHS-compliant

Material suction cupPUR
