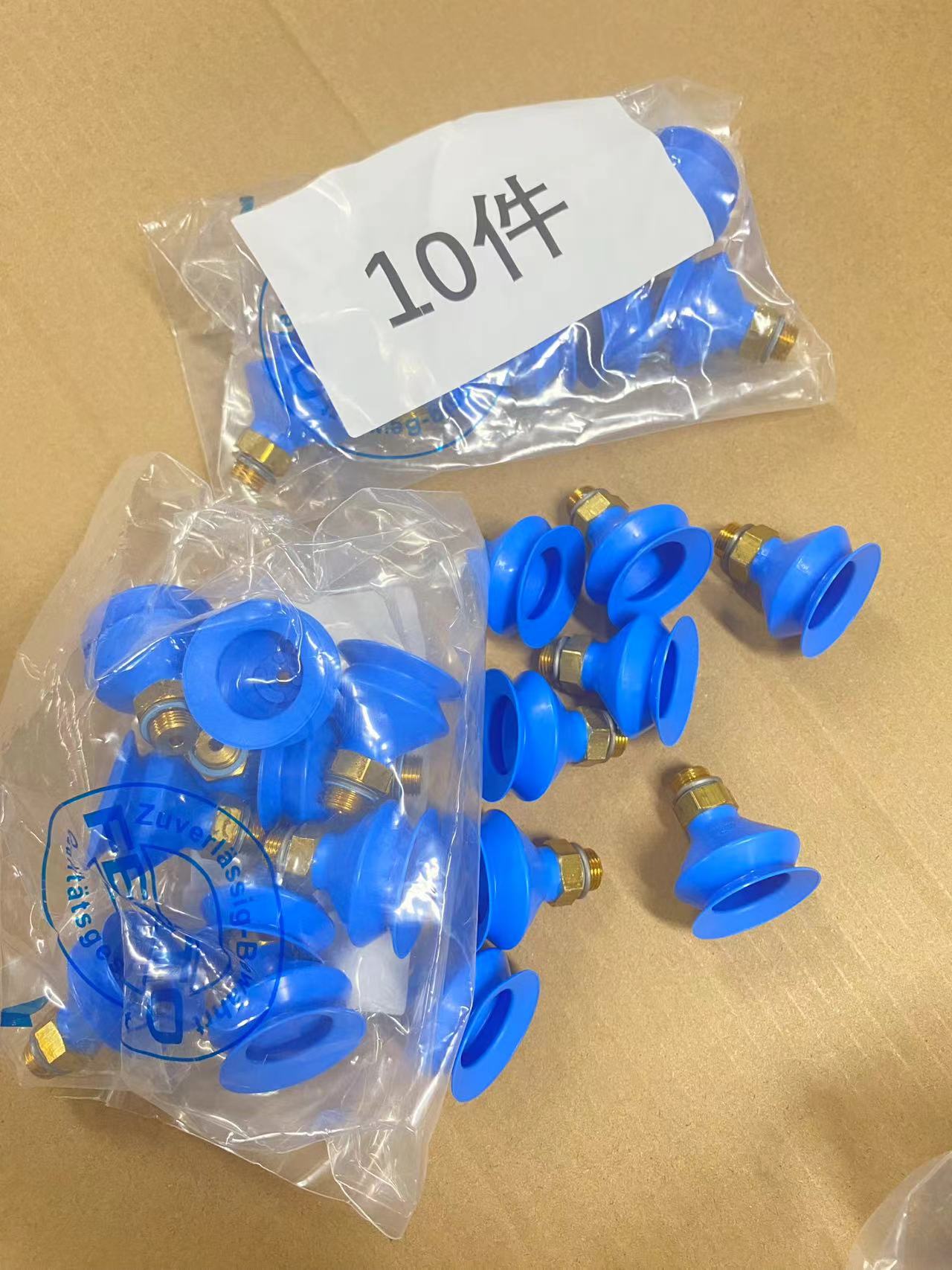

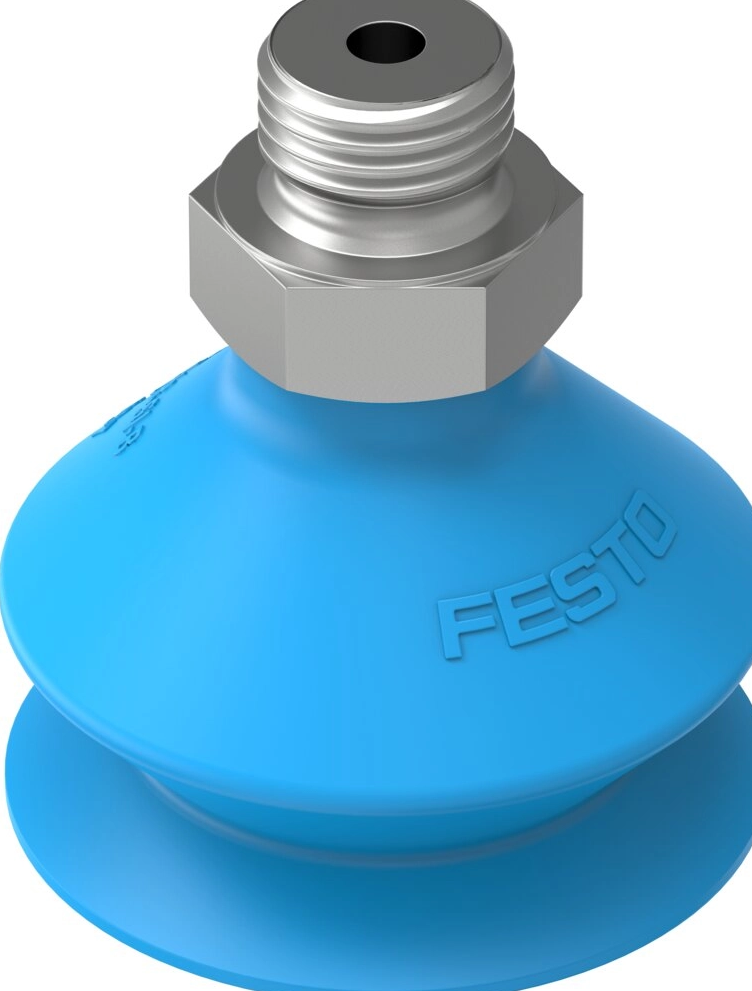

Vacuum Sucker Vasb-30-1/8-PUR-B 1395690 Original Stock

VASB-30-1/8-PUR-B

1395690

Technical Data

• Height compensator for suction cup13.9 mm

• Nominal size3 mm

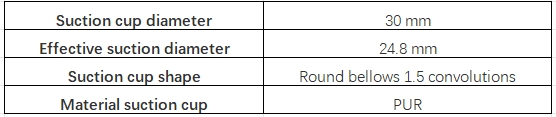

• Suction cup diameter30 mm

• Suction cup volume6.18 cm³

• Effective suction diameter24.8 mm

• Position of connectionTop

• Mounting positionoptional

• Symbol00991485

• Suction cup shapeRound bellows 1.5 convolutions

• Operating pressure-0.095 MPa ... 0 MPa

• Operating pressure-0.95 bar ... 0 bar

• Operating pressure-13.775 psi ... 0 psi

• Nominal operating pressure-0.07 MPa

• Nominal operating pressure-0.7 bar

• Nominal operating pressure-10.15 psi

• Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]

• Corrosion resistance class CRC2 - Moderate corrosion stress

• LABS (PWIS) conformityVDMA24364-A1-L

• Ambient temperature-20 °C ... 60 °C

• Holding force at nominal operating pressure34 N

• Product weight14 g

• Type of mountingVia vacuum port

• Vacuum connectionG1/8

• ColourBlue

• Shore hardness60 +/- 5

• Material screwed plugBrass

• Note on materialsRoHS-compliant

• Material suction cupPUR
