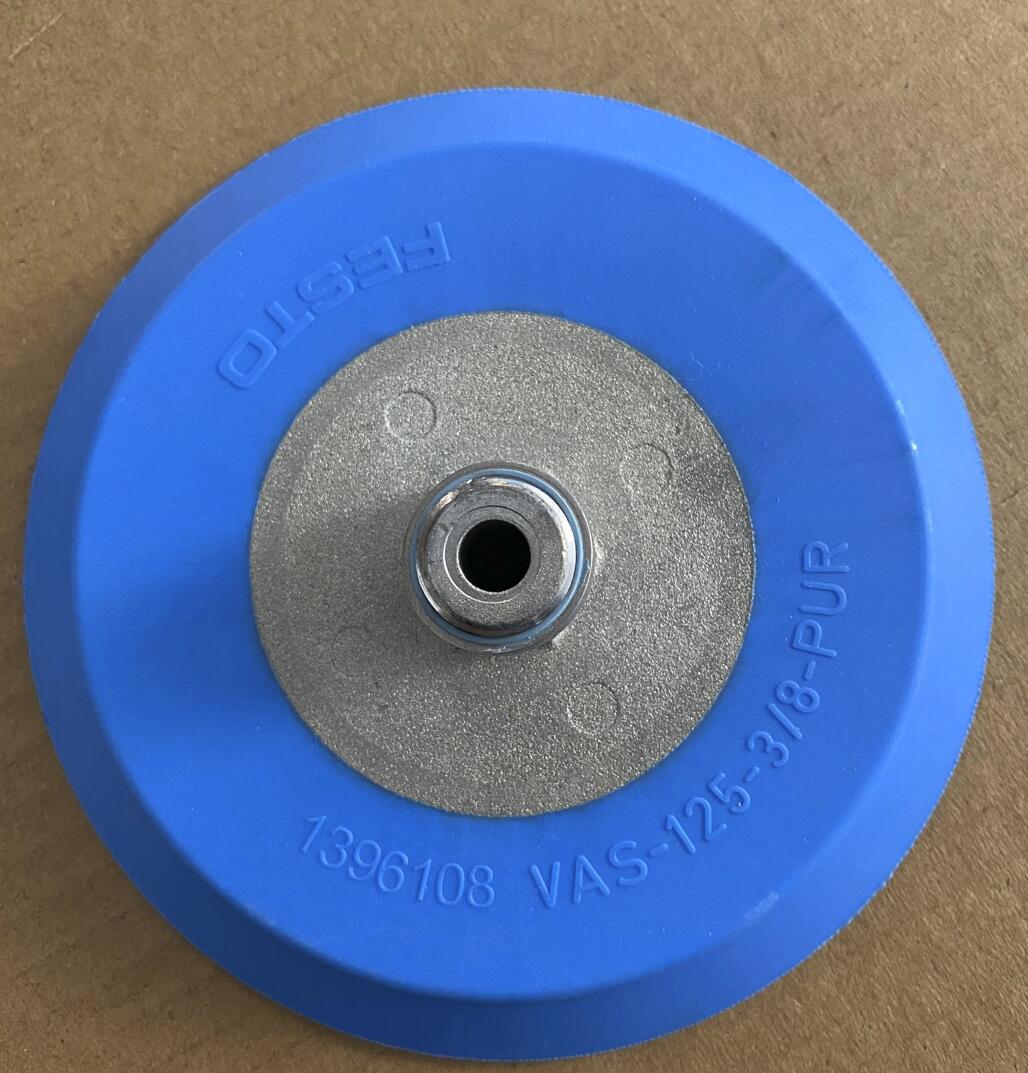

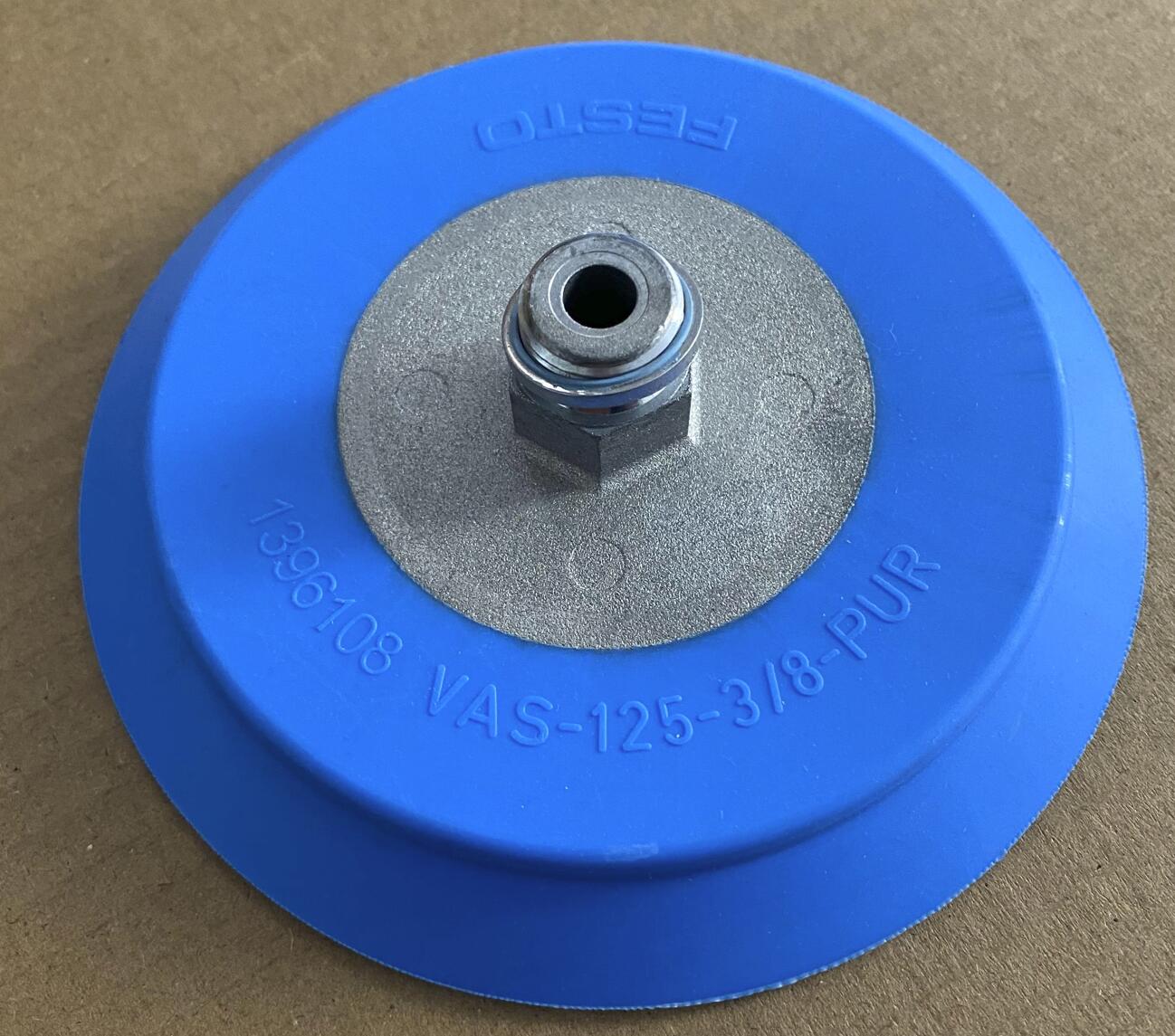

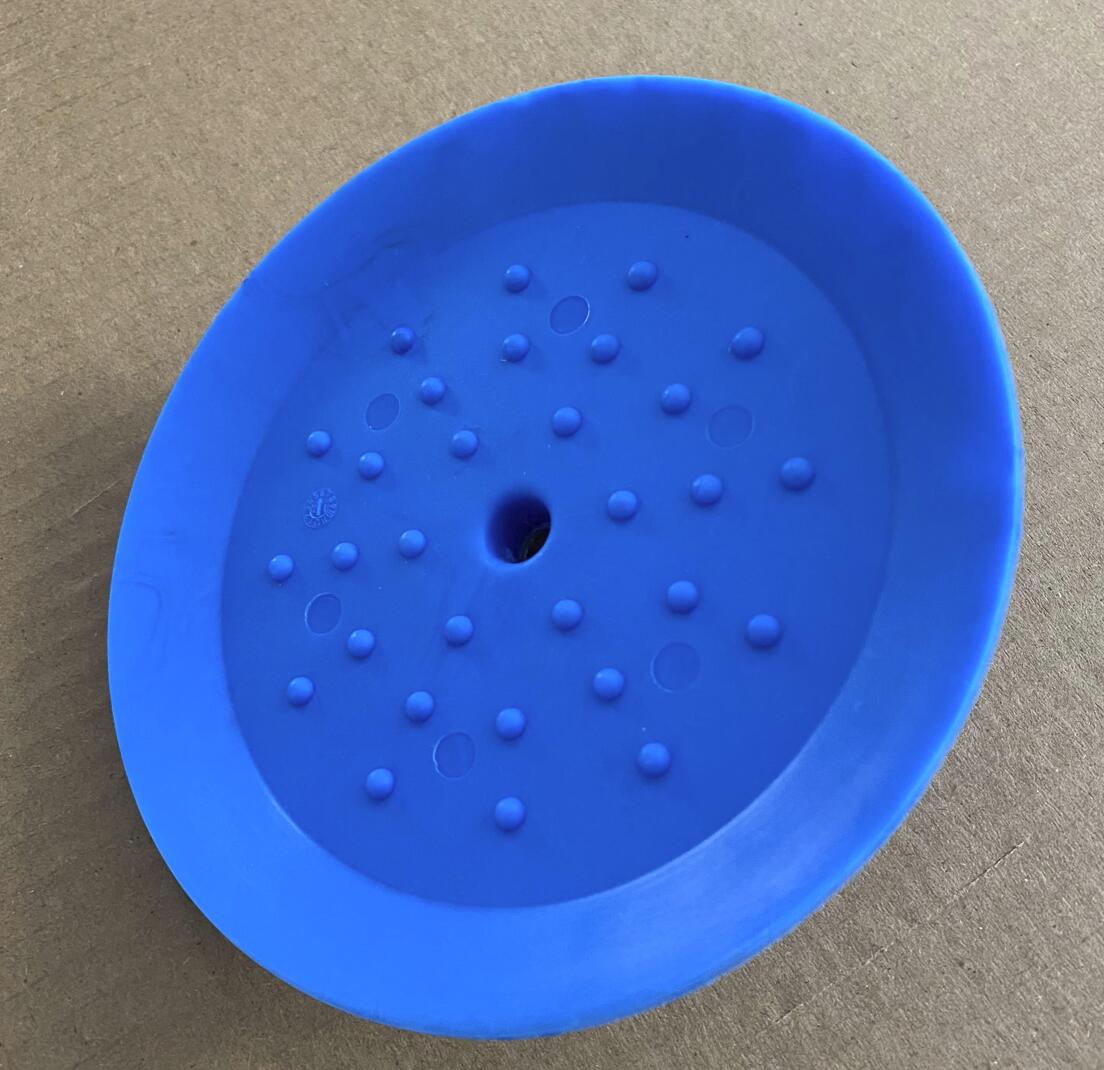

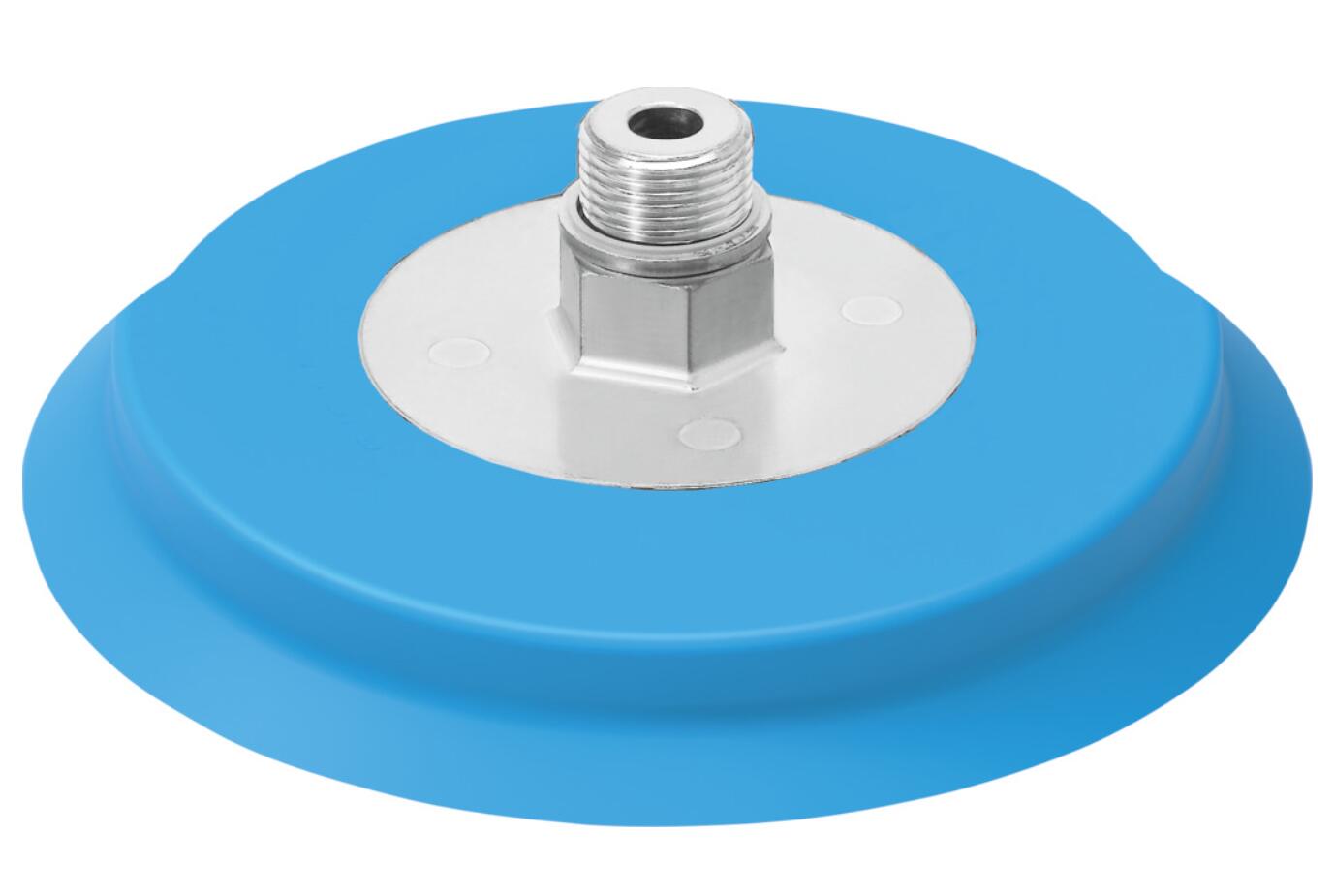

Vacuum suction cups FESTO VAS-125-3/8-PUR-B 1396108 Suction cup complete

Technical Data

• Height compensator for suction cup6 mm

• Nominal size7 mm

• Suction cup diameter125 mm

• Suction cup volume79.1 cm³

• Effective suction diameter101.8 mm

• Position of connectionTop

• Mounting positionoptional

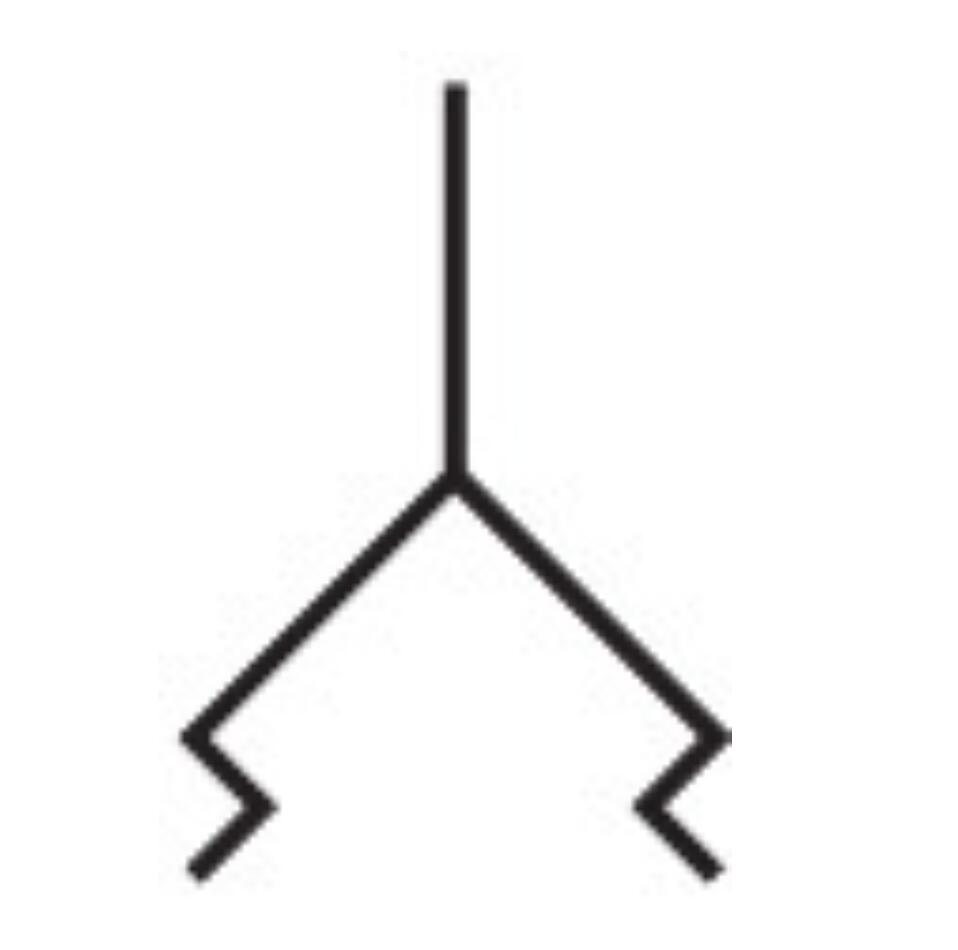

• Symbol00991485

• Suction cup shapeRound, flat

• Operating pressure-0.095 MPa ... 0 MPa

• Operating pressure-0.95 bar ... 0 bar

• Operating pressure-13.775 psi ... 0 psi

• Nominal operating pressure-0.07 MPa

• Nominal operating pressure-0.7 bar

• Nominal operating pressure-10.15 psi

• Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]

• Corrosion resistance class CRC2 - Moderate corrosion stress

• LABS (PWIS) conformityVDMA24364-A1-L

• Ambient temperature-20 °C ... 60 °C

• Holding force at nominal operating pressure570 N

• Product weight249 g

• Type of mountingVia vacuum port

• Vacuum connectionG3/8

• ColourBlue

• Shore hardness60 +/- 5

• Material screwed plugDie-cast zinc

• Note on materialsRoHS-compliant

• Material suction cupPUR
