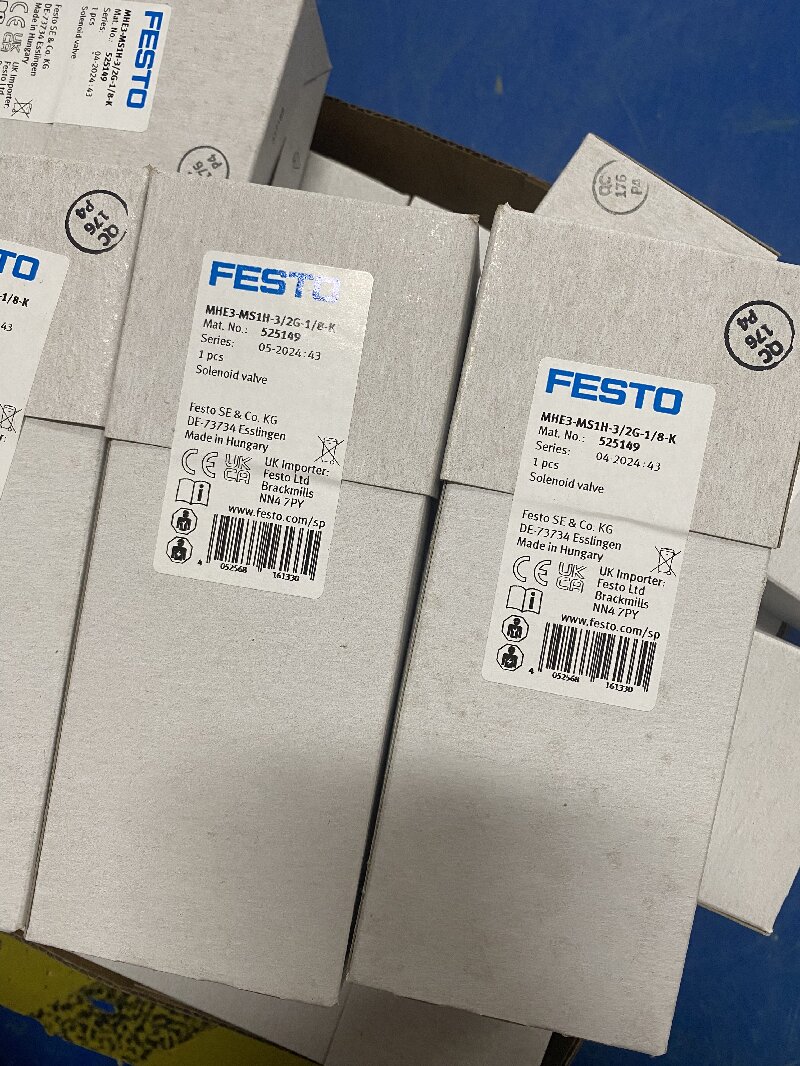

Valve Mhe3-Ms1h-3/2g-1/8-K 525149 High Speed Valve Dispensing Machinesolenoid Valve in Stock

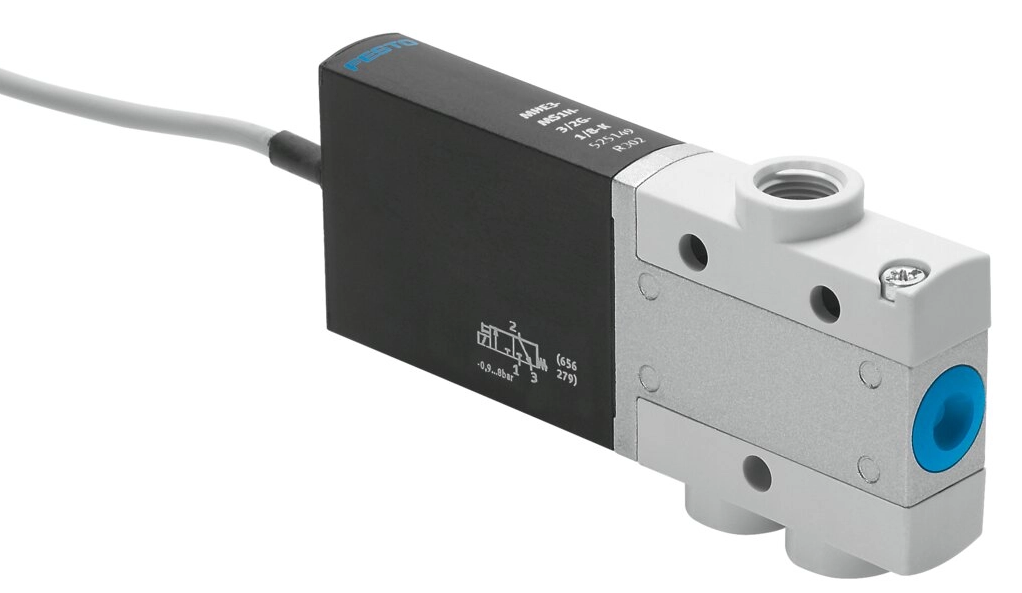

MHE3-MS1H-3/2G-1/8-K
525149

Technical Data

• Valve function :3/2-way, closed, monostable

• Type of actuation :Electric

• Construction width :14 mm

• Standard nominal flow rate (standardised to DIN 1343) :200 l/min

• pneumatic working port :G1/8

• Operating voltage :24V DC

• Operating pressure :-0.09 MPa ... 0.8 MPa

• Operating pressure :-0.9 bar ... 8 bar

• Design :Pressure-relieved poppet valve

• Type of reset :Mechanical spring

• Degree of protection :IP65

• Approval :RCM trademark c UL us - Recognized (OL)

• CE mark (see declaration of conformity) :To EU EMC Directive In accordance with EU RoHS Directive

• CE marking (see declaration of conformity) :To UK instructions for EMC To UK RoHS instructions

• Nominal size :3 mm

• Grid dimension :19 mm

• Note on grid dimension :Minimum distance between the valves is 5 mm

• Exhaust-air function :With flow control option

• Sealing principle :Soft

• Mounting position :optional

• Manual override :Non-detenting

• Type of piloting :Direct

• Flow direction :Reversible with restrictions

• Symbol : 00991308

• lap :Underlap

• Reverse polarity protection :Bipolar

• Additional functions :Spark arresting Holding current reduction Protective circuit

• Operating pressure, reversible :-0.09 MPa ... 0.1 MPa

• Operating pressure, reversible :-0.9 bar ... 1 bar

• Operating pressure, reversible :-13.05 psi ... 14.5 psi

• Max. switching frequency :280 Hz

• Switching time off :2.8 ms

• Switching time on :2.3 ms

• Tolerance switching time off :+10%/-50%

• Tolerance switching time on :+10%/-30%

• Switching time dispersion from 1 Hz :0.2 ms

• Duty cycle :100%

• Characteristic coil data :24 V DC: low-current phase 1.6 W, high-current phase 6.5 W

• Permissible voltage fluctuations :+/- 10 %

• Operating medium :Compressed air to ISO 8573-1:2010 [7:4:4]

• Note on operating and pilot medium :Lubricated operation possible (in which case lubricated operation will always be required)

• Vibration resistance :Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

• Restrictions for environmental and media temperature :As a function of switching frequency (see graph)

• Shock resistance :Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27

• Corrosion resistance class CRC :2 - Moderate corrosion stress

• LABS (PWIS) conformity :VDMA24364-B1/B2-L

• Cleanroom class :Class 6 according to ISO 14644-1

• Media temperature :-5 °C ... 60 °C

• Ambient temperature :-5 °C ... 60 °C

• Product weight :120 g

• Electrical connection :Cable

• Cable length :2.5 m

• Type of mounting :With through-hole

• Pneumatic connection, port 1 :G1/8

• Pneumatic connection, port 2 :G1/8

• Pneumatic connection, port 3 :G1/8

• Note on materials :RoHS-compliant

• Material seals :HNBR NBR

• Material housing :Die-cast zinc, coated

• Material cable sheath :PUR

• Material screws :Galvanised steel
