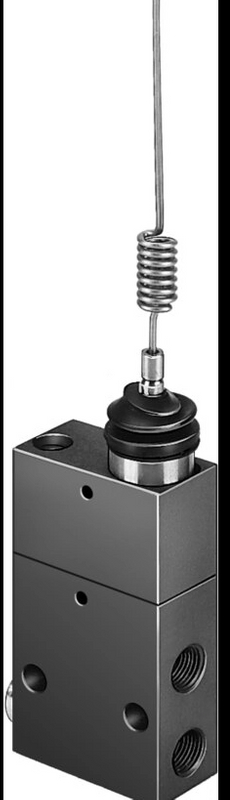

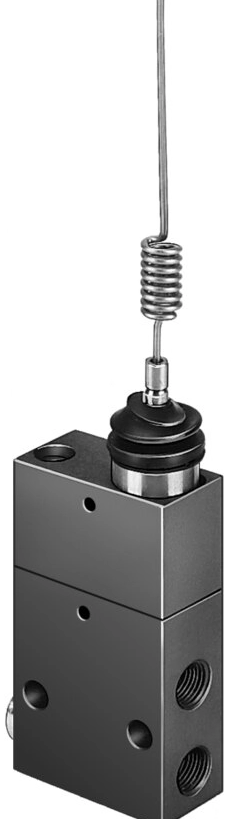

Whisker Valve Spring Tentacle Valve Fvs-3-1/8 3876 Pneumatic Control Valve

FVS-3-1/8

3876

Technical Data

• Valve function :3/2-way, closed, monostable

• Type of actuation ;Mechanical

• Standard nominal flow rate (standardised to DIN 1343) :146 l/min

• pneumatic working port :G1/8

• Operating pressure :0.35 MPa ... 0.8 MPa

• Operating pressure :3.5 bar ... 8 bar

• Design : Poppet seat

• Type of reset :Mechanical spring

• Nominal size :3.5 mm

• Exhaust-air function :With flow control option

• Sealing principle :Soft

• Mounting position: optional

• Type of piloting :Pilot actuated

• Pilot air supply :Internal

• Flow direction :Non-reversible

• Symbol :00991119

• Pilot medium :Compressed air to ISO 8573-1:2010 [-:-:-]

• Note on forced dynamization :Switching frequency min. 1/year

• Operating medium :Compressed air to ISO 8573-1:2010 [-:-:-]

• Note on operating and pilot medium :Lubricated operation possible (in which case lubricated operation will always be required)

• Corrosion resistance class CRC :2 - Moderate corrosion stress

• LABS (PWIS) conformity ;VDMA24364-B1/B2-L

• Media temperature :-10 °C ... 60 °C

• Ambient temperature :-10 °C ... 60 °C

• Product weight :130 g

• Type of mounting : With through-hole

• Pneumatic connection, port 1 :G1/8

• Pneumatic connection, port 2 :G1/8

• Pneumatic connection, port 3 :G1/8

• Note on materials :RoHS-compliant

• Material seals :NBR

• Material housing  :Aluminium Anodised
