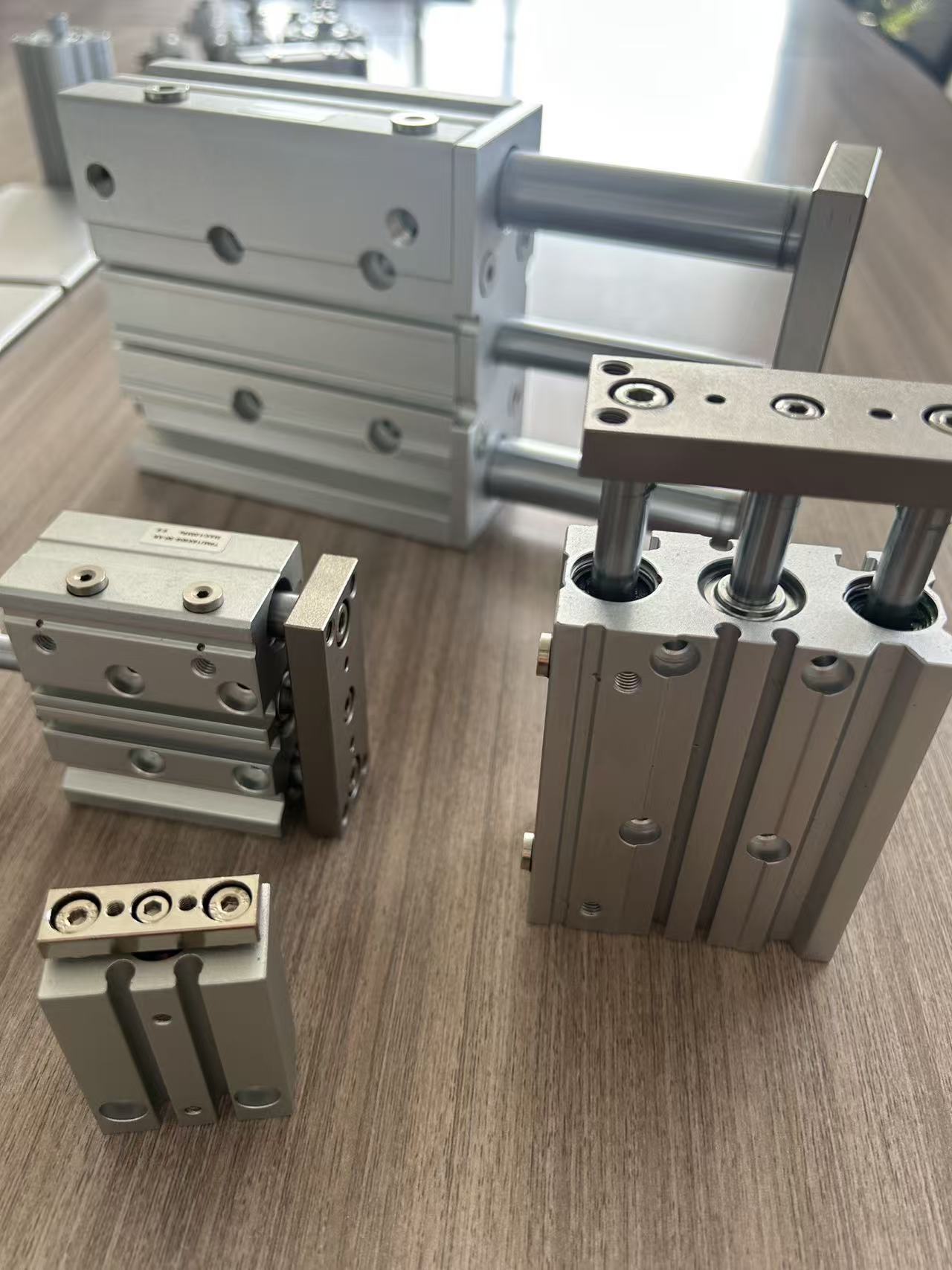

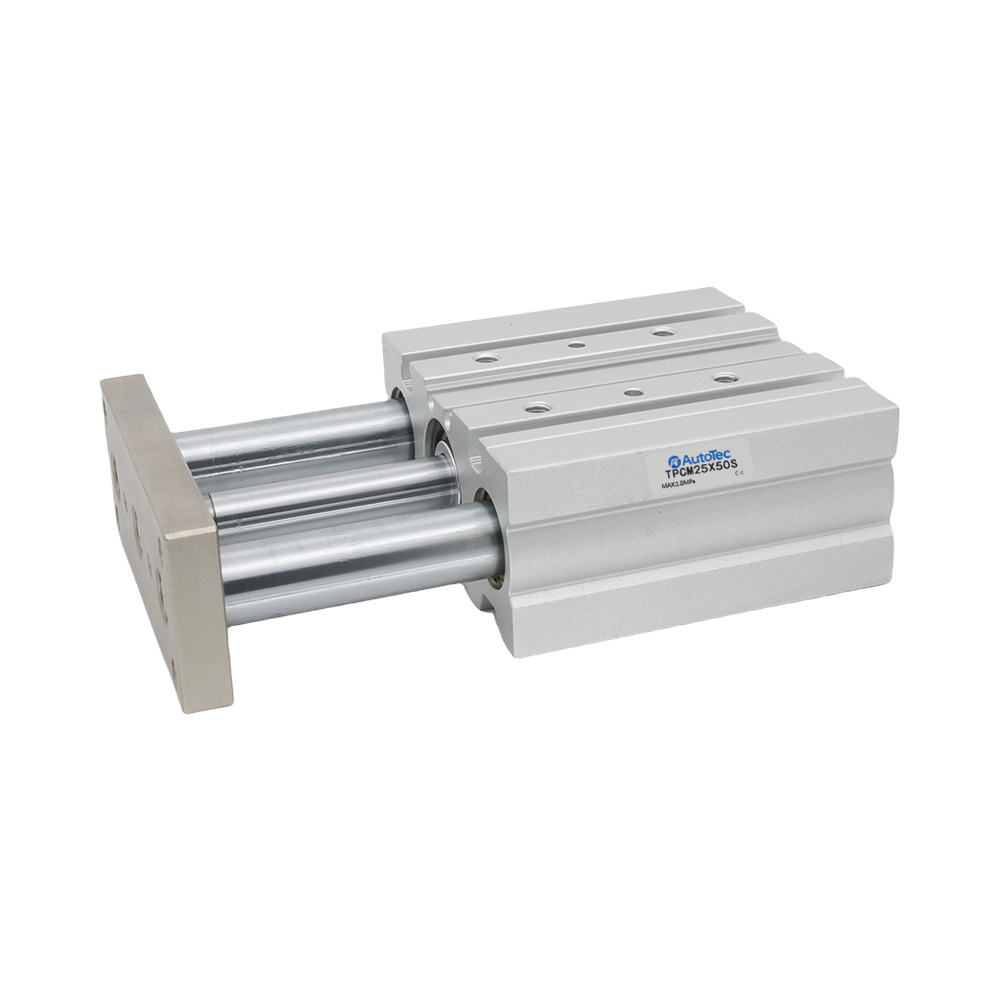

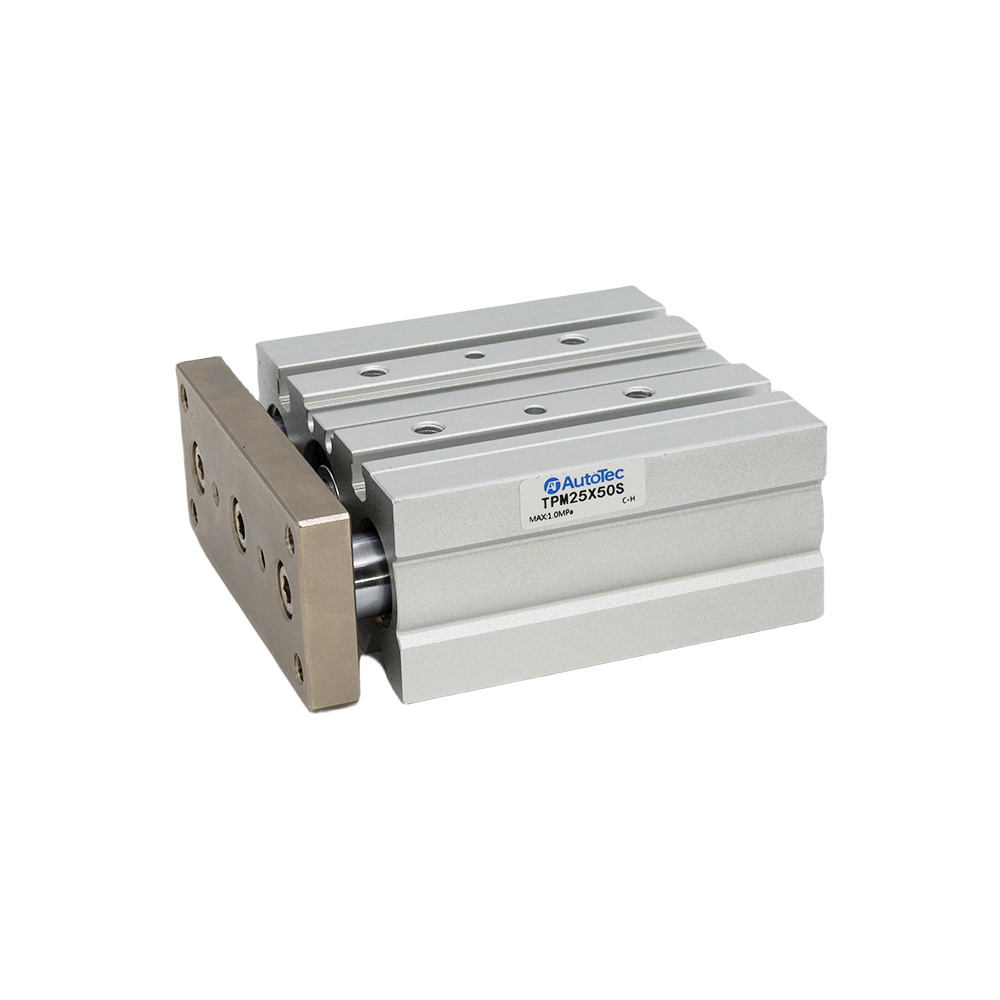

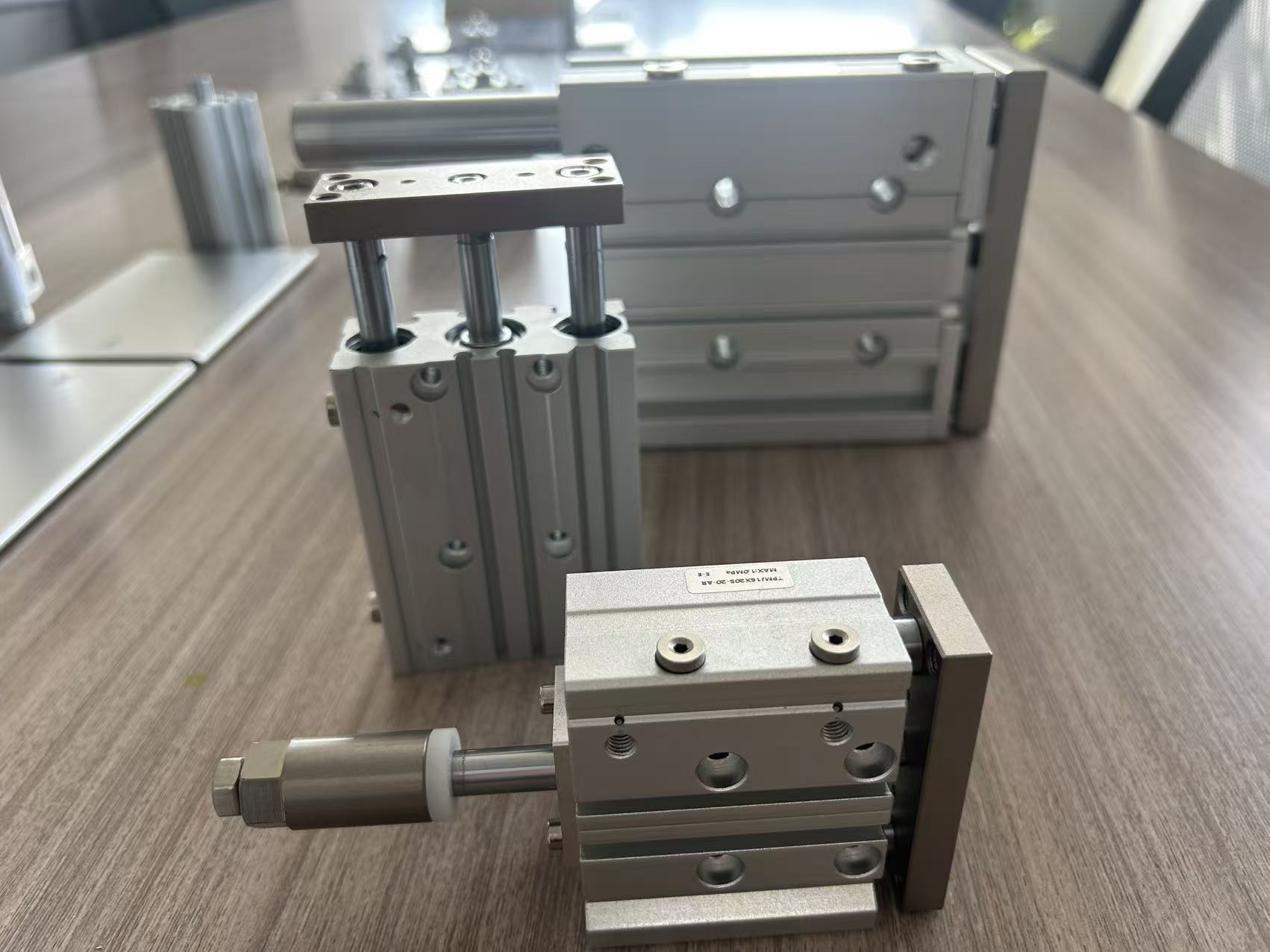

Custom TPM Series Three-Axis Guided Pneumatic Cylinder Airtec SMC Compatible
Custom TPM Series Three-Axis Guided Pneumatic Cylinder Airtec SMC Compatible
Custom TPM Series Three-Axis Guided Pneumatic Cylinder Airtec SMC Compatible
Custom TPM Series Three-Axis Guided Pneumatic Cylinder Airtec SMC Compatible
Custom TPM Series Three-Axis Guided Pneumatic Cylinder Airtec SMC Compatible
Custom TPM Series Three-Axis Guided Pneumatic Cylinder Airtec SMC Compatible
Custom TPM Series Three-Axis Guided Pneumatic Cylinder Airtec SMC Compatible
Custom TPM Series Three-Axis Guided Pneumatic Cylinder Airtec SMC Compatible
Custom TPM Series Three-Axis Guided Pneumatic Cylinder Airtec SMC Compatible
Custom TPM Series Three-Axis Guided Pneumatic Cylinder Airtec SMC Compatible
- Three-axis guided structure for stable linear motion.
- Low starting pressure below 0.05 MPa.
- Guide rod and bearing clearance below 0.04 mm.
- Small end-plate rotation angle for improved positioning stability.
- Strong side-load resistance for guided motion applications.
- Sliding bearing structure designed to cover many high-strength and high-precision application requirements.
- Helps reduce material codes and simplify design selection for equipment manufacturers.
- Available in bore sizes from 6 mm to 100 mm.
- Custom profiles, bore, stroke and mounting options can be reviewed according to project requirements.

  • TPM

  • AutoTec

  • TPM

  • Custom Series

  • Pneumatic Cylinders Low-Friction Pneumatic Cylinders

  • Pneumatic Components

库存： 0
Inquire
Add to Basket

Bore Size (mm)

12

16

20

25

32

40

50

63

Acting Type

Double Acting

Working Medium

Air, filtered through 40 μm or finer filtration

Proof Pressure

1.5 MPa

Max. Operating Pressure

1.0 MPa

Min. Operating Pressure

0.06 MPa

0.05 MPa

Ambient and Operating Temperature

-10–70°C, no freezing

Piston Speed

30–500 mm/s

Cushioning

Air Cushion on Both Ends

Stroke Length Tolerance

5

Selected Airtec-type and SMC-type profile structures can be reviewed according to project requirements, with final dimensions and application suitability confirmed per inquiry.

The TPM Series Three-Axis Guided Pneumatic Cylinder is designed for stable guided motion, high rigidity and strong side-load resistance in pneumatic automation systems. With low starting pressure, small guide rod and bearing clearance, and high end-plate anti-rotation accuracy, it is suitable for applications requiring precise positioning, stable movement and compact guided cylinder performance.

Bore Size (mm)

Standard Stroke (mm)

12, 16

10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250

20, 25

20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400

32–63

25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400
