How to Choose the Right Pneumatic Cylinder for Your Automation Project

A Practical Guide for Engineers and Procurement Professionals

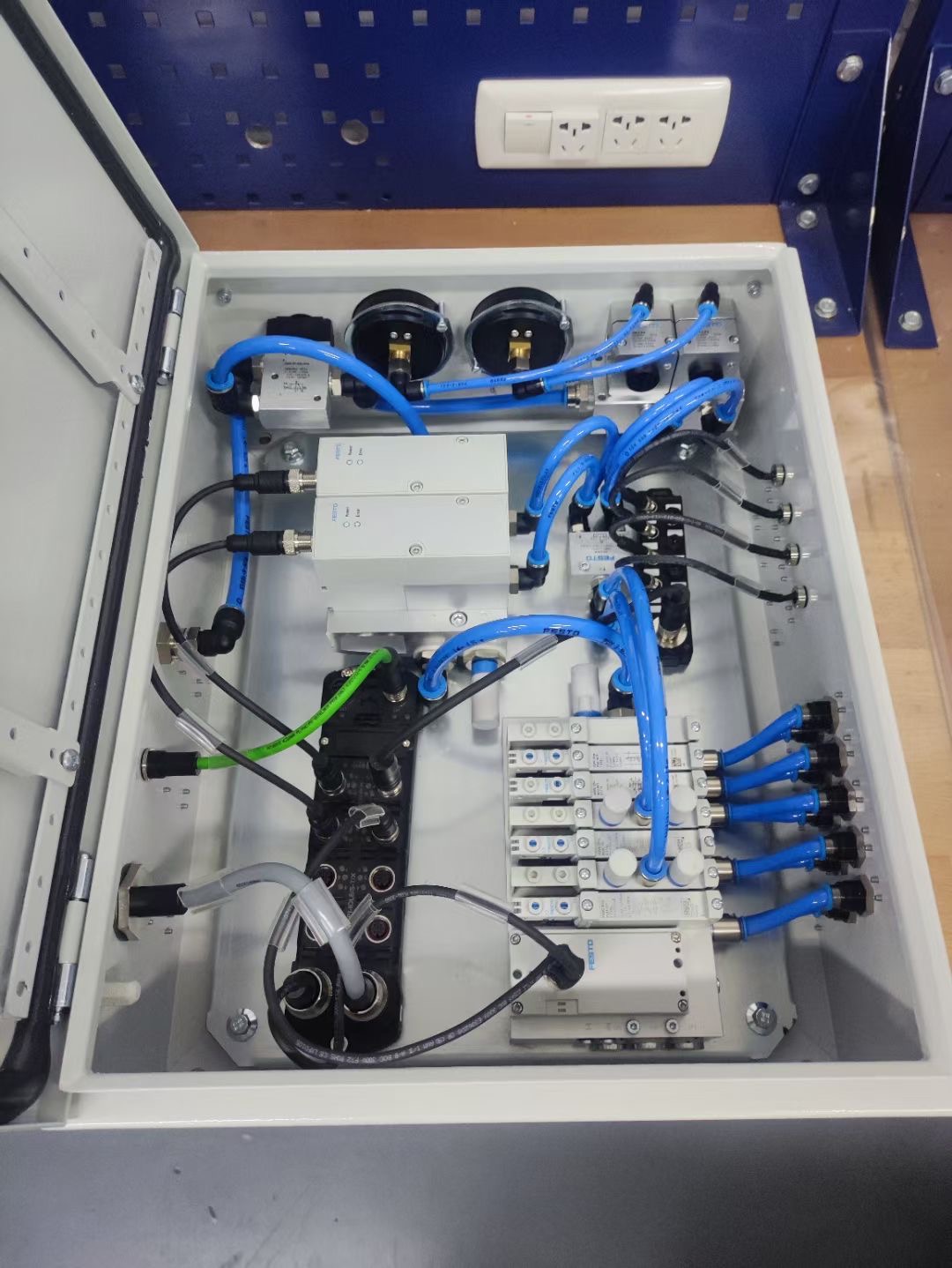

Pneumatic cylinders are the workhorses of industrial automation. Selecting the right cylinder is critical for machine performance, energy efficiency, and long-term reliability. Choose wrong, and you may face insufficient force, erratic motion, premature seal failure, or even production downtime.

This guide walks you through a step-by-step selection process, explains key parameters, and provides real-world examples. Whether you are designing a new machine or replacing a worn cylinder, these principles apply to all major brands including Festo, SMC, Airtac, and others.

1. Determine the Cylinder Type

Pneumatic cylinders are classified by their mode of operation and construction.

Recommendation: For 90% of factory automation tasks, a double-acting standard cylinder (ISO 15552) or compact cylinder (ISO 21287) is the best starting point.

2. Calculate the Required Bore Size (Force)

The bore size determines how much force the cylinder can generate. Insufficient force leads to stalling; oversized cylinders waste compressed air and increase cost.

Basic formula for double-acting cylinders:

F=P×AF=P×A

Where:

• FF = theoretical force (N)

• PP = working pressure (Pa) – typically 0.4–0.6 MPa (4–6 bar)

• AA = piston area (m²) = π×(bore/2)2π×(bore/2)2

Practical safety factor: Multiply the required load force by 1.5 to 2.0 to get the needed theoretical force. This accounts for friction, line losses, and pressure fluctuations.

Quick Reference Table (at 0.6 MPa / 6 bar)

Example: You need to push a 30 kg cart. Required force ≈ 30 kg × 9.8 = 294 N. With safety factor 1.5 → 441 N. Choose bore 40 mm (750 N) or 50 mm (1170 N). Bore 32 mm (480 N) is borderline.

3. Select the Stroke Length

Stroke is the distance the piston rod travels. Measure the actual distance needed, then add a small margin (5–10 mm) for safety.

Important considerations:

• For strokes longer than 200 mm, consider adding external guides to prevent rod bending.

• Very long strokes (>500 mm) are better handled by rodless cylinders or linear actuators.

• Standard stroke increments are usually 5, 10, 25, 50, 100, 125, 150, 200 mm etc.

4. Choose the Mounting Style

Mounting affects how the cylinder integrates into your machine. Common options:

Tip: When in doubt, use basic through-hole mounting. It is the most versatile and easiest to replace.

5. Determine the Cushioning Type

Cushioning absorbs the piston’s kinetic energy at the end of stroke, reducing noise and impact.

Recommendation: For most applications, adjustable pneumatic cushioning is sufficient. If you use Festo DSBC series, their PPS self-adjusting cushioning is a great time-saver.

6. Consider Environmental Conditions

The operating environment directly impacts material selection and seal life.

Real example: A sawmill uses standard cylinders that failed within 3 months due to wood dust. Switching to cylinders with protective covers and enhanced wipers extended life to over 2 years.

7. Position Sensing (Magnetic Switches)

Most modern cylinders have a magnet embedded in the piston. A magnetic switch (reed or electronic) mounted on the barrel detects piston position.

Selection tips:

• Reed switches: Simple, low cost, but wear out faster under high cycling.

• Electronic (solid-state) switches: More durable, faster response, suitable for high-frequency applications.

• Check the load current (e.g., 100 mA vs 500 mA) to match your PLC input.

Mounting: Cylinders have standard grooves (often C-slot or T-slot) for switches. Festo uses a C-slot that is compatible with many brands.

8. Brand Selection and Interchangeability

If you are not brand-loyal, you can often find interchangeable cylinders from different manufacturers. Many modern cylinders follow ISO standards, making replacements easy.

Interchangeability check: Compare bore, stroke, mounting hole pattern, rod thread size, and cushion type. If they match, the cylinder can be swapped without modifying the machine.

Brand recommendation:

• Festo: Excellent documentation, wide range, global support. Ideal for critical applications.

• SMC: Very reliable, cost-effective, huge market share.

• Airtac / Local brands: Budget-friendly, suitable for non-critical or low-cycle applications.

9. Real-World Selection Example

Scenario: A packaging machine needs a cylinder to push products into a carton.

• Load: 8 kg (including friction)

• Push distance: 120 mm

• Cycle rate: 20 cycles per minute

• Environment: Standard factory (some dust)

• Desired speed: 300 mm/s

Selection steps:

1. Type: Double-acting cylinder (most common).

2. Force: 8 kg × 9.8 ≈ 78 N. Safety factor 1.8 → 140 N.
   At 0.6 MPa, bore 20 mm gives ~180 N → sufficient. But to be safe with wear, choose bore 25 mm (~280 N).

3. Stroke: 120 mm → choose 125 mm standard.

4. Cushioning: Speed 300 mm/s → adjustable pneumatic cushioning recommended.

5. Mounting: Basic through-hole, front flange accessory if needed.

6. Environment: Standard seals, but add a wiper for dust protection.

7. Sensing: Add magnetic switch for end-position feedback.

Resulting model (Festo): DSBC-25-125-PPS-A (PPS self-adjusting cushioning makes life easier).

Alternative (SMC): C95-25-125-P (adjustable cushion).

10. Common Mistakes to Avoid
